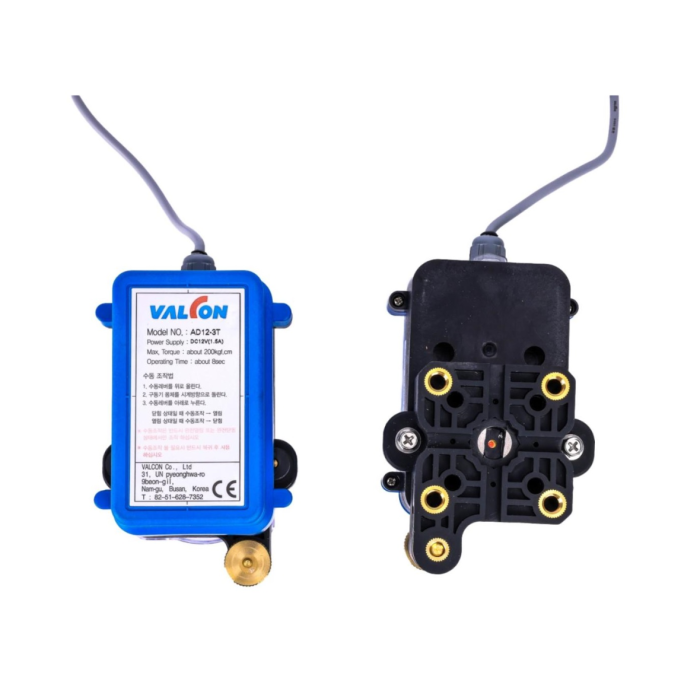

• Product name (AD12-3T)
• Brand name (VALCOM)
• Type (MOTORIZED VALVE)
• Material (VALVE)
• Size/Dimension (FLUID FLOW CONTROLLER)
• Weight (Weight)
• Usage (Usage)
• Application (Usage location)
• Color (Color)
• Feature (Feature)
• Warranty (Warranty period)
• Certification (Certification)

Features:
Designed for ball valve and butterfly valve applications.
CE and RoHS certified.
Watchdog function with open/closed indicator lamp and display window.
Manual operation capability.
IP67 rated for water and dust resistance.
Technical Specifications:
Models: AD12-3T (DC12V) and AD24-3T (DC24V)
Power Consumption: Approximately 3W in no-load operation; standby power of 0.16W (AD12-3T) and 0.25W (AD24-3T).
Torque: Maximum output of 200 kgf·cm.
Operating Time: 8 seconds for a 90° rotation.
Weight: Around 845g.
Rotation: Opens counterclockwise, closes clockwise.
Lifespan: Estimated 100,000 cycles.
Operating Environment: Indoor, -15°C to 50°C, 35-85% RH, IP67 rating.
Compatible Valves:
Suitable for ball valves (32A to 50A) and butterfly valves (50A).
Max Operating Temperature: Ball valves up to 120°C, Butterfly valves up to 90°C.
Max Operating Pressure: 10 kgf/cm² (142 PSI).
Suitable for non-corrosive liquids and gases.
Connection and Installation:
Three-wire connection for DC12V or DC24V power.
Indicator lamps (green for open, red for closed) and display window for status.
Manual lever for emergency operation.
Includes hardware for ball and butterfly valve installations.
These models are suitable for applications requiring robust and precise valve control with visual feedback on position, ideal for both ball and butterfly valve systems​
