Competitive Q-Switched and Long-Pulsed in One Platform

Offers the outstanding versatility of Q-Switched and Long-Pulsed laser indications.

Stable energy delivery and high durability are assured via the advanced dual-chamber resonator technology.

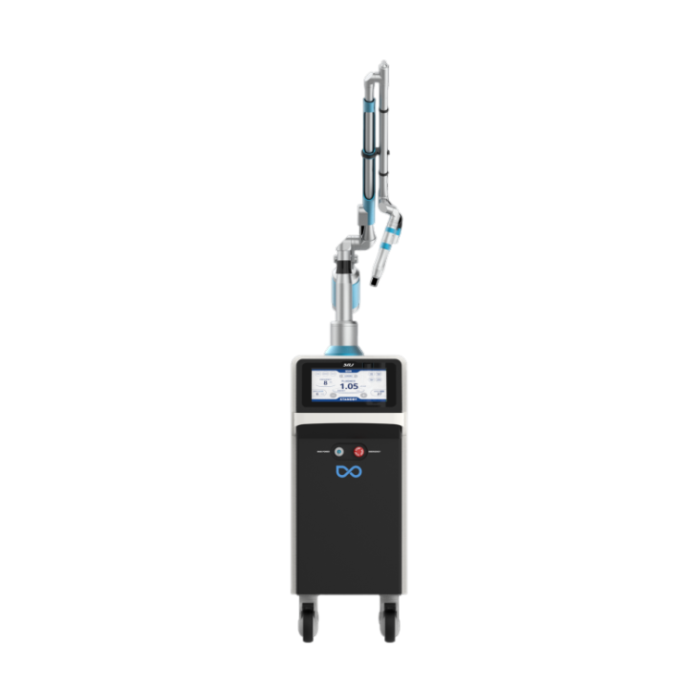

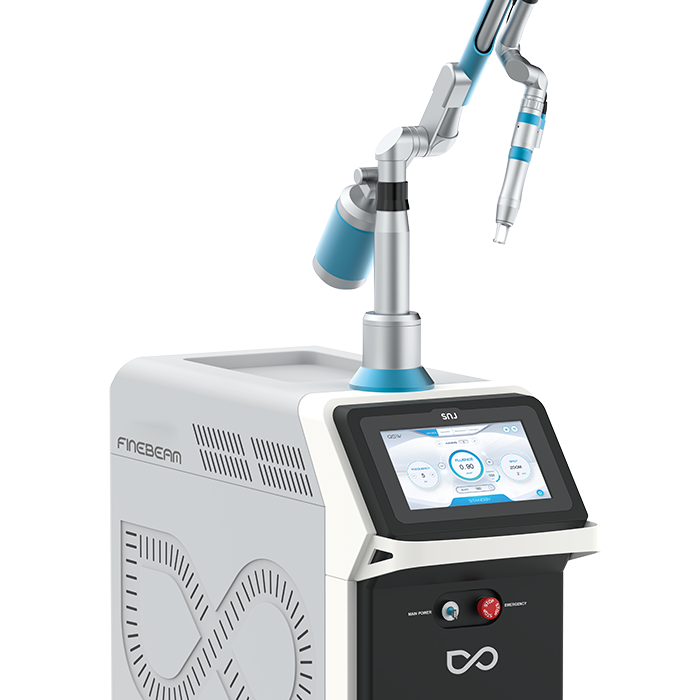

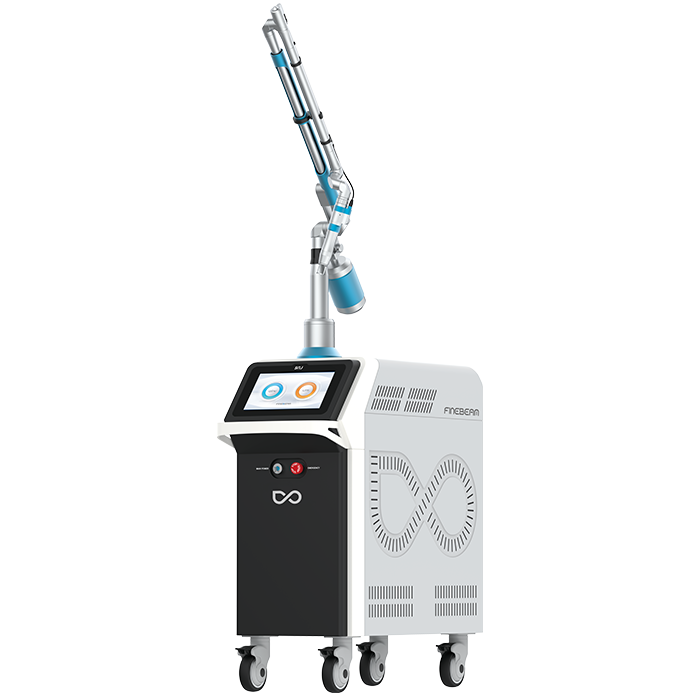

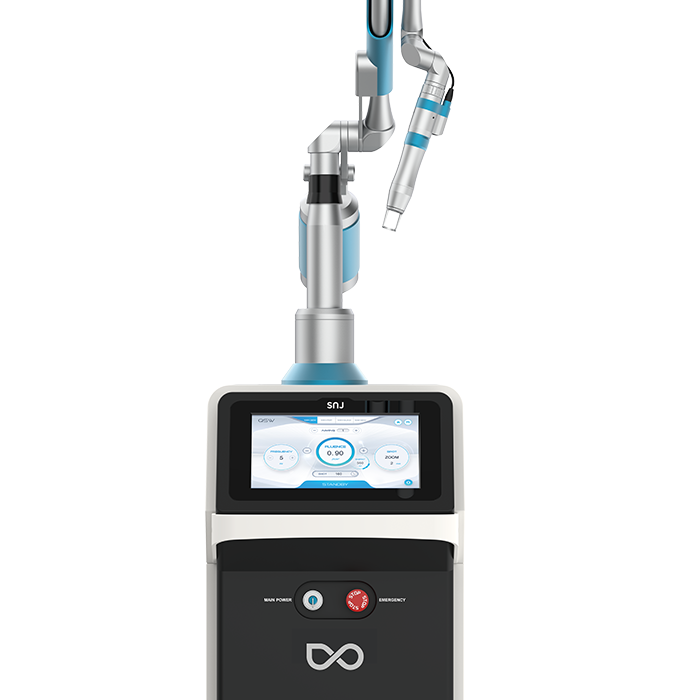

Finebeam is a more advanced Nd:YAG laser system based on quality pulse technology. There are 2 different functional modes such as Q-Switched and Long-Pulsed with each handpiece. This is the best solution for both skin rejuvenation and body treatments. It is already approved by the FDA, Medical CE, and KFDA.

[Feature]

1. Dual-mode, dual-wavelength architecture

- 1064 & 532 nm Q-Switched + Long-Pulsed Nd:YAG in one device—handles pigment, tattoos, vascular lesions, hair removal, and tightening without needing multiple machines.

- Advanced dual-chamber / active resonator design (with electro-optic Q-switch) ensures stable, high-power pulses and long-term durability.

2. High peak power & LIOB

- In combination with a dedicated MLA H/P, Finebeam can induce laser-induced optical breakdown (LIOB) in the dermis—creating microscopic cavitation zones below an intact epidermis.

- Finebeam's high stability, high output, and MLA H/P, using the same lens as Pico lasers, can provide the excellent skin-tightening effect of MLA H/P that is provided by Pico lasers.

3. PDP Mode

- The Finebeam delivers a higher maximum energy of 2,000mJ compared to other devices, which is achieved through its superior resonance. This allows for the removal of dermal pigments (dermal melasma) and tattoo ink with strong energy while simultaneously protecting the epidermis. Furthermore, by maintaining a two-pulse distance of approximately 150µm, it generates thermal energy of about 45 degrees, which is effective in dermal melasma by improving the dermal environment.

4. True Genesis long-pulse technology

- Long-pulse 1064 nm mode offers energy up to 60J with adjustable pulse duration from about 0.3 to 300ms, enabling deep, controlled dermal heating.

- Designed for “True Genesis” toning: periodic, continuous sub-purpuric heating that activates fibroblasts in the papillary dermis, promoting collagen remodeling, redness reduction, and texture improvement beyond what “quasi-long” Q-switch modes can achieve.

- Long-pulse 1064 is also indicated for hair removal, telangiectasia, and Gold-PTT acne protocols.

5. Handpiece portfolio & extended wavelength options

- Zoom collimation handpiece: variable spot sizes for toning, freckles, age spots, carbon peeling, tattoos, hair removal, etc.—from small focal spots to large laser facial fields.

- Optional MLA handpiece: it collects the beam through the lens, and it makes a Gaussian beam like the energy in the center is high and around it is low, concentrating energy at depth to create LIOB while keeping the epidermis intact—ideal for non-ablative rejuvenation (acne scars, pores, laxity, fine wrinkles).

- Optional DOE handpiece: it has a Top-hat beam profile and emits a uniform fractional beam. So it can give predictable results to treat pigmented lesions, and it is a very effective method for removing pigmentation while minimizing the risk of side effects and downtime (toning for sensitive skin, easy pigmentation rebound skin, thermal sensitive skin, seborrheic dermatitis, pigmented lesions).

- Optional 595 nm Gold and 650 nm Ruby handpieces extend indications to vascular melasma, rosacea, purple/blue/green tattoos and fine facial vessels.
