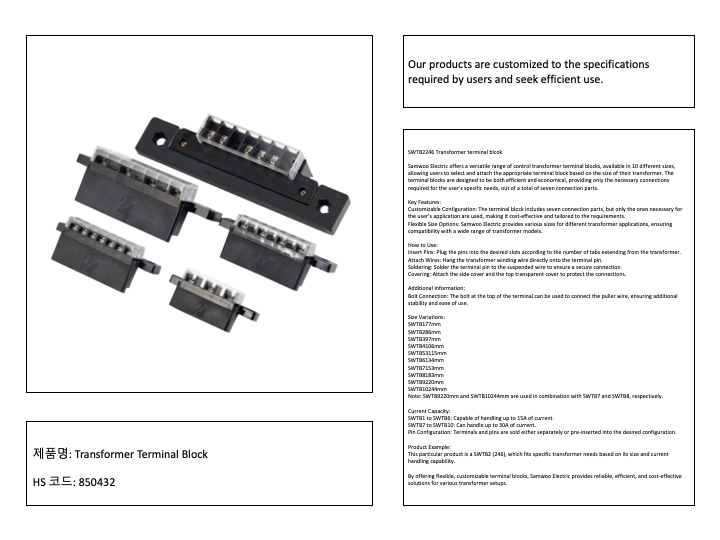

SWTB2246 Transformer terminal blcok

Samwoo Electric offers a versatile range of control transformer terminal blocks, available in 10 different sizes, allowing users to select and attach the appropriate terminal block based on the size of their transformer. The terminal blocks are designed to be both efficient and economical, providing only the necessary connections required for the user's specific needs, out of a total of seven connection parts.

Key Features:

• Customizable Configuration: The terminal block includes seven connection parts, but only the ones necessary for the user’s application are used, making it cost-effective and tailored to the requirements.
• Flexible Size Options: Samwoo Electric provides various sizes for different transformer applications, ensuring compatibility with a wide range of transformer models.

How to Use:

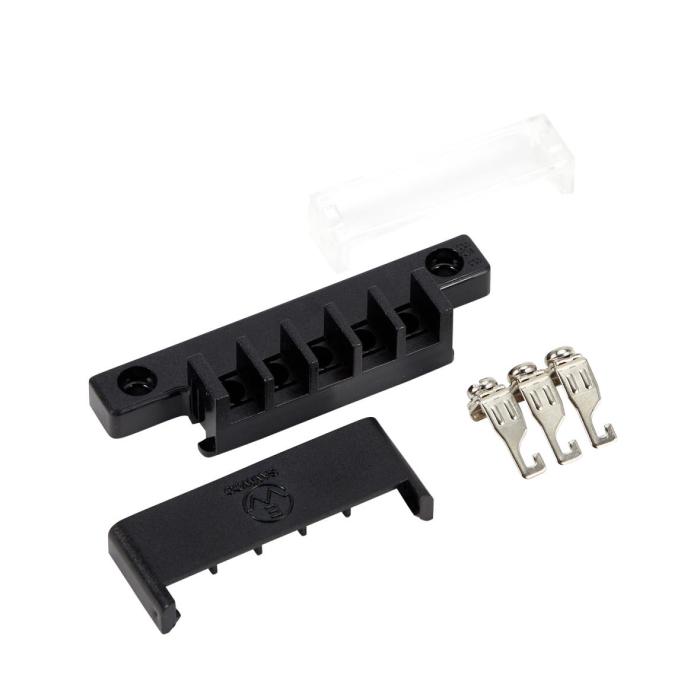

1. Insert Pins: Plug the pins into the desired slots according to the number of tabs extending from the transformer.
2. Attach Wires: Hang the transformer winding wire directly onto the terminal pin.
3. Soldering: Solder the terminal pin to the suspended wire to ensure a secure connection.

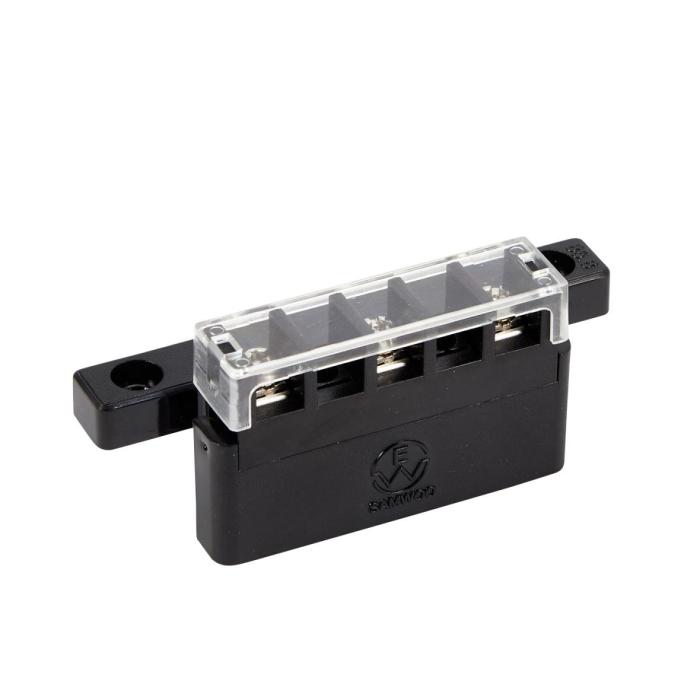

4. Covering: Attach the side cover and the top transparent cover to protect the connections.

Additional Information:

• Bolt Connection: The bolt at the top of the terminal can be used to connect the puller wire, ensuring additional stability and ease of use.

• Size Variations:

  • SWTB177mm
  • SWTB286mm
  • SWTB397mm
  • SWTB4106mm
  • SWTB53115mm
  • SWTB6134mm
  • SWTB7153mm
  • SWTB8183mm
  • SWTB9220mm
  • SWTB10244mm

  Note: SWTB9220mm and SWTB10244mm are used in combination with SWTB7 and SWTB8, respectively.

• Current Capacity:

  • SWTB1 to SWTB6: Capable of handling up to 15A of current.
  • SWTB7 to SWTB10: Can handle up to 30A of current.

• Pin Configuration: Terminals and pins are sold either separately or pre-inserted into the desired configuration.

Product Example:

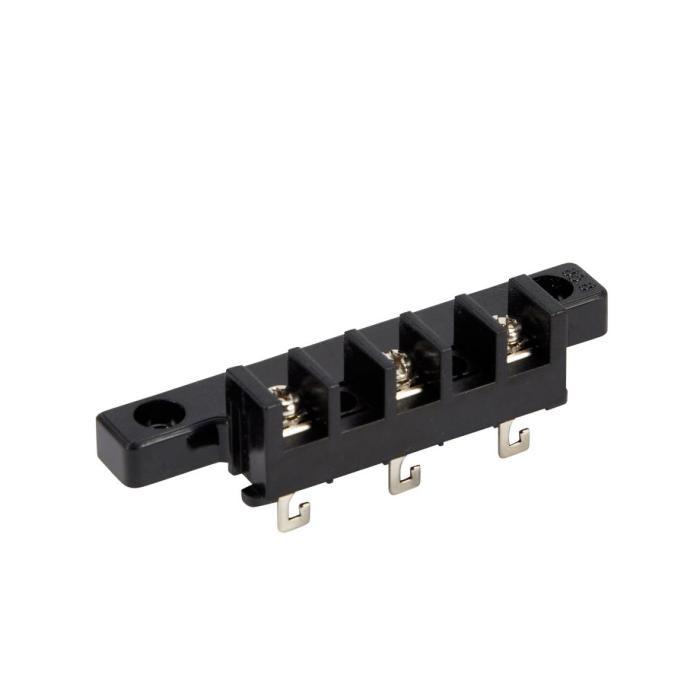

This particular product is a SWTB2 (246), which fits specific transformer needs based on its size and current handling capability.

By offering flexible, customizable terminal blocks, Samwoo Electric provides reliable, efficient, and cost-effective solutions for various transformer setups.
