ADAM™ CellT Plus
KEY FEATURES & BENEFITS
- FAST results in 10 sec per test
- LESS volume of sample (15 μL) required
- LARGER measuring volume
- COMPLIANT with 21 CFR part 11
- ACCURATE fluorescence cell count & viability
- SAVING cost with 4 channel slide
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Cartons
Product Summary
Auto-focusing
Objective lens
4 X
Loading volume
15 uL
Channel
Bright field / 2ch (AO & DAPI)
Measuring range
5 X 10E4~2 X 10E7 cells/mL(Detectable)
4 X 10E5~1X 10E7 cells/mL(Optimal)
Measuring volume
3.2 µL / test 1ch
Staining method
Acridine orange / DAPI solution
Measuring time
Accuracy mode (AO/DP, Default): 17 sec/test
Fast mode (AO/DP): 10 sec/test
Size and weight
277 x 276 x 270mm, 7kg
Detailed Description

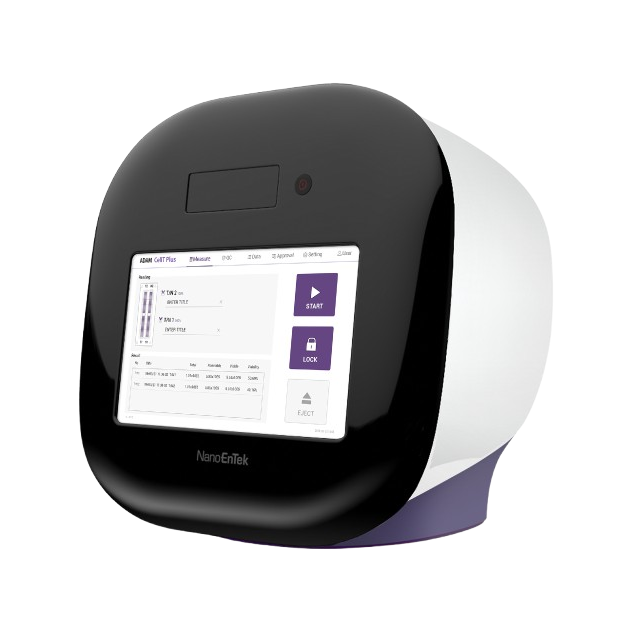

ADAM™ CellT Plus
ADAM™ CellT Plus is an automated cell counter that is available in cGMP production environment which provides a comprehensive solution to comply with the requirements of 21 CFR Part 11.
Accurate Fast Convenient Compliant
Basic principle of counting
Total cell number and cell viability (AO/DAPI staining)
ADAM™ CellT Plus is an automated fluorescence cell counter that utilizes
Acridine Orange (AO) and DAPI (4′,6-diamidino-2-phenylindole) to stain total and dead cells, respectively.
AO/DAPI stain nucleated cells only, effectively excluding interferences such as debris and red blood cells in samples
with complex backgrounds, thus providing accurate cell counts and viability analysis.
Moreover, ADAM™ CellT Plus is equipped with bright field imaging capabilities,
expanding its utility across a wide range of applications in both industrial and academic settings.
Large Measuring Volume Expanded Field of Views
ADAM™ CellT Plus measures larger volume of sample, and captures more image frames each channel.
Leveraging this capability, ADAM™ CellT Plus provides superior repeatability and accuracy
compared to other cell counting products in the market.
Cell Size Measurement & Cell Aggregation Rate
ADAM™ CellT Plus not only measures the number of total cells, viable cells, non-viable cells, and viability results.
In addition, they analyzes the cell size and cell aggregation ratio as well.
Accuracy & Repeatability
Correlation of PBMCs total counting between flow cytometry, manual count and ADAM™ CellT Plus.
A Wide Range of Applications
Cell Therapeutic Applications
ADAM™ CellT Plus is ideal cell counter for the monitoring and QC of the cell numbers and viability in the process of manufacturing a variety of cells (CAR-T cells, stem cells, etc.) for Cell Therapy under cGMP production environment.
21 CFR Part 11 Compliance
User Management & Access Control
There are three designated user groups: Admin, Supervisor, and User.
Admin have the highest level of privileges that can set account level to the users or release the accessibility to the data.
Validation of ADAM™ CellT Plus
ADAM™ calibration bead and QC slide (optional) allow quick diagnosis when problems occur, which ensures accuracy of the instrument.
Installation Qualification (IQ), Operational Qualification (OQ) and Performance Qualification (PQ) are designed to validate performance of the instrument.
