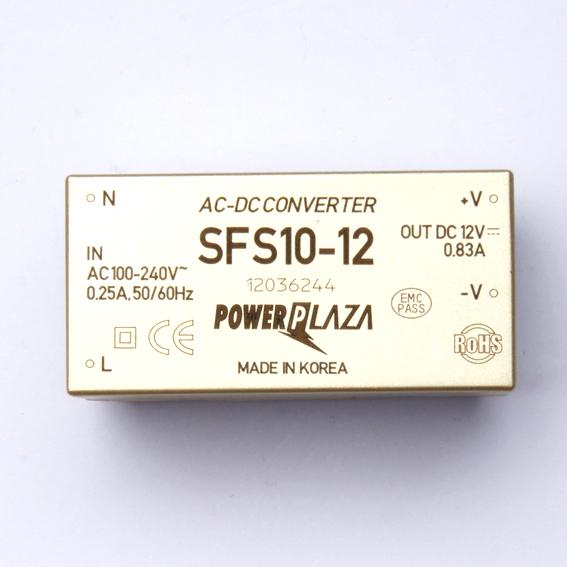

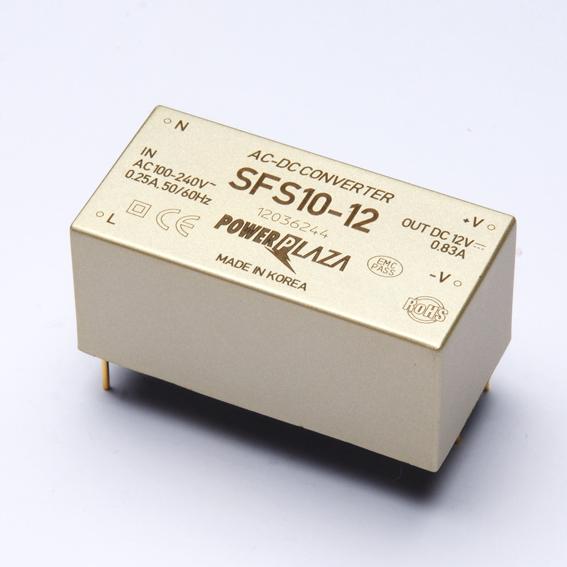

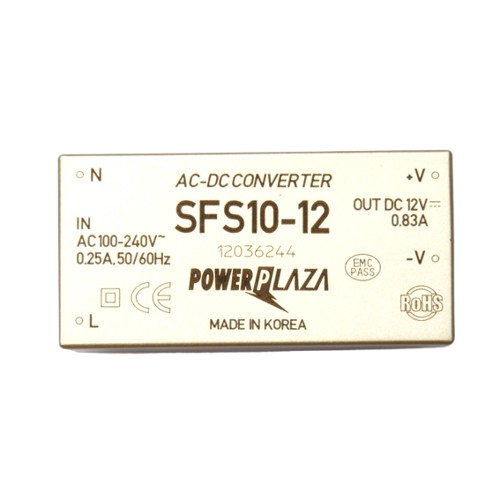

SF series, Industrial AC-DC Converter
Request For Quotation
The SF series is an ultra-small ("2 × 1") On-Board converter module used in industrial and communication products. It provides a new solution for standby power with high reliability and meets the EU's low no-load power consumption of 0.3W or less. It is also an ultra-small product that can be directly mounted on the PCB and installed in various electric and electronic devices.
[Product Features]
- High efficiency
- Encapsulated, compact case
- Universal input
- External EMI filter needed
- Surface mounting technology
- 100KHz(SF5),132KHz(SF10)fixed frequency
- Thermal shut down / Output short circuit protection
- Low output ripple & noise
- Isolated output
- Over voltage protection (OVP)
- Over current protection (OCP)
- Low no-load power consumption at No Load(Max.03W)
- 5Years warranty
[Product Features]
- High efficiency
- Encapsulated, compact case
- Universal input
- External EMI filter needed
- Surface mounting technology
- 100KHz(SF5),132KHz(SF10)fixed frequency
- Thermal shut down / Output short circuit protection
- Low output ripple & noise
- Isolated output
- Over voltage protection (OVP)
- Over current protection (OCP)
- Low no-load power consumption at No Load(Max.03W)
- 5Years warranty
- Certification
-
- Award
-
- Shipping
-
- Modes of Transport EXW
- Products Shipped From Seoul
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Pieces

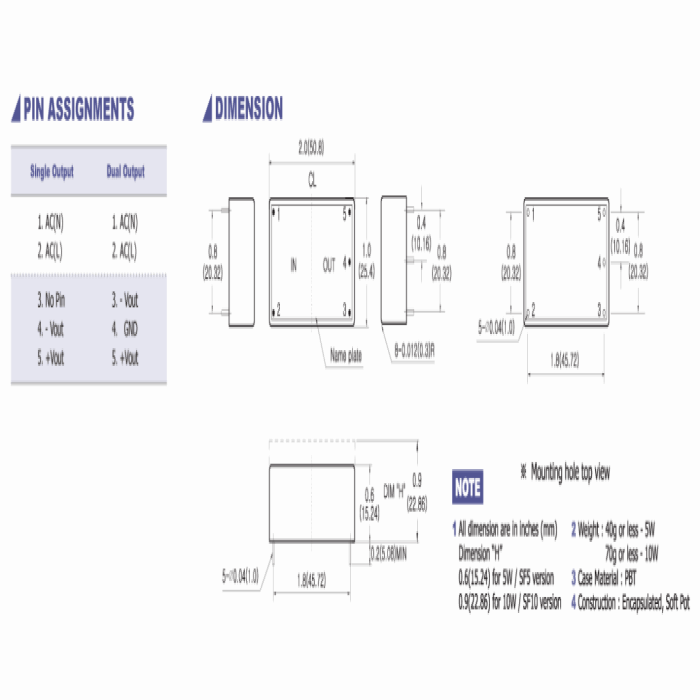

Product Summary
• Product name SF series
• Brand name Power Plaza
• Model Number

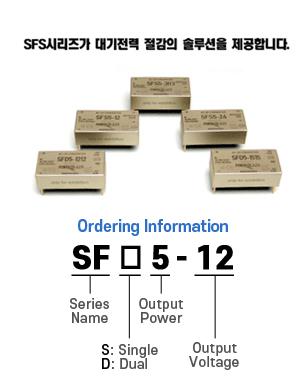

SF 5 series, SF10 series (5W, 10W)
• Usage Industrial
• Application Telecom, automation system, Networks, Rail, Military, Medical
• Feature
INPUT
- Voltage ......................................... AC85~264V (or DC 110~340V) 50/60Hz (note)
- Current ......................................... SFS5: 0.15A max. @ 110VAC / 0.08A max. @ 220VAC SFS10: 0.25A max. @ 110VAC / 0.13A max. @ 220VAC
- Frequency ................................... 47~440Hz max. (50~60Hz typ.)
- Efficiency ......................................... 68-81% typ.
- Inrush current (at cold start) ..... 20A max. @110VAC. / 40A max. @ 220VAC
- Leakage current ................................... 0.5mA max. @ 110VAC / 0.75mA max. @ 220Vac
OUTPUT
- Voltage tolerance ................................... ±2% (single and uncomplementary dual) / ±3% (complementary dual)
- Ripple and noise ................................. 1% typ.
- Line regulation ................................... ±1% typ.
- Load regulation ...................................... ±1% typ. @ Output1 / ±2% typ. @ Output2
- Dynamic load regulation ............... ±3% typ. @ Output1
- Temperature drift ............................ ±1% typ.
- Rising time ............................................ 100ms max.
- Holding time .......................................... 10ms min.
PROTECTION CIRCUIT
- Over voltage protection ........... Clamp, 130~150%
- Over current protection .................... Work at over 105% of rating & recovers automatically
- Over temperature protection .......... SFS5: 150℃ Min / SFS10: 130℃ Latching, Recovering
ELECTRICALLY ISOLATED
- Input - Output ................................... AC 3KV, 1minute, 10mA / DC 500V, 100Mohms min.
(NOTE 1. For cases where conformance to various safety specs (CE, CB etc)are regulated input voltage and frequency range will be 100-240 VAC,
• Brand name Power Plaza
• Model Number
SF 5 series, SF10 series (5W, 10W)
• Usage Industrial
• Application Telecom, automation system, Networks, Rail, Military, Medical
• Feature
INPUT
- Voltage ......................................... AC85~264V (or DC 110~340V) 50/60Hz (note)
- Current ......................................... SFS5: 0.15A max. @ 110VAC / 0.08A max. @ 220VAC SFS10: 0.25A max. @ 110VAC / 0.13A max. @ 220VAC
- Frequency ................................... 47~440Hz max. (50~60Hz typ.)
- Efficiency ......................................... 68-81% typ.
- Inrush current (at cold start) ..... 20A max. @110VAC. / 40A max. @ 220VAC
- Leakage current ................................... 0.5mA max. @ 110VAC / 0.75mA max. @ 220Vac
OUTPUT
- Voltage tolerance ................................... ±2% (single and uncomplementary dual) / ±3% (complementary dual)
- Ripple and noise ................................. 1% typ.
- Line regulation ................................... ±1% typ.
- Load regulation ...................................... ±1% typ. @ Output1 / ±2% typ. @ Output2
- Dynamic load regulation ............... ±3% typ. @ Output1
- Temperature drift ............................ ±1% typ.
- Rising time ............................................ 100ms max.
- Holding time .......................................... 10ms min.
PROTECTION CIRCUIT
- Over voltage protection ........... Clamp, 130~150%
- Over current protection .................... Work at over 105% of rating & recovers automatically
- Over temperature protection .......... SFS5: 150℃ Min / SFS10: 130℃ Latching, Recovering
ELECTRICALLY ISOLATED
- Input - Output ................................... AC 3KV, 1minute, 10mA / DC 500V, 100Mohms min.
(NOTE 1. For cases where conformance to various safety specs (CE, CB etc)are regulated input voltage and frequency range will be 100-240 VAC,
