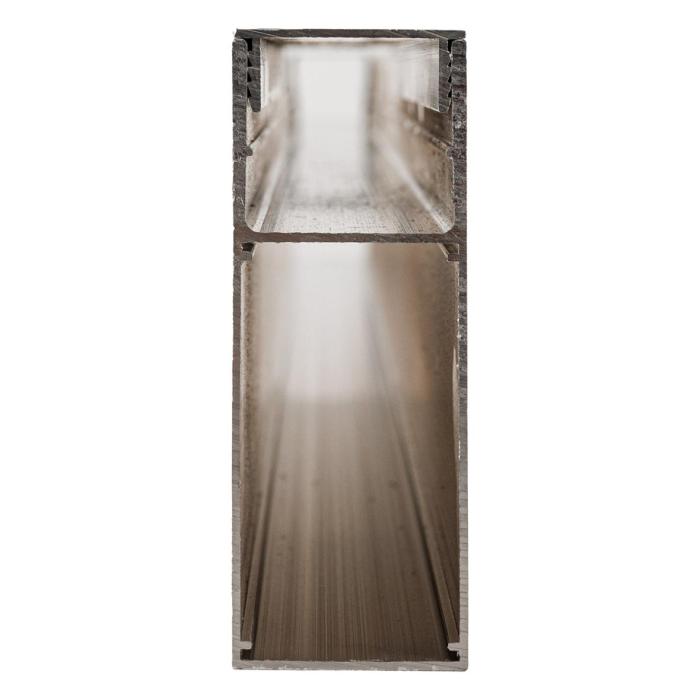

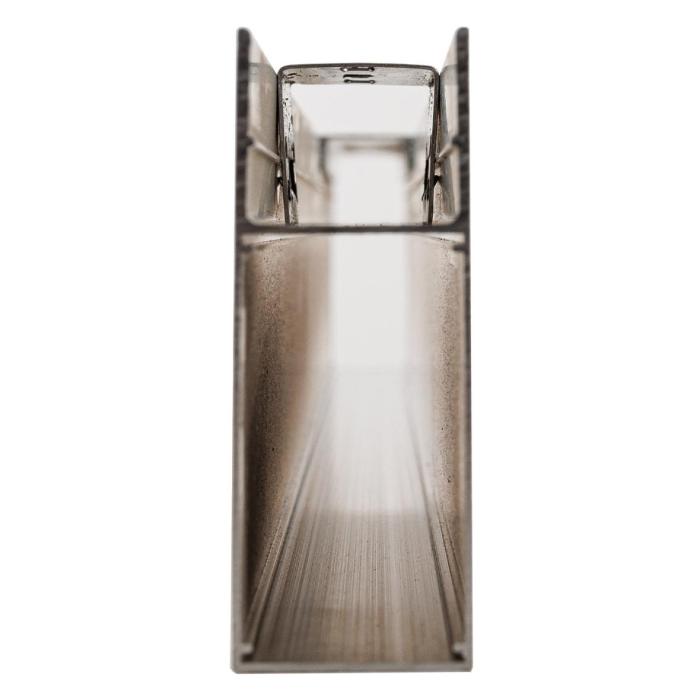

Install LED lights into the louver to complete the lighting louver

Various lighting effects are possible according to the user's preference

Specifications: 30x150xD (mm) / 30x120xD (mm) / 30x100xD (mm) /

50x150xD (mm) / 50x100xD (mm) /

3,000~6,000mm per module

Installation type: Direct, pendant / SMPS (stabilizer) built-in installation type

Rated voltage: 24V, LED BAR 1Line: 15W, 2Line: 30W (based on 1M)

Louver color: White, Black, etc. Custom color

Color temperature: 3000K, 4000K, 5700K, RGB (Full Color)

LED Chip: SAMSUNG (Samsung, LG)

LED BAR 1,000mm (1M) standard

External case (housing + PC cover) mm = LED BAR length + 10mm (wiring, ending)

Ex) When ordering 1,800mm of lighting

LED BAR 1,800mm (100mm unit), total external case size 1,810mm

※ LED BAR 24V is Work in 100mm(10cm) increments.
