Product Specifications:

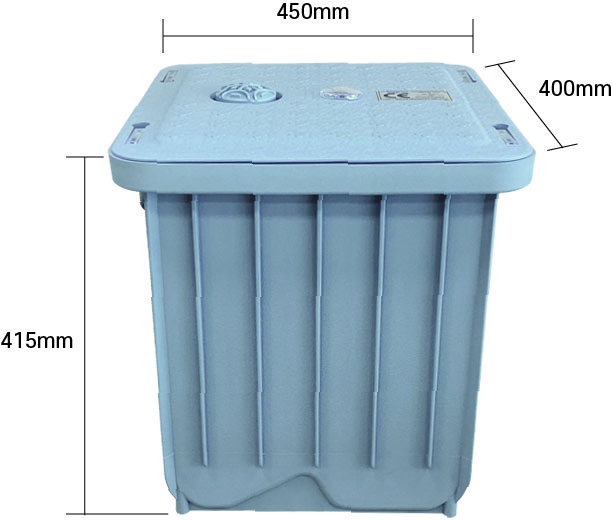

• Dimensions: 400 x 450 x 415 mm
• < strong>Pipe Sizes: Φ50, Φ100 (Φ50 to Φ75 possible with reducer)

Certainly! Here is the translation:

Features:

1. External Air Inlet:The cover is equipped with a separate external air inlet, ensuring smooth water flow and rapid separation of incoming water.

2. Odor- Blocking Rubber Packing: A corrugated odor-blocking rubber packing is installed below the external air inlet, preventing odors generated inside the separator from escaping outside the cover.

3. < p>Viewing Window: A viewing window is installed inside the product, allowing easy monitoring of the separation timing and preventing overflow by alerting users when maintenance is needed.



4. < li>

   Easy Assembly and Cleaning: All components inside the product can be easily assembled or disassembled by the user, facilitating simple cleaning.

5. Gas Purification: Decayed gases inside are expelled along with purified water through the drainage outlet, providing excellent odor control.

6. Sediment Prevention Barrier: A sediment prevention barrier is installed near the outlet, resolving drainage blockages caused by sediment.

7. Durable Material :The product is made from reinforced plastic (recycled automotive bumper material), which is impact-resistant and durable. Unlike stainless steel, it does not corrode or rust, allowing for semi-permanent use.

Excellent Oil-Water Separation Capability:

Sewage flowing into the inlet undergoes friction against the rounded surface of the odor-blocking elbow due to the flow velocity and mixes with air introduced through the air inlet, creating a vortex effect. The mixed sewage then flows below the oil separation baffle and rises following the guide plate installed in the center. The rising oil, due to its density difference, separates from the water. The separated oil remains in the baffle, while only the purified water passes through the sedimentation barrier and is discharged through the drainage elbow. During this process, any odors generated inside the separator are also expelled with the effluent, resulting in excellent odor control and superior oil-water separation capability.
