IoT street parking DETECTOR with RFID Technology.
Request For Quotation

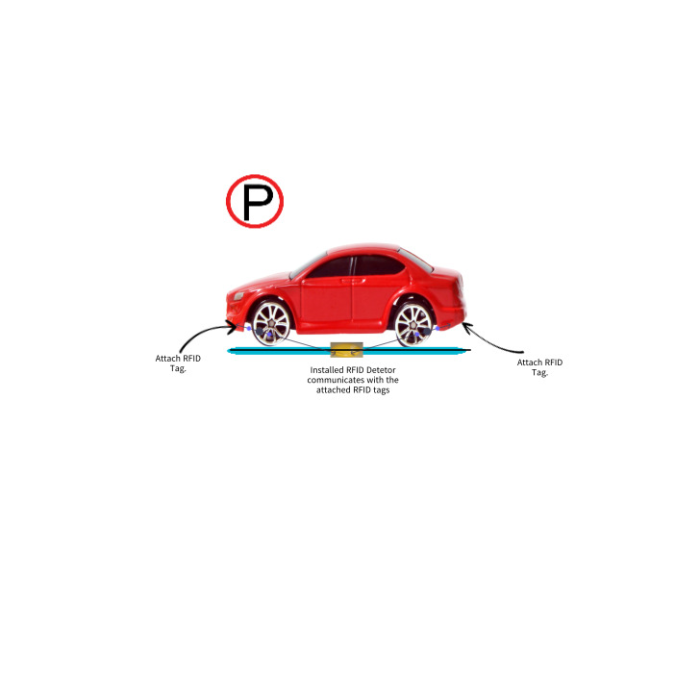

- In order to facilitate the management of on-street parking lots by distinguishing between regularly parked vehicles or parked
member registration vehicles parked in street parking lots and non-regular parking vehicles, RFID detectors and RF tags are
attached to the front and back of the vehicle. Vehicles with tags are regular member vehicles. It is recognized as .
member registration vehicles parked in street parking lots and non-regular parking vehicles, RFID detectors and RF tags are
attached to the front and back of the vehicle. Vehicles with tags are regular member vehicles. It is recognized as .
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 100 Units
Product Summary
1. Automatic transmission of wireless parking detection signal + unique location ID
number + vehicle information (RFid/Tag.no) to the repeater.
2. RFid/Reader operates only when entering or exiting the vehicle.
Power-saving type Reading distance Metal RF/Tag 100cm.
3. 60Ghz RF wireless radio wave radar detects vehicles within 2m distance,
2 sec. interval, power saving operation.
4. Development of special High-Gain LoRa–Antena for UHF-RF radio wave
shielding/RF-shielding under the metal body of passenger cars.
number + vehicle information (RFid/Tag.no) to the repeater.
2. RFid/Reader operates only when entering or exiting the vehicle.
Power-saving type Reading distance Metal RF/Tag 100cm.
3. 60Ghz RF wireless radio wave radar detects vehicles within 2m distance,
2 sec. interval, power saving operation.
4. Development of special High-Gain LoRa–Antena for UHF-RF radio wave
shielding/RF-shielding under the metal body of passenger cars.
Detailed Description
- Specification
• LoRa Self networking based parking detection.
• Operating current - 160uA / 100mA.
• Battery life - Over 3 years base on 10 entries and exits per day.
• Operating temperature : -10 ~80ºC.
• Protection : IP67.
• Radar sensor.
• RFid/Tag - chip Tag/Metal tag active.
• Size - 220mm ( Dia.) x 50mm (H).
