Flux Auto Coating Machine
This machine uses a roller to apply a solution containing flux (Zn) to the surface of an aluminum extrusion tube in a precise thickness and dries it to wind it up.
After raising the temperature of the tube with a preheater, apply the coating solution to both sides of the tube with a top and bottom coating roller.
The applied tube is dried through an NIR dryer and four hot air dryers, cooled and wound.
- Certification
-
- Award
-
- Shipping
-
- Type of Freight Proceed after consultation
- Modes of Transport Proceed after consultation
- Products Shipped From Incheon,Busan
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Product Summary
• Brand name (DMP TECH)
• Type (equipment)
• Condition (finished product)
• Size/Dimension (5,000*45,000*3,000) Approximate size that can be changed by asking of customer
• Weight (7,000KG) Approximate weight that can be changed by asking of customer
• Applicable Industries (Auto Parts)
• Warranty (1 year)
• Certification (INNOBIZ)
Detailed Description
This is a specific example of the equipment actually delivered to the customer.
Detailed product deion
1. Facility name: Appliances (2 Line)
2. Mechanical performance
1) Material Acceptance Range
-Wide: 10–35 mm, -Thickness: 1–3 mm
2) Application speed: Minimum 5 to maximum 100M/min (speed changes depending
on application ingredients, amount, tube condition, etc.)
3) Application range: Apply top and bottom, not apply part R
4) Application amount: Total application amount 3~14g/㎡
5) Application uniformity: ± 10% (within 5g/㎡ ±0.5g/㎡)
6) Application ingredients: Customization (provides solution to buyer)
7) Installation area (mm): Reference LAY OUT
8) Power used: Reference LAY OUT
9) Air used: 0.4 MPa 20A or higher
3. Application method
1) Mix at the correct rate when mixing the solution.

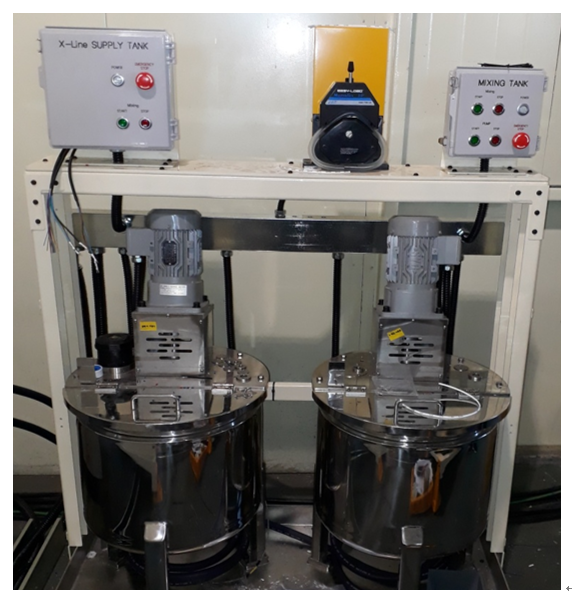

2) Add solution to the stirrer and stir (sealed)
3) Solution is injected between TFR and MTA roller by pulsation pump and sensor.
When the solution moves (sealed), it is applied to the tube after an exposure time of
about 2 to 3 minutes (application liquid 5 to 10CC) in the air, and thus the solution
mixing ratio does not change.
* Examples of third-party applicators;
The solution is exposed to the outside and is evaporated.
When the solution evaporates, the mixing ratio is changed, so it is replenished By using a viscometer.
4. Machine Configuration

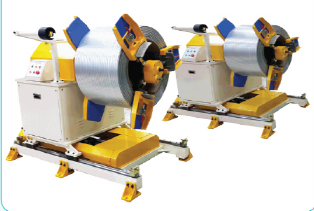

1) Uncoiler (1LINE/2SET)

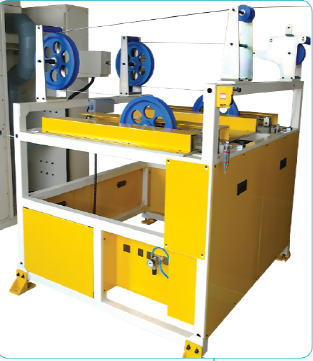

2) Uncoiler Denser (2LINE/1SET)

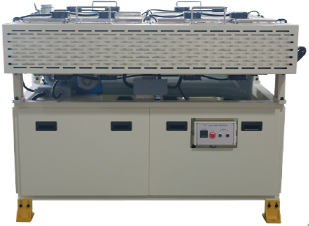

3) Preheater (2LINE/1SET)

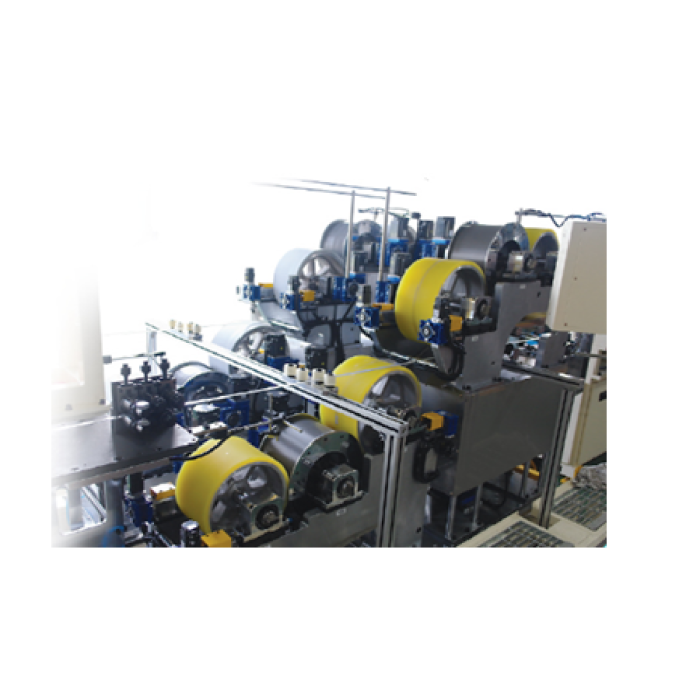

4) Coating machine (2LINE/1SET)

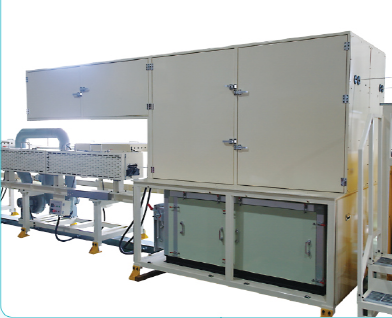

5) NIR Heater (2LINE/1SET)
6) Dryer (2LINE/5SET)
7) Cooler (2LINE/1SET)
8) Feeding (1LINE/2SET)
9) Denser (2LINE/1SET)
10) Winding machine (1LINE/2SET)
