• Product name : Wireless Communication System for Nuclear Power Plant

• Brand name : IL SHIN EDI Co.,Ltd

• Type : Wireless Communication System

• Feature :
- Provide wireless communication services in Nuclear Power Plant(NPP)
- Integrated system accommodating PS-LTE, 5G and Wi-Fi into one system
- Operate as a disaster control safety network and highspeed mobile multimedia service network
- Suitable for smart maintenance and many applications for NPP
- Usual mobile smartphone and special terminals are used
- World’s first Wireless communication system for NPP
- World’s best system in terms of bandwidth and speed
- Useful as self owned private network or interwork with commercial carrier network

• Application :
- Interworking with Paging System
- Interworking with TETRA and Backhaul
- Interworking with SafeCAM and 360°camera
- Real conference service
- Drawing and procedure download service
- Wireless AI video surveillance system
- Remote Wireless sensor transmission
- Messenger service

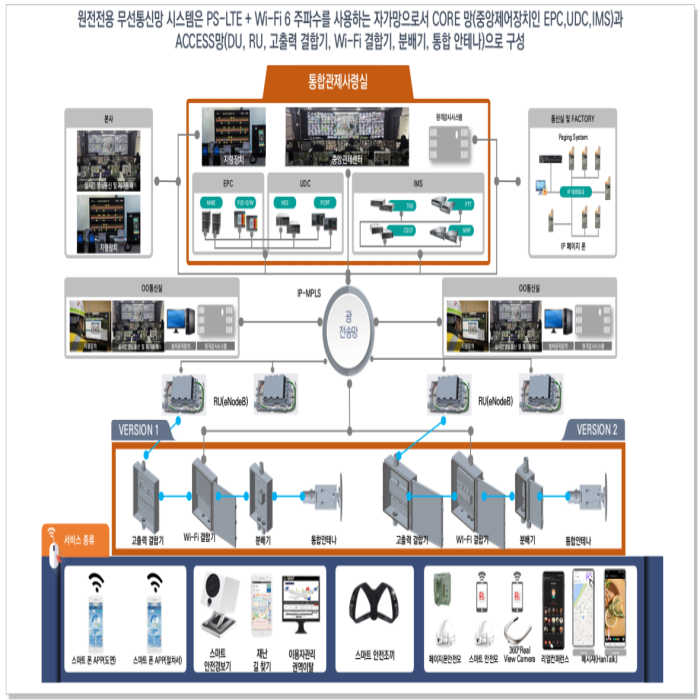

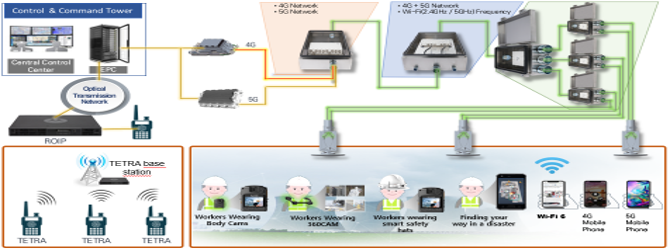

Integrated Wireless System (IWS)

WHAT ISW

Accommodating disaster network (700MHz PS-LTE), commercial network 5G (3.5GHz), e-Um 5G (4.7MHz), and Wi-Fi (2.4GHz, 5GHz) It is an integrated wireless communication system.

- All-weather system capable of disaster and safety communication services + high-speed multimedia services

- Accepts e-Um 5G (4.7MHz) signals



IWA Service Types

- Messenger (Han talk)

- 360 Degree Real View Camera

- Security Camera

- Sensor IoT (Oil/Gas Leak Detection, etc.)

- Real Conference

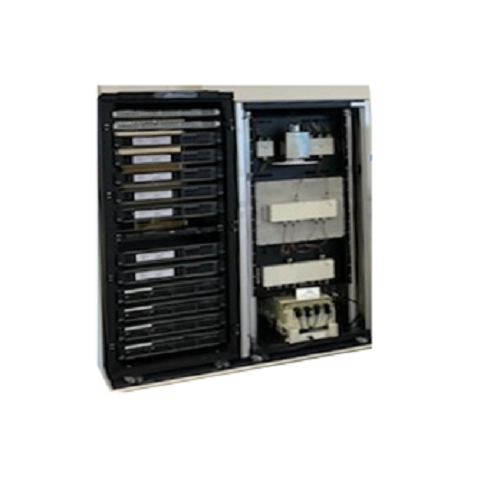

Core System

Core System is It is a device that performs the EPC (Evolved Packet Core) function and has a smaller and more integrated structure than the EPC used. The components are based on EPC, UDC, and IMS, and are composed of MCPTT for multiple services and integrated EMS for integrated operation and management.

The Core System carries out the disaster communication network function and supports nuclear power plants. It was developed appropriately for the scale.

As a result, it was jointly developed by Korea Hydro & Nuclear Power, Ilshin ID, and Eruon, which had core equipment consisting of EPC, UDC, and IMS.

It has a very economical and flexible structure. (MANUFACTURER : ELUON)



High Power Combiner

The high-power combiner functions to combine signals from the disaster network band (700MHz PS-LTE), commercial network 5G (3.5GHz), and e-Um 5G (4.7MHz).

- It is designed to accommodate high power signals from RU (eNB/gNB), a wireless repeater.

- Frequency interference, distortion component interference, harmonics BPF (Band Pass Filter) is applied to block component interference and ensure the quality of the transmission line leading to the antenna.
