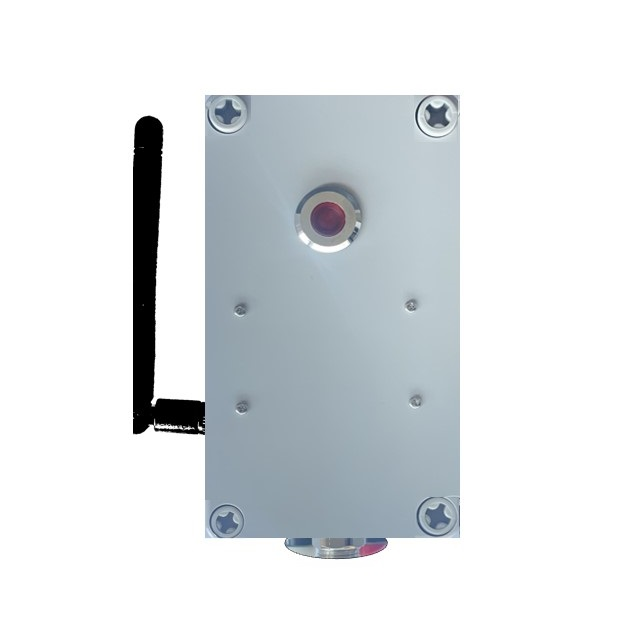

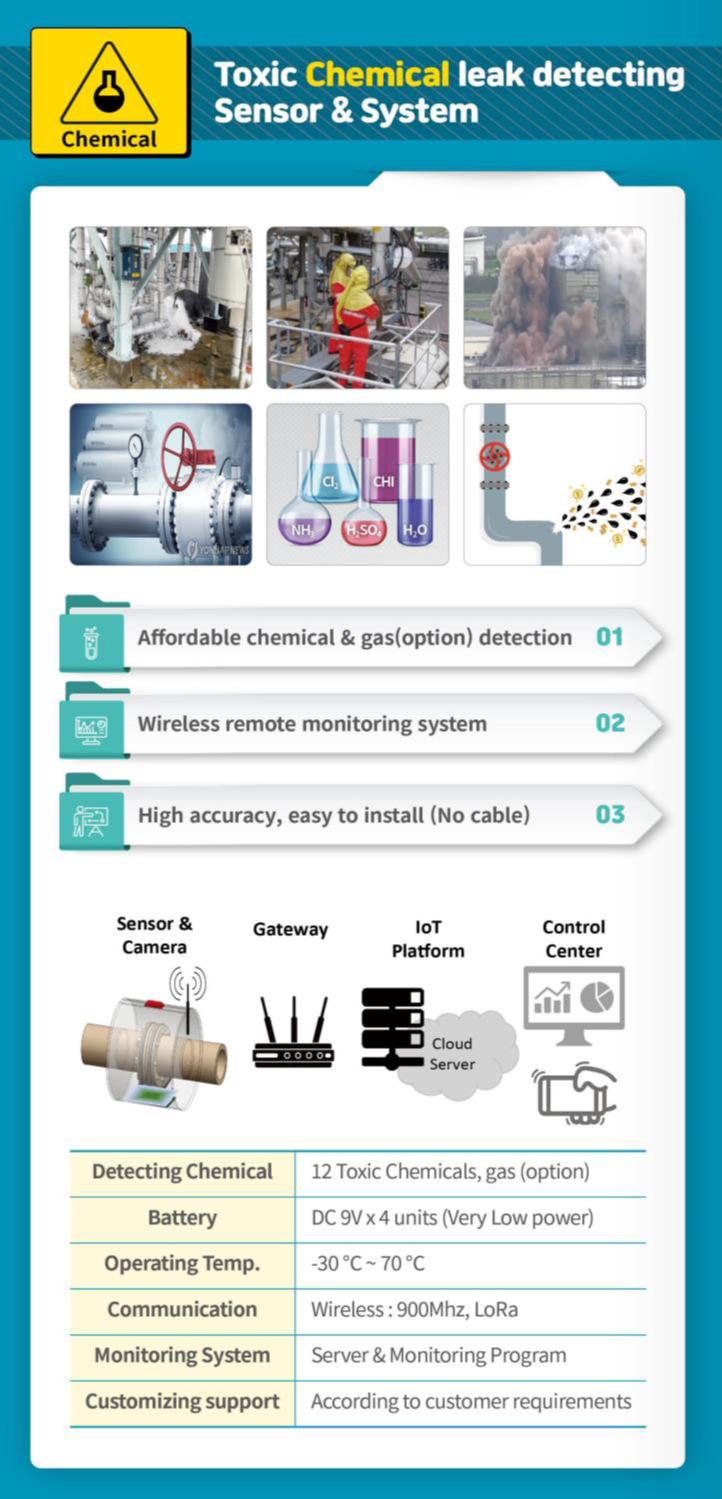

Toxic Chemical Leak Detecting System
- Detection of 12 types of toxic chemicals: Phosphoric acid, nitric acid, acetic acid, hydrochloric acid, hydrofluoric acid, sulfuric acid, BOE, Stripper, TMAH, NAOH, H2O2, IPA

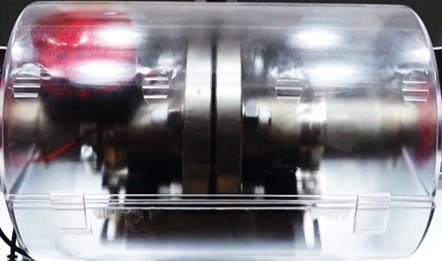

- Pipe Detection of leaks at connection points
- Transmission of leakage information via 900Mhz wireless communication system
- Operates for 3 years using batteries
- Certification
-
- Award
-
- Shipping
-
- Type of Freight Proceed after consultation
- Modes of Transport Proceed after consultation
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 10 Units
Detailed Description
1. Detecting Performance : Detection of 12 types of various toxic chemicals
- Phosphoric acid, nitric acid, acetic acid, hydrochloric acid, hydrofluoric acid, sulfuric acid, BOE, Stripper, TMAH, NAOH, H2O2, IPA
- Capable of responding to explosion-proof equipment (option)
2) Accurate and reliable without malfunctions
- Waterproofing, prevents malfunction due to internal dew (water)
- Periodically check remaining battery capacity and system operation status
3) System without any cable: Easy installation and ultra-low power system
- Wireless communication: 900Mhz(free frequency) long-distance/two-way wireless communication(Hopping, Mesh network)
- Operates on batteries: DC battery powered, operates for more than 3 years after installation

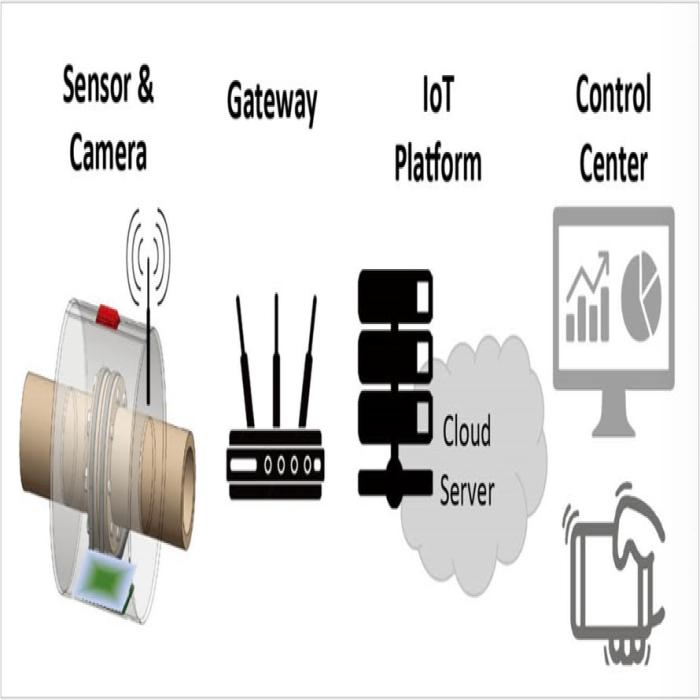

4) Remote server and intuitive monitoring system
- Real-time/simultaneous monitoring of more than 4,000 leak detection sensors
- LED at leak site indicates leak point
5) Installed in a major global chemical company (LG Chemical)
- POC verification completed by LG Chemical: Nov. 2023 ~ Feb. 2024 (4-month test)
- Installed/operating at 35 major risk points (Feb. 2024)
- Prepare intellectual property rights globally with LG Chemical
