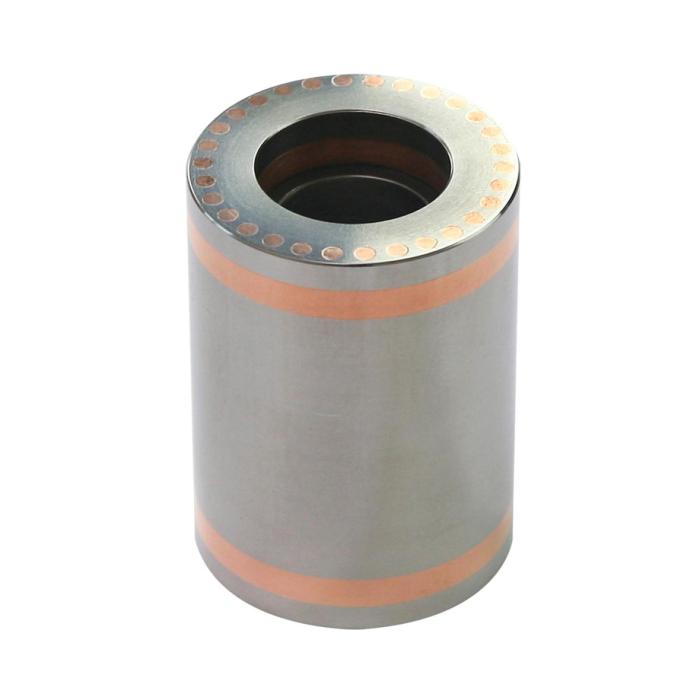

High Speed Motor Elements(stator& rotor) : 4Pole-A4P-S60
Request For Quotation
Currently, a wide array of products is on offer,
ranging in capacity from 1kW to 400kW and in rotation speed from 10,000 to 100,000rpm. They have various applications such as EV, high-frequency spindles and turbo blowers.
ranging in capacity from 1kW to 400kW and in rotation speed from 10,000 to 100,000rpm. They have various applications such as EV, high-frequency spindles and turbo blowers.
- Certification
-
- Award
-
- Shipping
-
- Type of Freight AT,MM,MT
- Modes of Transport CIF,CIP,EXW,FCA,FOB
- Products Shipped From Busan
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Product Summary

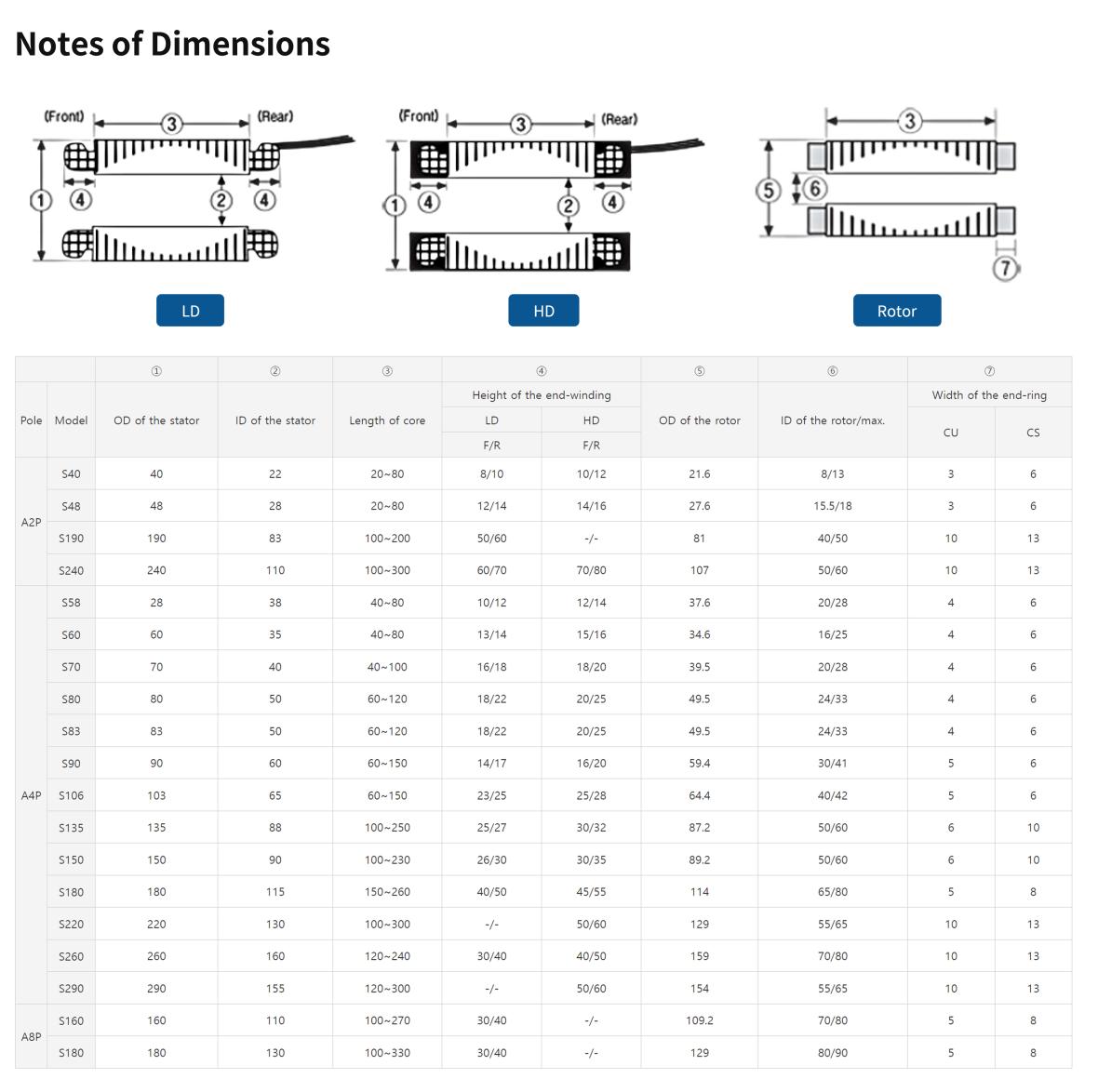

Notes of Dimensions
A4P-S60
1. Outer dia. of the stator : 60
2. Inner dia. of the stator : 35
3. Laminated length of the stator : 40~80
4. Height of the end-winding
- LD : Front 13 / Rear 14
- HD : Front 15 / Rear 16
5. Outer dia. of the rotor : 34.6
6. Inner dia. of the rotor/max.
- CU : 16/25
- AL : -
7. Width of the-ring : 4
A4P-S60
1. Outer dia. of the stator : 60
2. Inner dia. of the stator : 35
3. Laminated length of the stator : 40~80
4. Height of the end-winding
- LD : Front 13 / Rear 14
- HD : Front 15 / Rear 16
5. Outer dia. of the rotor : 34.6
6. Inner dia. of the rotor/max.
- CU : 16/25
- AL : -
7. Width of the-ring : 4
Detailed Description

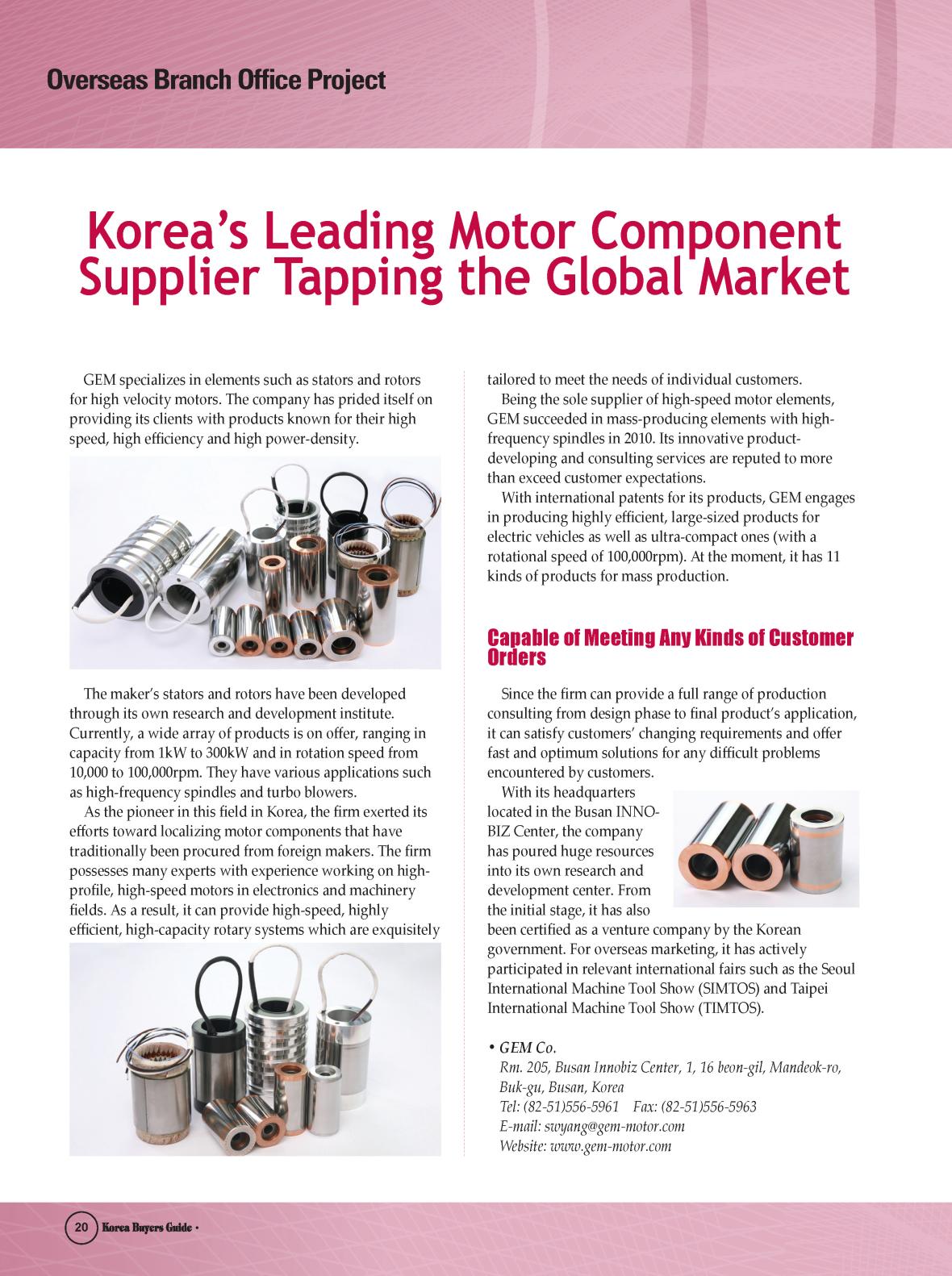

GEM’s stator and rotor (key components of high velocity motor) come from independent research and development,
From 1kW to 400kW, and 10,000 to 100,000rpm models we provide diverse product family.
There are lots of application area demanding high speed rotation technology (ex, EV, high frequency spindle, turbo blower…).
from the design phase through to the application of the final product.
We provide consulting service to our customers to make sure they’re satisfied.
