Cable Gland : OS-A2F-UH
Request For Quotation
CABLE GLAND : OS-A2F-UH
Non-armoured
Non-armoured
- Certification
-
- Award
-
- Shipping
-
- Type of Freight AT,MT
- Modes of Transport EXW,FCA
- Products Shipped From Busan
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 500 ea
Product Summary
SPECIFICATION
Design Specification : BS 6121, IEC 62444, EN 50262
Compliance Standard : IEC/EN 60079-0, 7, 31
ATEX Certification : Presafe 17 ATEX 11486X
IECEX Certification : IECEx PRE 17.0083X
KCS Certification : 18-KA2BO-0220X,0221X(KOR), 18-KA2BO-0220X,0221X(ENG)
TR CU Certification : RU C-KR.AA87.B.01105
PESO Certification : P465223
CCC Certification : 2020332313001772
Code of Protection : II2G Ex eb IIC Gb, II2D Ex tb IIIC Db
Operating Temperature : -60˚C ~ 121˚C
Regulation : Zone 1,2 & 21,22, Gas Group IIA, IIB, IIC, Dust Group IIIA, IIIB, IIIC
Ingress Protection : IP 66
Applicable Cable Specification : Heating cable
Gland Material : Nickel plated brass(standard), Brass(only), Stainless steel(316L)
Gasket (washer) : Nylon(Standard), PTFE-Teflon(Option)
Packing : Silicone
Accessories (optional) : Lock nut, Sealing washer, Earth tag
Design Specification : BS 6121, IEC 62444, EN 50262
Compliance Standard : IEC/EN 60079-0, 7, 31
ATEX Certification : Presafe 17 ATEX 11486X
IECEX Certification : IECEx PRE 17.0083X
KCS Certification : 18-KA2BO-0220X,0221X(KOR), 18-KA2BO-0220X,0221X(ENG)
TR CU Certification : RU C-KR.AA87.B.01105
PESO Certification : P465223
CCC Certification : 2020332313001772
Code of Protection : II2G Ex eb IIC Gb, II2D Ex tb IIIC Db
Operating Temperature : -60˚C ~ 121˚C
Regulation : Zone 1,2 & 21,22, Gas Group IIA, IIB, IIC, Dust Group IIIA, IIIB, IIIC
Ingress Protection : IP 66
Applicable Cable Specification : Heating cable
Gland Material : Nickel plated brass(standard), Brass(only), Stainless steel(316L)
Gasket (washer) : Nylon(Standard), PTFE-Teflon(Option)
Packing : Silicone
Accessories (optional) : Lock nut, Sealing washer, Earth tag
Detailed Description

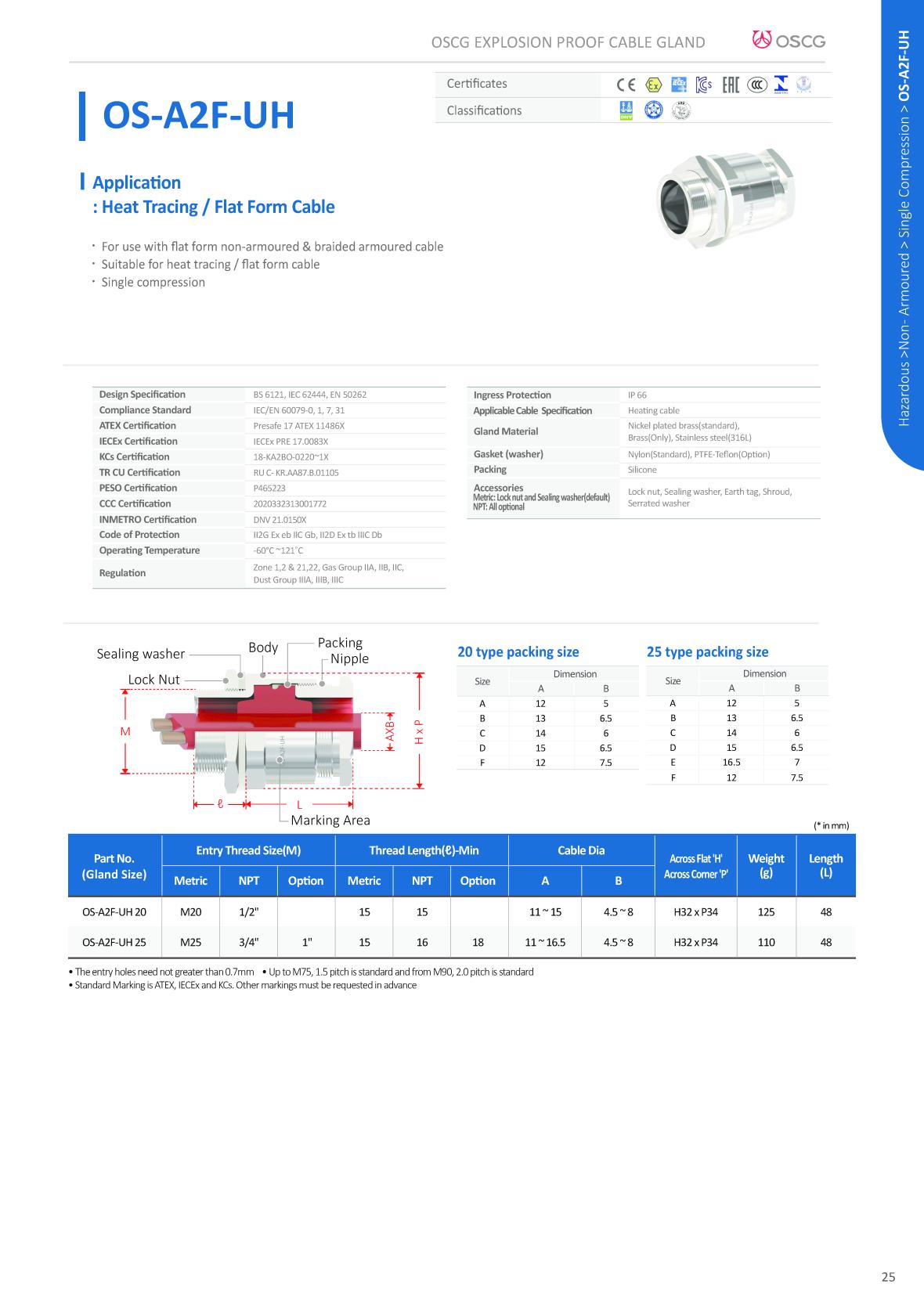

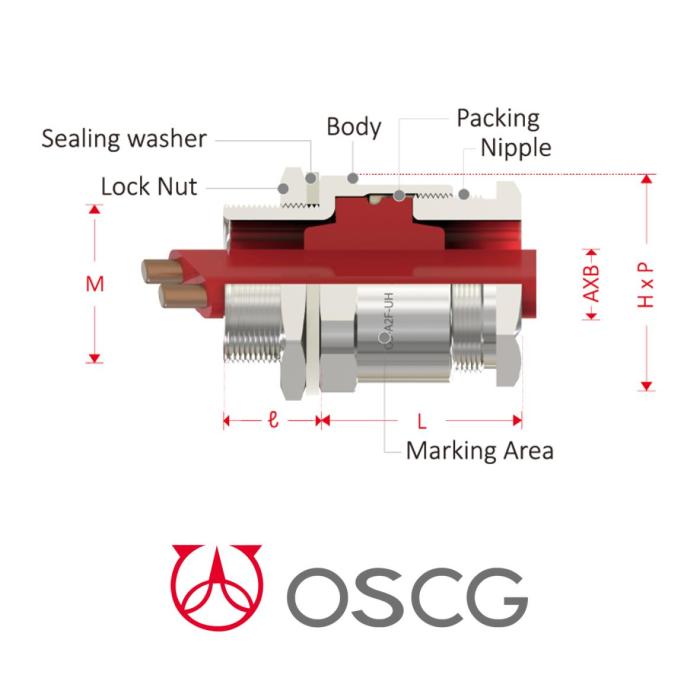

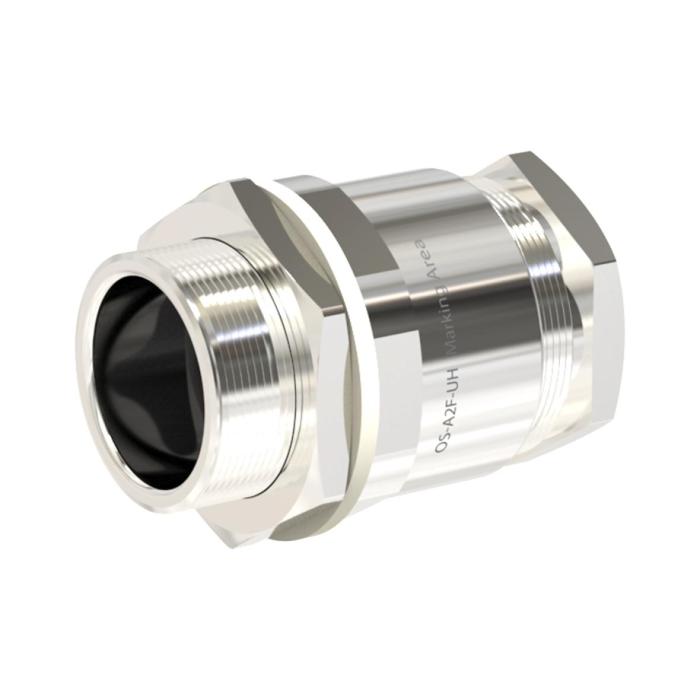

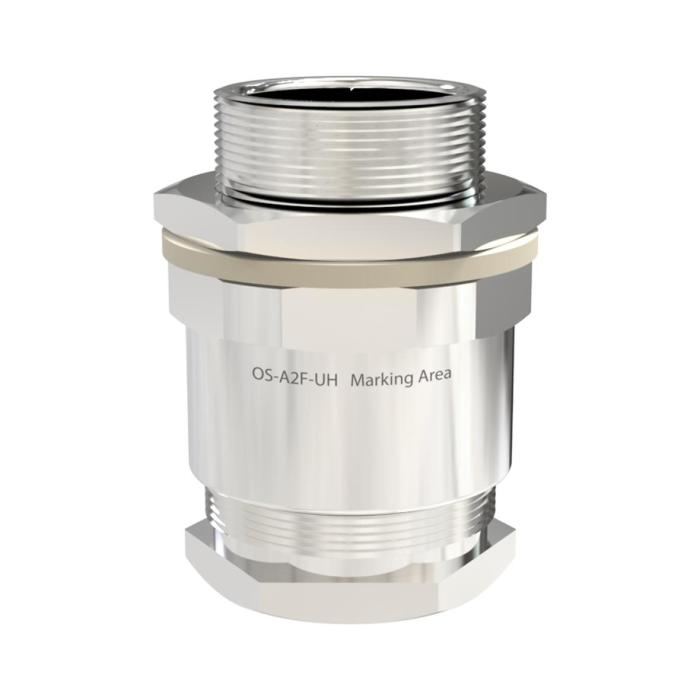

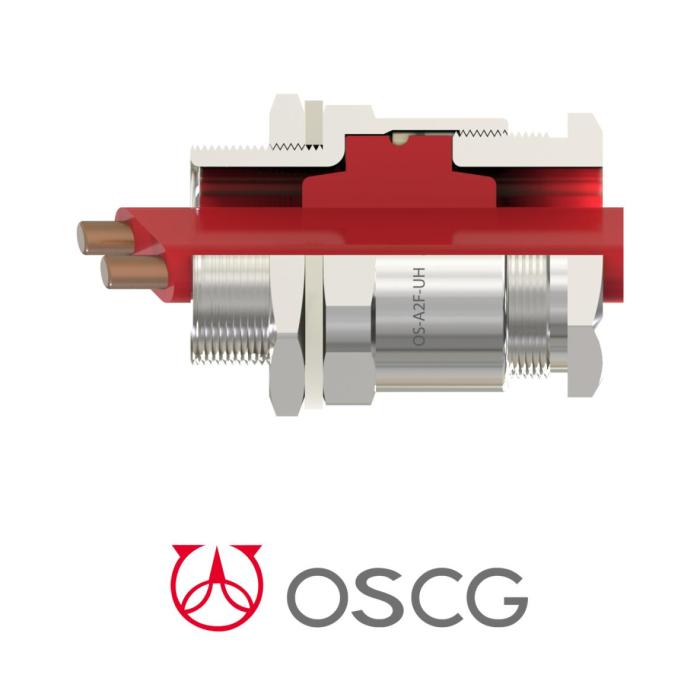

CABLE GLAND : OS-A2F-UH
Non-armoured
Application : Heat Tracing / Flat Form Cable
· For use with flat form non-armoured & braided armoured cable
· Increased safety
· Suitable for heat tracing / Flat form cable
· Single compression
