1. Core technology and value provided by CENAIR

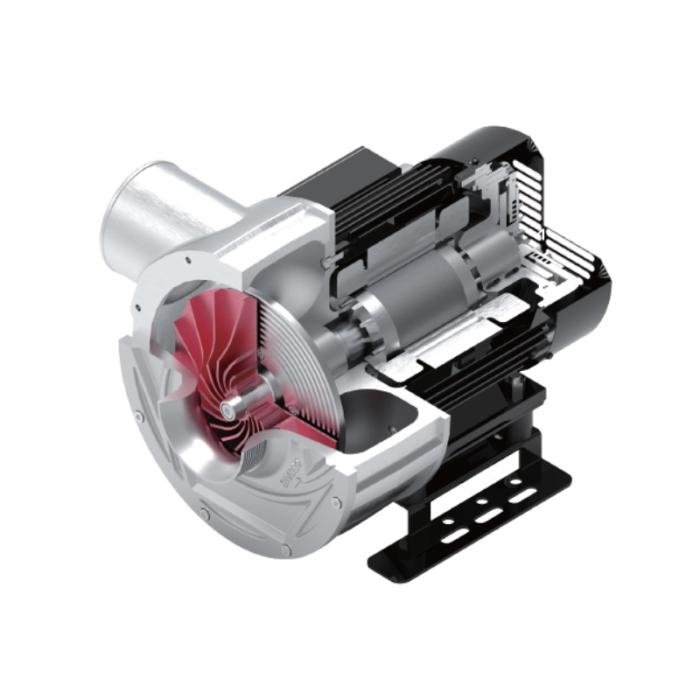

CENAIR, Centrifugla Blowers, are newly released by drastically reducing the size and weight of blowers by applying innovative technology including Air Foil Bearing, Directive drive, High efficiency motor and Impeller. It not only reduces various costs required for operation, but also provides an eco-friendly and safe working environment. The followings show special features.

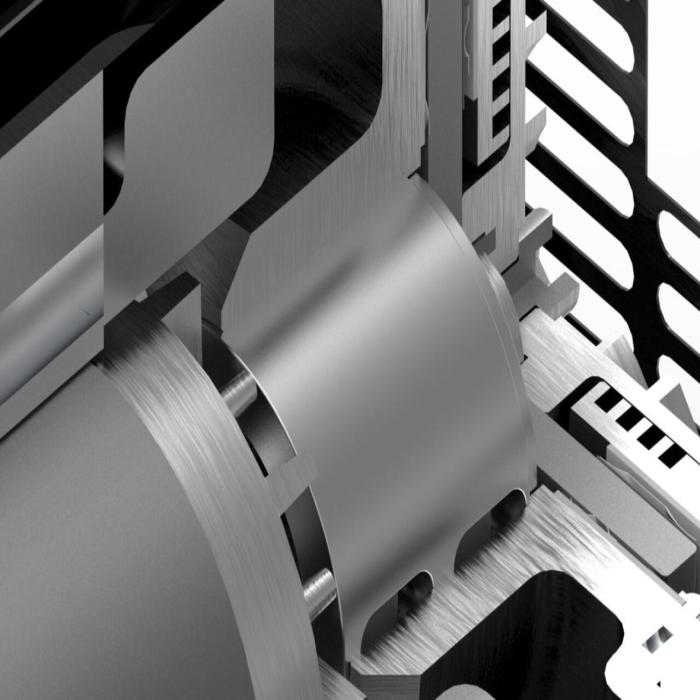

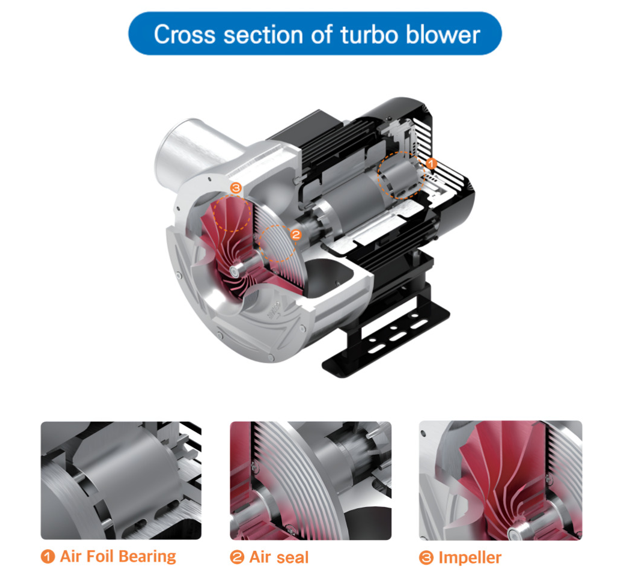

A. Directive Drive & Air Foil Bearing

Minimize mechanical loss & No need for the gearbox or timing belt (Direct connection structure)
No need for cooling system / Oil free lubrication system (Air cooled)
Elimination of various problems related to belt driven (Direction drive)
Use of semi-permanent bearings (Air foil bearing)


B. The Excellent Design

High-efficiency impeller design and application & Application of high speed induction motor (up to 300Hz)
Air Foil Bearing design and application (Pat. No-10-1133863)
Compact design and Lighest weight (Abt.30~40Kg at 5~25HP)
Adoption of Directive drive method


C. Easy Installation

Compact size & light weight to maximize mobility and workability
No need to use heavy duty tools such as a crane.
No need for base work (saving time, space and expenses)
D. Eco-friendly & economic

Provides 100% Oil free compressed air & Minimize energy consumption and maximize efficiency
Realization of low noise and low vibration & Providing a clean working environment
Reduced installation and maintenance costs & Extended maintenance inspection period

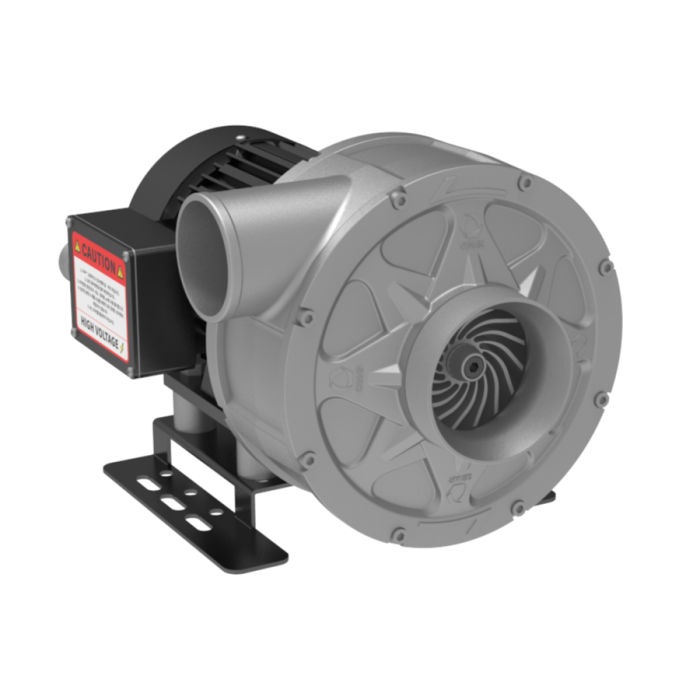

2. CA1000-3L

Product name: Centrifugal Blower
Brand: CENAIR
Type: CA1000-3L
Material: Steel & Aluminum
Color: Black & Gray
Size/Dimension: 389X272X153mm
Weight: 30Kg
Certification: CE

3. Applicable Areas

Washing vegetables & fruits
Water tank oxygen supply
Tank aereation work
Removing dust & gas
Conver drying process
PCB & Metal cleaning process
Air injection process, etc

4. Key customers

SAMSUNG Electro Mechanics, DOOSAN Electronics, LG INNOTEX, SIMMTECH, KOREA CIRCUIT
POSCO, JEILJEDANG, DAEDUCK Electronics, TKC, ISU, TAESUNG, KIJOO, etc

"For customers interested in our products, please feel free to contact us.

We will be happy to send you a detailed catalog via email."
