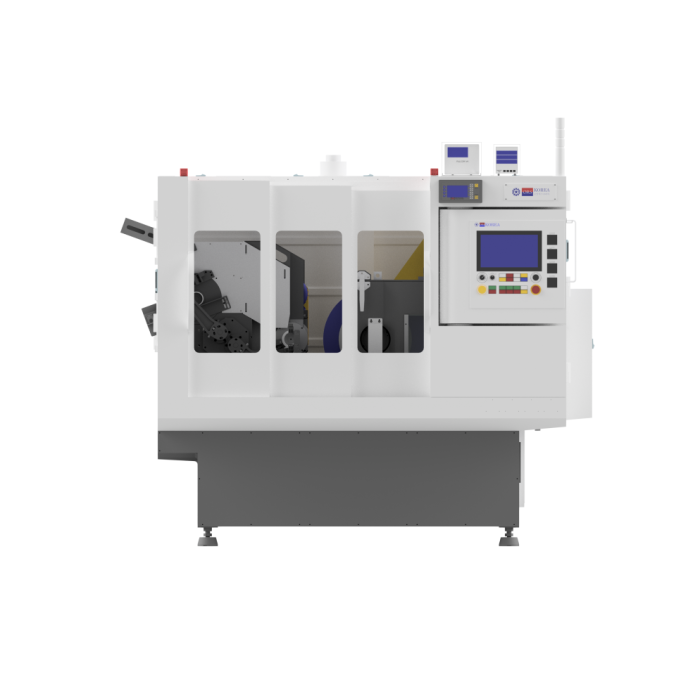

External Grinding Machine SGE-500
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Pieces
Detailed Description

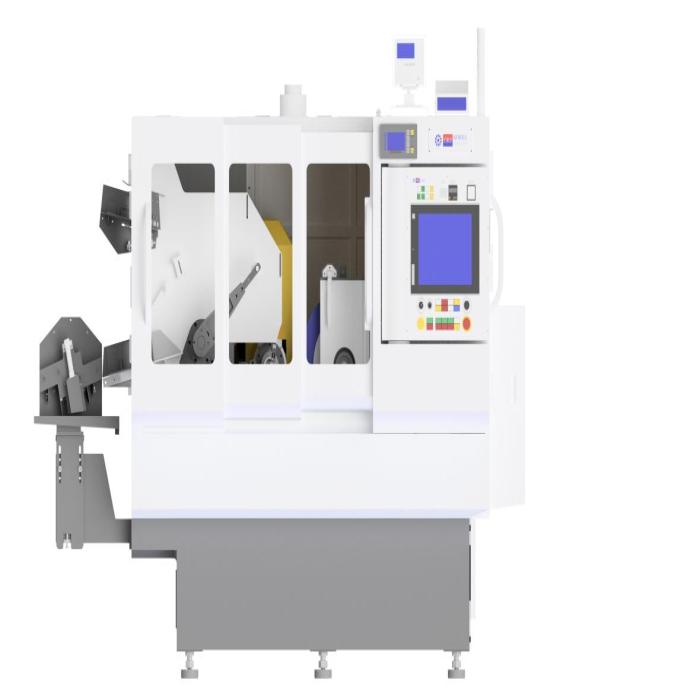

External Grinding Machine
The SGE 500 External Grinding Machine enchances precision and productivity for ultra-precision grinding. It has a robust L.M guide for precision transportation, minimizes thermal displacement and has low vibration and noise. It has various convenient functions to meet customer needs and standardized options for ultra-precision grinding.
Smart&Strong Grinding External 500
The SGE-500 External Grinding Machine by ORSKOREA a specialist grinding machine manufacturer maximazes productivity by precisely processing multiple products simultaneously.
Specifications
|
Part |
Deion |
|
Grinding Type |
NC Controlled Plunge |
|
Workpiece Mounting |
Two Shoe & Magnetic Chucking |
|
Machining Dia. Range |
20 to 100 |
|
Machining Width Range |
10 to 50 |
|
Loader |
Single or Double Arm Type |
|
Dress Type |
Forming Dresser Spindle |
|
Spindle Angle Range |
OPTION -6 to +35° |
|
W/H Rotating Angle |
0° to 30° |
|
Grinding Spindle |
Hydro-Static or Rolling Bearing Type |
|
Spindle Height |
About FL 1150 |
|
Work Spindle RPM |
150 to 1800 rpm |
|
Outer Dimension&Weight |
2100 x 1900 x 1950 H(mm) & 5.5 Ton |
Grinding Wheel
|
Part |
Deion |
|
Dia. |
510 mm |
|
Width |
50 mm |
|
Bore |
304.8 mm |
Motor
|
Part |
Deion |
|
G.W Table |
AC Servo 3.0 kW |
|
Dress Table |
AC Servo 1.5 kW |
|
Spindle Drive |
1.5 kW 4P AC motor |
|
G.W(Belt Drive) |
11 kW 4P AC motor |
|
Hydraulic |
1.5 kW 4P AC motor |
