Ultra 90BT
Choose from three types to suit your needs. This is the first of battery generator series.
User can select one device between 1.35kW and 2.4kW.
- Certification
-
- Award
-
- Shipping
-
- Lead Time7 ~ 50days
- Type of Freight Proceed after consultation
- Modes of Transport Proceed after consultation
- Products Shipped From Incheon
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 3 Pieces
Product Summary
• Brand name: Ecoview

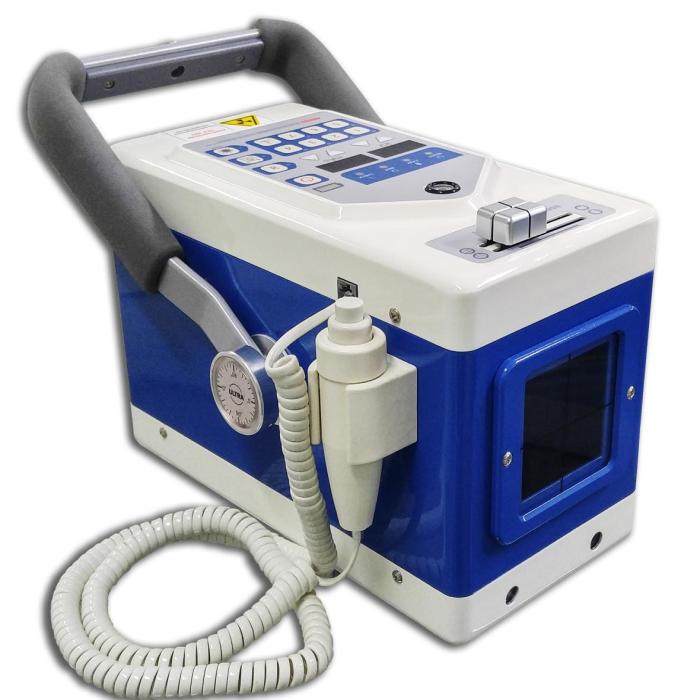

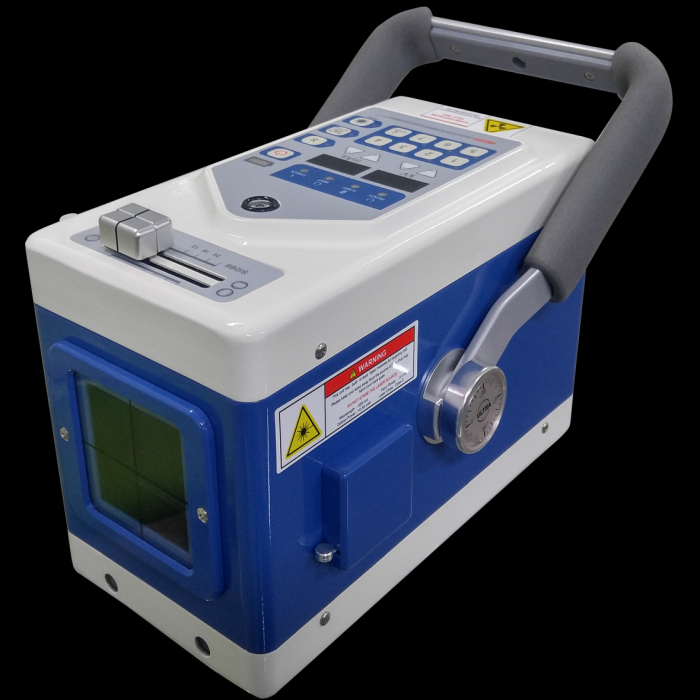

• Type: Battery powered X-ray portable generator
• Model Number: A2BT
• Usage: Diagnosis for medical sector, Diagnosis for veterinary
• Material: Composed with various materials as iron, lead.
• Size/Dimension: 280*140*186
• Shelf Life: No applicable
• Feature Built-in battery, hybrid type (use with AC power or Battery power), LED collimator lamp.
• Warranty: 16 months
• Certification: ISO, CE
Detailed Description
|
Model |
ULTRA 90BT |
|
|
Output |
Tube Vol./Current |
90kV/20mA |
|
Voltage range |
40~90kV |
|
|
mA Range |
12~20mA |
|
|
mAs Range |
0.32mAs~30mAs |
|
|
Max. Output |
1.35kW at 90kV |
|
|
Tube |
Model |
CEI OX/70 |
|
Focal Spot |
1.2 x 1.2mm |
|
|
Collimator |
Lamp |
LED (more than 130lux) |
|
X-ray field Size |
Max. 27 x 27cm @ 66cm SID |
|
|
Laser Pointer |
built-in dual laser |
|
|
Input Power |
Input |
100/240VAC (Free-voltage) |
|
Frequency/Phase |
50/60Hz, Single phase |
|
|
Features |
PROM Memory |
19 APR |
|
Weight |
8.6kgs |
|
|
Dimensions |
280 x 140 x 186mm |
|
|
Etc. |

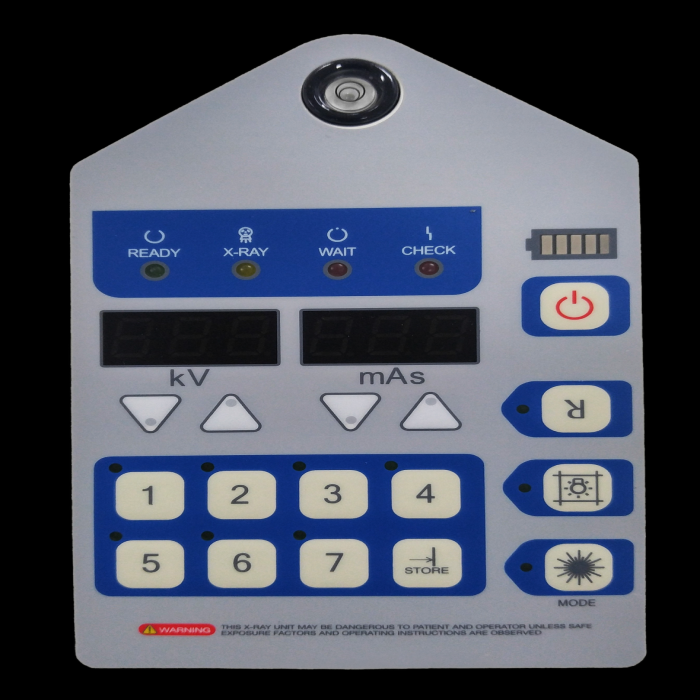

7-segment LED |
|
|
Battery |
Type |
Li-polymer |
|
Capacity(mAh) |
2,600mAh x 14 |
|
|
Exposures |
Approx. 500 exposures @ 80 kV, 2mAs |
|
|
Charging time |
Approx. 3.5hrs |
