Product Specifications



1. Measurement parameters

-     3ch ECG, NIBP, SpO2, Respiration, 4 IBP, 4 Temp, EtCO2, ICO,

    Multi Gas, BIS

-     PROCESSING PARAMETERS:

HR, NIBP(Systolic/Diastolic/Mean pressure), SpO2 Saturation, Pulse rate, Respiration, IBP, Temp, EtCO2, ICO, Multi Gas, BIS



1. Monitor Performances specifications

-     TFT Color LCD Display

-     Waveform Display Method: Scroll

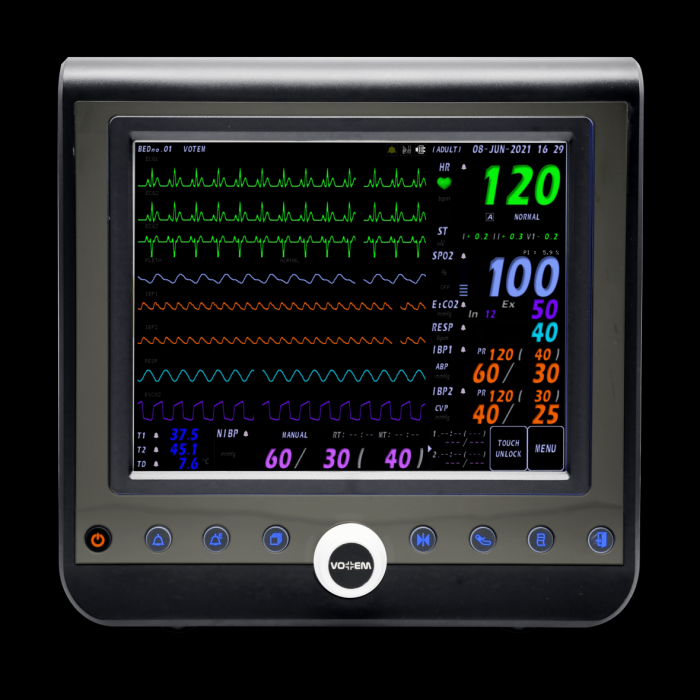

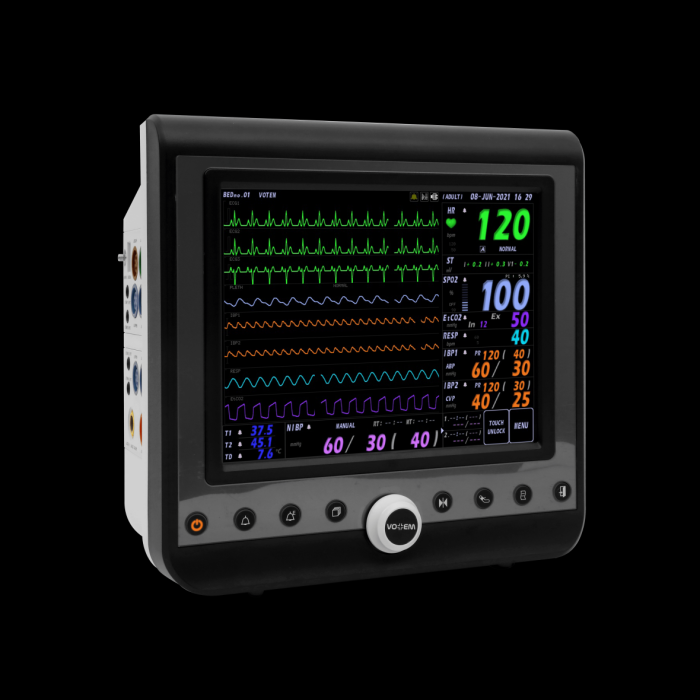

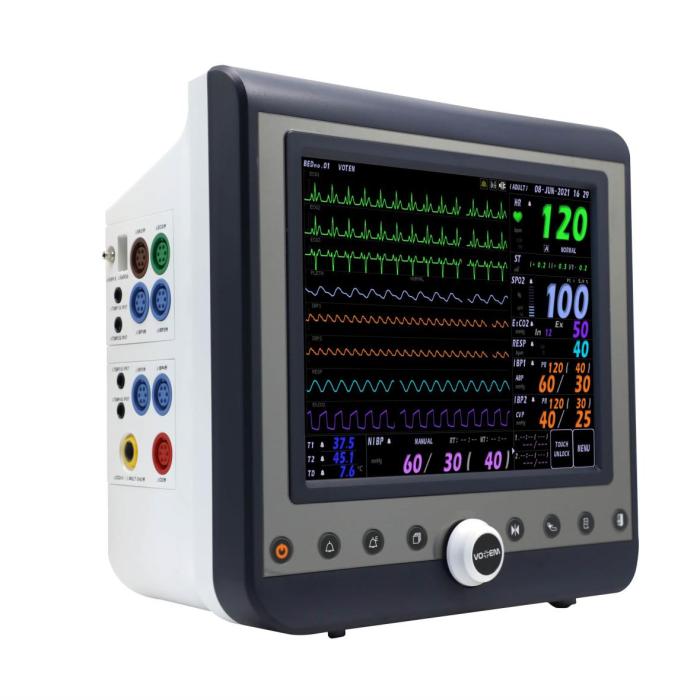

-     Display Size: VP-1200(12.1 inch) / VP-1000(10.4 inch)

-     Resolution       : VGA (800Х600)

-     Sweep Speed: 6.25, 12.5, 25, 50mm/sec

-     Display waveform Time: 2.5 sec

-     Waveform Freeze: Function of waveform freeze

-     Waveform Display: 3ch ECG, SpO2, 4 IBP, Respiration or EtCO2

-     Waveform Traces: 9 Traces

-     Measurement Value Display: Heart Rate, SpO2, Pulse Rate, NIBP,

                            4 IBP, 4 Temp, EtCO2, ICO, Multi Gas, BIS

1. ECG Measurement

-  ECG Wave:     3 leads (STD: I, II, III) – 1 Ch

              5 leads (OPT: I, II, III, aVR, aVL, aVF, V) – 3 Ch / 7 Ch

                     10 leads (OPT: I, II, III, aVR, aVL, aVF, V1~V6) – 12 Ch

-     Input: Installed the circuit for protecting from the high frequency electric potential of ESU, Defibrillator and so on.

-     Frequency Filter     : High frequency noise remove filter / Install the

50/60Hz power noise remove filter

-     Input Impedance : Greater than 5 M ohm(50/60)

-     Input for Initial Electric currency: Below 50 μA

-     CMRR: Greater than 120dB

-     Frequency Bandwidth:

0.5 ~ 40 Hz, 0.5Hz ~ 80Hz, 0.05Hz ~ 40Hz, 0.05Hz ~ 80Hz

-     Gain: 2.5, 5, 10, 20, 30, 40mm/mV, Auto

-     Calibration Waveform: 1mVp-p old waveform, ±10%

-     Input Range: Maximum Input Range:         ± 5mV



-   DC OFFSET: -300mV to 300mV

-     ARRHYHMIA Detect (TAC, BRD, PVC, VTAC, ASY, BGM, TGM, VENT,

VFIB, CPT, TPT, MIB, R on T)

-   ST Analysis range: -9.9mm ~ +9.9mm, Resolution: 0.1mm

-   Pacemaker Detect

-   HR Calculation: 4 ~ 16 wave

-   Defibrilator Sync





1. Heart Rate

-     Measurement Range: 0 ~ 300bpm

-     Accuracy: ± 2bpm (Measurement value)

-   Alarm Range : High alarm limit : 0 ~ 300, OFF

Low alarm limit : OFF, 0 ~ 300



1. SpO2 (Pulse Oximetery)

-     Measurement Range: 0 ~ 100%

-     Accuracy : 70 ~ 100% SpO2 : ± 2%,  50 ~ 69% SpO2 : ± 3%

20 ~ 49% SpO2 : Unspecified

-     Alarm Range :    High limit - 1 ~ 100% OFF

Low limit - OFF, 0 ~ 99%

-     Pulse Range : 0 ~ 300bpm

-     Pulse Measurement Accuracy : 0 ~ 240bpm ±2 bpm

                                  241 ~ 300bpm ±3 bpm



1. NIBP (Non-invasive Blood Pressure Measurement)

-     Measurement Method: Oscillometric, Automatic measurement

-     Display Value: Systolic, Diastolic, Mean Pressure

-     Measurement Range:   Adult – 0 to 300mmHg

                                         Neonate – 0 to 150mmHg

-     Accuracy : ±8 mmHg(SYSTOLIC, DIASTOLIC),  ±5 mmHg (MEAN)

-     Inflation pressure MAX : Adult – 300mmHg  + 5 mmHg

Neonate – 150mmHg  + 5 mmHg

-     Alarm Range

NIBP [mmHg]	Display	High	Low
	Systolic	5 ~ 275, OFF	OFF, 0 ~ 275
	Diastolic
	Mean







Auto Pressure : Manual, Automatic (1, 2, 3, 4, 5, 10, 15, 20, 30 min., 1, 2, 4, 8 ,12 hours interval)

-   NIBP STAT : 5 ~ 15 min

-   NIBP VENOUS STAT : 50 ~ 200 mmHg

-   NIBP MAX LIMIT : 70 ~ 300 mmHg



1. Respiration

-     Measurement Range: 0 ~ 200 bpm

-     Accuracy:  ±2% or ±2 bpm

-     Sweep Speed: 6.25, 12.5, 25, 50 mm/sec

-     Waveform Amplitude: x0.25, x0.5, x1, x2, x3, x4, AUTO

-     Apnea Alarm Range: OFF, 10 ~ 40 sec



1. IBP (Invasive Blood Pressure) - Optional

-      Measurement Range: -50 ~ 350mmHg

-      Channel: 2 channels (Option: 4 channels)

-      Accuracy:  ± 1%mmHg

-      Auto zero balancing range:  ±200mmHg

-   Alarm Range

IBP 1/2 [mmHg]	Display	High	Low
	Systolic	-50 ~ 350, OFF	OFF, -50 ~ 350
	Diastolic
	Mean



1. TEMP - Optional

-  Measurement Range: 0 ~ 50℃

-  Accuracy: 0℃ ~ 24.9℃ ± 0.2℃, 25.0℃ ~ 50.0℃ ± 0.1℃

-  Alarm Range:         High alarm limit - 0.1℃ ~ 50℃, OFF

Low alarm limit - OFF, 0.1℃ ~ 50℃



1. EtCO2 (End-Tidal CO2) – Optional

1. Microstream

-  Measurement Mode: Microstream

-  Range: 0 ~ 99mmHg

-  Temperature: 0~50℃





-     Accuracy:

Time	* CO2 Density	** Accuracy
0 ~ 20 min	0~38mmHg	±4mmHg
	39~99mmHg	±12%
After 20 in	0~38mmHg	±2mHg
	39~99mmHg	±5% of reading + 0.08% for every 1 mmHg(above 38mmHg)

* (760 mmHg) level

** It is accuracy for greater than 80bpm of respiration. In case of greater than 80bpm, EN864/ISO9918  (4mmHg or  ±12%) standard

accuracy is same as greater than 18mmHg of EtCO2 same.

-     Respiration Measurement Range: 0 ~ 150bpm

-     Respiration Accuracy: 0 ~ 70bpm  ±1bpm

71 ~ 120bpm  ±2bpm

121 ~ 150bpm  ±3bpm

-     Initial Time: Self test for 30 seconds after turning on the device.

-     Sampling Value: 50ml/min  ±7.5ml/min

-     Period of calibration: 1 year after operating or operating for 4,000 hours

-     Response Time: 2.9 seconds after measurement (including rising time and delay time)

; Rising Time – 190m sec , Delay Time – 2.7 sec

1. Mainstream

- Initial time : less than 15 seconds (25℃)

- CO2 measurement range : 0 ~ 150mmHg, 0 ~ 19.7%,

0 ~ 20 kPa(at 760mmHg)

- CO2 resolution : 0 ~ 69 mmHg à 0.1mmHg

                70 ~ 150 mmHg à 0.25mmHg

- CO2 accuracy : 0 – 40 mmHg     à ±2 mmHg

               41 – 70 mmHg    à ±5% of reading

               71 – 100 mmHg   à ±8% of reading

               101 – 150 mmHg  à ±10% of reading

- Respiration Measurement Range : 0 ~ 150 BPM

- Respiration Accuracy : ±1 BPM

- Required voltage : +0.5 VDC,  1.125 W (Max 1.5 W)



- Temperature/Humidity: operating environment à 0 ~ 45℃, 10 ~ 90% RH.

                       custody environment à -40 ~ 70℃, < 90% RH.

- Waterproof : IPX4 – Splash-proof (sensor head only)



1. Sidestream

- Initial time : less than 20 seconds (25℃)

- CO2 measurement range : 0 ~ 150mmHg, 0 ~ 19.7%,

0 ~ 20 kPa (at 760mmHg)

- CO2 resolution : 0 ~ 69 mmHg à 0.1mmHg

                 70 ~ 150 mmHg à 0.25mmHg

- CO2 accuracy : 0 – 40 mmHg     à ±2 mmHg

                41 – 70 mmHg    à ±5% of reading

                71 – 100 mmHg   à ±8% of reading

                101 – 150 mmHg  à ±10% of reading

                More than 80 BPM ±12%

- Respiration Measurement Range : 2 ~ 150 BPM

- Respiration Accuracy : ±1 BPM

- Required voltage : +0.5 VDC ±5%

- Temperature/Humidity: operating environment à 0 ~ 40℃, 10 to 90% RH.

                       custody environment à -40 ~ 70℃, < 90% RH.

- Waterproof : IPX4 – Splash-proof (When sample cell is inserted in sample cell receptacle)



1. Cardiac Output - Optional

- Measurement Method :                 Thermodilution

- Measurement range :                    0.1 ~ 20 L/min

- Repeatability :                              2% or 0.2 L/min

- Injectate temperature range :         0 ~ 27 ℃

- Blood temperature range :             30 ~ 40 ℃

- Injectate volume:                           3, 5, 10cc

- Catheter :                                     Swan-Ganz Standard  Thermodilution

Pulmonary Artery Catheter

(Edward’s Life Sciences)







1. Multi-Gas Concentration Measurement (Multi-Gas Agent) - Optional



1. Common Specification (Mainstream and Sidestream)
   • Operation Environment : at. pressure 525~1200hPa, temp 10~40℃, humidity 10~95%RH
   • Custody Environment : at. pressure 500~1200hPa, temp -20~75℃, humidity 5~100%RH
   • Measurement range and accuracy : (standard : 22±5℃, 1013±40hPa)
   • Respiration measurement range : 0 ~ 150bpm
   • Respiration accuracy :  0 ~ 70bpm ±1bpm

type	range	accuracy
CO2	0 ~ 10% 10 ~ 15% 15 ~ 25%	±(0.2 vol% + 2% of reading) ±(0.3 vol% + 2% of reading) Unspecified
N2O	0 ~ 100%	±(2 vol% + 2% of reading)
HAL, ISO, ENF	0 ~ 8% 8 ~ 25%	±(0.15 vol% + 5% of reading) Unspecified
SEV	0 ~ 10% 10 ~ 25%	±(0.15 vol% + 5% of reading) Unspecified
DES	0 ~ 22% 22 ~ 25%	±(0.15 vol% + 5% of reading) Unspecified
O2 (Sidestream Only)	0 ~ 100%	±(1 vol% + 2% of reading)

71 ~ 120bpm ±2bpm

121 ~ 150bpm ±3bpm

• • Sampling volume : 50ml/min ±7.5ml/min
  • Period of Calibration  : one year after operating or operating for 4,000 hours.
  • Response time : within 2.9 seconds after measurement ( including rising time and delay time)

; rising time – 190 sec , delay time – 2.7 sec

• • interface : RS-232 serial interface(9600bps)



1. Mainstream

- Size(WⅹDⅹH) : 38ⅹ37ⅹ34 mm

- Weight : 25g( not including cable )

- Initial time : within 20 seconds (25℃)

- Surface temp : 50℃ max(at ambient temp. 23℃)

- Required voltage : 5±0.5 VDC,  1.4 W max

- Airway Adaptors

; Disposable Adult/Pediatric :

   Adds less than 6ml deadspace

   Pressure drop less than 0.3cm H2O @ 30 LPM

; Disposable Infant :

   Adds less than 1ml deadspace

   Pressure drop less than 1.3cm H2O @ 10 LPM



1. Sidestream

- Size(WⅹDⅹH) : 33ⅹ78ⅹ49 mm

- Weight : 130g( including cable )

- Initial time : within 20 seconds (25℃)

- Required voltage : 5±0.5 VDC, 1.6 W(2.0 W peak)

- Water Handling : Sampling line with proprietary water removal tubing

- Sampling Lines : 2 ± 0.1 m and 3 ± 0.1 m versions

- Sampling Flow Rate : 50 ± 10 ml/mm



1. Printer - Optional

-      Print Method: Thermal

-      Type: Internal

-      Print Mode

a. BOTH (Max 3 Wave) + Trend

b. Wave (Max 3 Wave)

c. Trend

-      Paper Width: 57mm

-      Valid Width: 120 ~ 300mm (Change to 25mm step)





1. TREND

-     Parameter: Heart Rate or Pulse Rate, SpO2, NIBP, IBP, Temp,

ST Segment, EtCO2, Multi gas, BIS, ICO

-     7 Days trend data save



1. Interface

-  RS-232C port

-  LAN Port (Central Monitor)

-  VGA Port (Display Transferring)

-  SD CARD

-  ECG Output port



1. Physical Specifications

-     Size: 290 x 175 x 280 mm (W x D x H)

-     Weight: 7.0kg (with battery)

-     Power Requirement: 1.2A, 100-240V~, 50/60Hz

-   Power consumption: 80VA (MAX)

-     BATTERY (1 Cell): 11.1V 4400mAh

; Recharge Time     – 9 hours, Discharge Time – 120minutes



1. Operating Environment

-     Temperature: (Operating: 10°C ~ 35°C / Storage: -10°C ~ 50°C)

-     Humidity: (Operating: 30 ~ 85% / Storage: 20 ~ 95%)

-     Atmospheric Pressure: 700 to 1060 hPa



1. Standard Accessories

-     Patient Cable (5 leads)                   1 ea

-     NIBP cuff for adult                         1 ea

-     NIBP Hose                                    1 ea

-     Power Code                                  1 ea

-     Electrode (5pcs/set)                      1 set

-     SpO2 Sensor (Reusable)                1 ea

-     Operation Manual                           1 ea





1. Optional Accessories

-     ECG 3 leads Cable

-     EKG 5 leads Cable

-     SpO2 Extension Cable

-     Press Measuring Kit

-     Printer Module

-     Roll Paper(18M)

-     Ground Cable

-     NIBP cuff for neonate, Child

-     Temperature sensor

-     EtCO2 Kit set (EtCO2 when operating)

-     Multi Gas Kit set

-   Multi Gas Extension Cable

-     ICO Cable

-     3M Electrode (50 PCS/1SET)

-     Battery 11.1V, 4400mAh

-     Trolley (=Cart)

-     Wall Mount

-     Disposable SpO2 Sensor

-  BIS Extension Cable

-  EEG Cable
