ㅇ Features
- High speed switching with SiC MOSFET
- Reliable body diode
- Compact and low stray Inductance
- Built-in NTC
- Blocking Voltage 1200V with SiC MOSFET
- Short time extended Operation Temperature Tjop=175°C
- 2.5KV AC 1min Insulation

ㅇ Deion
A six-PAK module is equipped with six-SiC, which usually have 1200V blocking voltage capability.
Nearly all modules are equipped with an NTC alongside the power semiconductors.
Power modules with a six-PAK topology are most frequently used as inverters in frequency converters for motors.

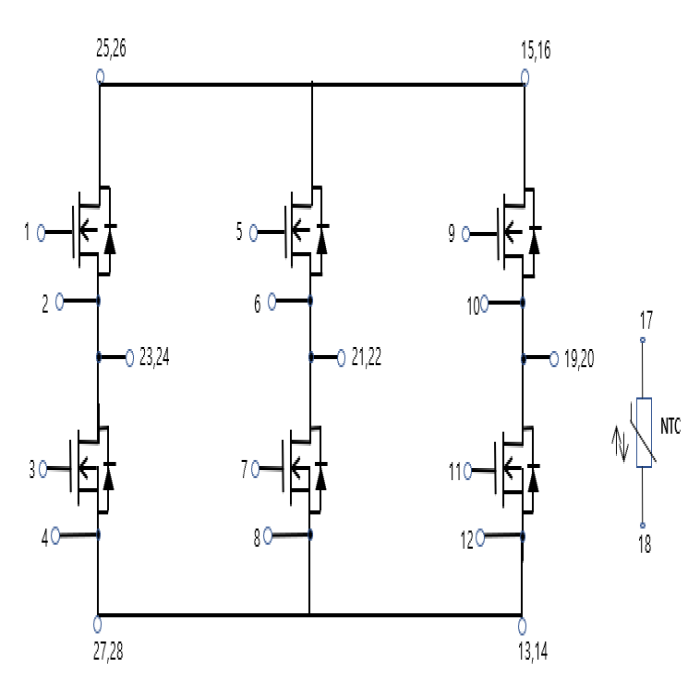

The six-PAK is a product that integrates a 3-phase Inverter circuit into a single module, making it possible to
create a compact design for the main circuit. solderless terminals are available for connection to the module
terminal and the printed circuit board

ㅇ Applications
AC Motor Motion /servo control Inverter and power supplies

ㅇEquipped with six-SiC, which usually have 1200V blocking voltage capability.

ㅇNearly all  modules  are  equipped  with an NTC alongside  the power  semiconductors.

ㅇPower modules with a six-PAK topology are most frequently used as inverters  in  frequency converters for motors.

ㅇThe six-PAK is a product that integrates a 3-phase inverter circuit into a single  module, making it possible to create a compact design for the main circuit. solderless terminals are available  for connection to the module terminal and the printed circuit board.
