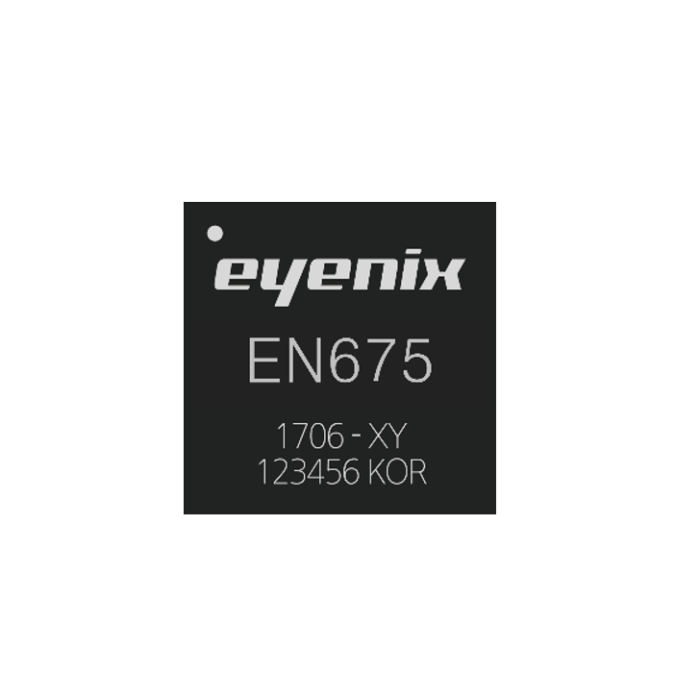

The EN675 SoC provides high-performance consumer product line and IP camera solutions. The ISP inside supports image enhancement and noise reduction functions such as 3A (AE, AF, AWB) and ADNR. It also supports a various type of analog and digital image sensor interfaces to work and control seamlessly in image processing path. A multi-channel digital input from outside is capable, and supports PIP, Image stitching and Image blending functions which can change channels flexible. Also, it supports LCD Interface (Parallel, SPI), CVBS and digital outputs. The EN675X adopts H.265+, H.264+, JPEG, and MJPEG to enable encoding and decoding with multiple resolutions. This chip provides wired/wireless network, SD card, USB storage functions through USB 2.0 MAC, Ethernet MAC (10/100/1000Mbps), and SDIO. The 64-bit RISC-V based quad-core CPU is embedded in SoC to leverage performance and power consumption. The debugger and compile environment are provided for developer’s convenience. EN675 Series support AI object recognition features even through analogue transmission as well as IP network, and since it has small sized package with embedded memory, customers can make cost effective surveillance cameras by using less PCB than other solutions.

EN675 X Series

Processor Core
▪ 64bit RISC-V Quad core up to 594MHz
- 16KB I-cache, 16KB D-cache
▪ Integrated double-precision FPU
▪ JTAG (33MHz hi-speed JTAG debug)
▪ 256KB on-chip SRAM
Video Codec
▪ H.264/265 Encoder
- Real-time hard-wired H.264/265 encoding
- 5M 30fps + HD 30fps + VGA 30fps
- 4K 30fps + VGA 30fps
▪ H.264/265 Decoder
- Real-time hard-wired H.264/265 decoding
- 4K 30fps
▪ JPEG Encoder/Decoder
- Up to 4K 30fps
▪ H.265 + H.264 + MJPEG triple-streaming
▪ CBR/VBR control
Image Processing
▪ RGB interpolation
▪ Multi-exposure WDR (line-interleaved-sensors) with local tone mapping
▪ 3 Auto controller (AE, AF, AWB)
▪ 2D/3D adaptive digital noise reducer
▪ Adaptive contrast enhancement
▪ Auto defect detection and correction
▪ Edge enhancement
▪ Gamma correction
▪ HUE controller
▪ Pseudo color suppression
▪ Highlight masking
▪ Moving object detection
▪ OSD (Box, Font)
▪ 4 channel down scaler
▪ Digital zoom
▪ Anti-fog
▪ 4 channel PIP
▪ Image stitching/blending
Video Interfaces
▪ Sensor input
- MIPI CSI-2, Parallel 12bits
▪ Digital input
- BT.601(8b), BT.656(8b), BT.1120(8/16b)
- Up to 4 channels
▪ Digital output
- BT.601(8b), BT.656(8b), BT.1120(8/16b)
- LCD Interface (SPI/MCU/RGB Parallel)
- Up to 2 channels
▪ Analog output
- CVBS, HD Analog
Audio Interfaces
▪ I2S interface for external audio Codec
▪ Integrated audio codec supporting 8-, 16-, 24-, 32-bit audio inputs and outputs
▪ Compliance with the G.711 and PCM protocols
On-Chip Interconnect
▪ Network-on-chip architecture based on AMBA AXI and APB protocol
Neural Processing Unit
▪ Computation Units
- 1024 MACs for main computation unit
- 96 MACs for HW dedicated convolution
▪ Supported Layers
- CONV, DW CONV, Activation, Pooling, Upscale
▪ Support 8-bit integer, Pytorch framework
Peripheral Interfaces
▪ Universal Peripherals (GPIO 72 mux)
- Timer/PWM 39ch
- UART 9ch
- I2C Master/Slave 9ch
- SPI Master 9ch
- Ethernet 10/100/1000 MAC Controller
(MII/RMII/RGMII)
- USB2.0 ULPI Controller
- I2S Master/Slave 1ch
- IR Receiver 1ch (NEC)
▪ SDIO2.0 2ch for Wi-Fi and SD Card
▪ On-chip ADC (4ch mux type)
Security Accelerator
▪ SHA-224/256
▪ AES-128/256 with ECB/CBC mode
▪ Checksum 16bit
Memory Interface
▪ DDR-SDRAM Interface
- DDR3/DDR3L/LPDDR3 with 32-bit data bus
- Maximum capacity: 8Gb
▪ SPI NOR Flash Interface
- 3-/4-byte address, 1-, 2-, 4-line mode
- Maximum capacity: 512Mb
▪ SPI NAND Flash Interface
- 1-, 2-, 4-line mode
- Maximum capacity: 2Gb
System Control
▪ Clock and Reset
▪ I/O Controller
▪ DMA 16ch
Physical Specifications
▪ Operating Voltages
- 1.8V/3.3V I/O
- 1.0V Core Power
- 1.2V/1.35V/1.5V DDR-SDRAM Memory Power
▪ Package
- 419 ball FBGA 14mm x 14mm
