ANSI Butterfly Valve
Request For Quotation
ANSI Butterfly Valve
- Award
-
- Shipping
-
- Lead Time15 ~ 30days
- Type of Freight AT,MM,MT
- Modes of Transport EXW,FOB
- Products Shipped From Busan
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 100 Pieces
Detailed Description

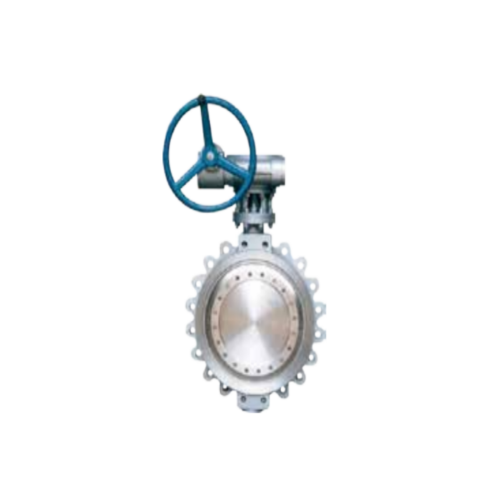

ANSI Butterfly Valve

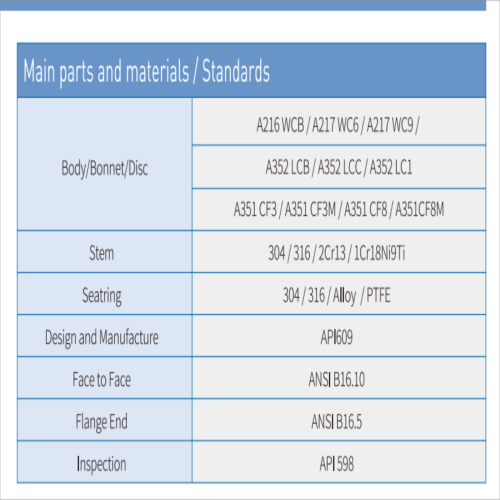

MAIN PARTS AND MATERIALS/STANDARS
BODY/BONNET/DISC:
A216WCB/A261WC6/A217WC9/A352LCB/A351CF3M/A351CF8/A351CF8M
STEM:A182F6/A182F304/A182316/A182F304L/A182F316L
SEAT RING: A105+13CR/A105+STL/A351CF8M
DISC RING:13CR/STL/A351CF8/CF8M
DESIGN AND MANUFACTURE:BD1868/ANSIB16.34
FACE TO FACE:ANSI B16.10
FLANGE END:ANSI B16.5
INSPECTION:API598
PRESSURE-TEMP RATING: ANSI B16.34
By JOEUN YUANDA VALVE CO., LTD.
