Wrapping Robot
- Award
-
- Shipping
-
- Type of Freight MT
- Modes of Transport FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 ea
Detailed Description

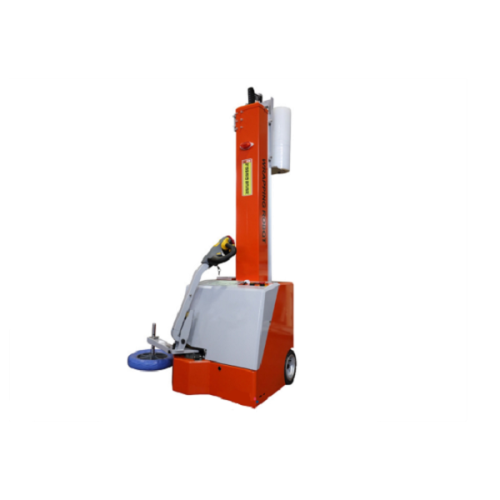

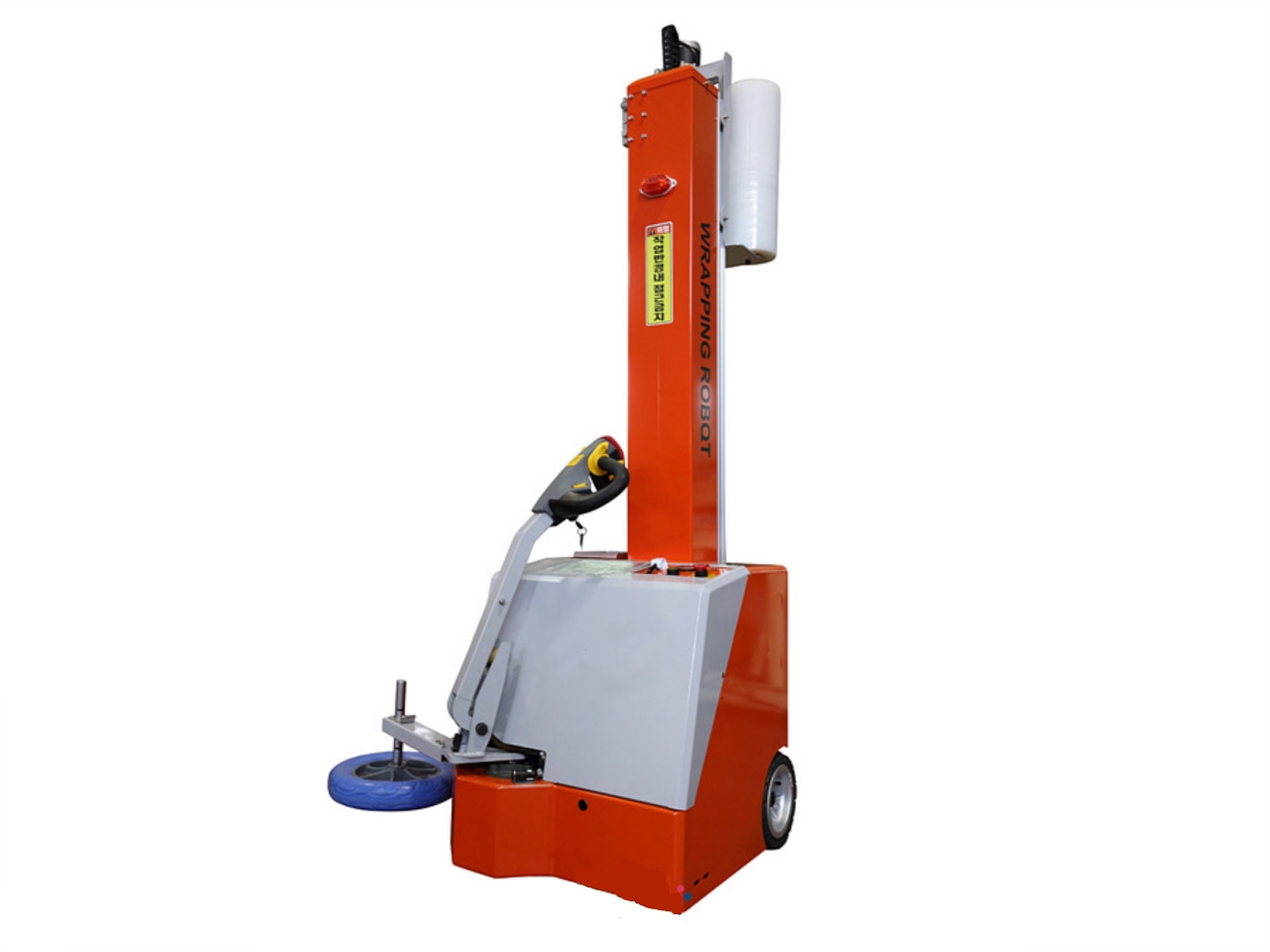

A battery operated Wrapping Robot which is ideal for when you need to wrap in a variety of locations or have a limited amount of floor space. The Wrapping Robots are the perfect solution to wrapping oversized pallets which would normally create an overhang and therefore a Health & Safety risk on a standard sized turntable without going to the extra expense of a bespoke made extra large turntable.
Wrapping Robot reduces lab work process and manpower, enhances the elegance of the product and the completeness of the packaging.
- It is a pure domestic technology developed to improve the harsh labor environment!
- Agile and versatile products can be packed.
- Various safety devices ensure safe use for everyone.
- Designed to be compact enough for the job site, it is a minimally optimized wrapping robot.
- Various program operations are possible.
★Safety Department ※Preventing from danger by installing carriage fall prevention device.
1. The distance can be set with the ultrasonic sensor and the safe working area can be determined.
2. Emergency stop button is installed on the handle and body and can be stopped or advanced at any time.
3. During operation, the warning light will light up to warn you around you that you can work safely.
4. If you recognize the danger, stop it and if the risk is removed or canceled, proceed again automatically.
Product size
| Effective wrapping height (mm) | 2000(basic), 2300, 2500, 2700(option) |
| Dimension (L*W*H) (mm) | 1230*1050*2000 (Max. 2700) |
| Weight (kg) | 310 |
Technical features
| Main control | P.L.C (touch monitor) |
| Batteries | DC 12V (90A) *2 |
| Power supply (V) | AC 110~230 (1ph) |
| Pallet for single battery charger) (n.) | 150~200 |
| Rotation speed (m/min) | 20~90 |
| Upward-downward carriage speed (m/min) | 1~5 |
| Drive power (W) | 900 |
| Strength-adjustment | Wrap tension-adjustment (200%) |
| Safety | This machine comes to an automatic stop, when a person comes near it. |
Film features
| Maximum external diameter (mm) | 300 |
| Internal diameter (mm) | 76 |
| Film thickness (μm) | 15 ~ 35 |
| Spool height (mm) | 500 |
| Maximum spool weight (kg) | 20 |
Wrapped product size
| Minimum dimension (mm) | 600*600 |
| Maximum height (mm) | 2700 |
| Minimum weight (kg) | 250 |
31Pack. Co. LTD is a specialized company making automatic packing machine,
since 1987 we have been working the best with high technology and offering reliable warranty.
