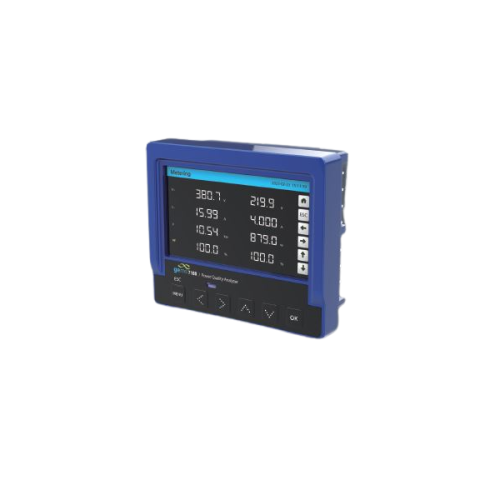

HIGH PERFORMANCE DIGITAL
POWER QUALITY METER
1. 2 three-phase power quality meters
Measure 2 three-phase loads and three-phase and single-phase
loads simultaneously
2. CT with leakage measurement
Designed for use of two frames with dualing shield leakage current
measurement technology. It is suitable for power quality, leakage
current, and high-precision current monitoring.
3. Quick Click plug-and-play technology
Gems7100 installation saves up to 95% of installation time compared
to standard CT and leakage CT installation.
4. Power redundancy
To use two operation power sources, AC220V and 24VDC.
It is possible to measure power by supplying power stably even if the
operation power supply is disconnected.
5. Gateway function
Transmission and confirmation of flow rate data through RS-485
communication.
6. IEC-61000-4-30 Class S Level
7. Statistical Data
Provides information such as max., min., average of voltage,
current, and power. It is possible to precisely analyze the quality
trends of voltage, current, and power because it contains information
on instant fluctuations in measurement parameters
8. Power quality measurement
Voltage, Current harmonics (61st)
Voltage Sag / Swell
Voltage, Current unbalance rate
ITIC support and EN50160 report support
9. Accuracy
IEC 62053-22 class 0.2
10. True RMS
High-level sampling technology - 533 sampling / cycle(60Hz)
11. Certification
Safety and reliability secured by KC / CE / UL
