AI-powered Sound Determination Sensor for Robots such as Robot's Ear
• By intelligently analyzing surrounding sounds, it instantly determines the direction, distance, and characteristics of sounds, providing real-time alerts via data or an intuitive icon-based display.

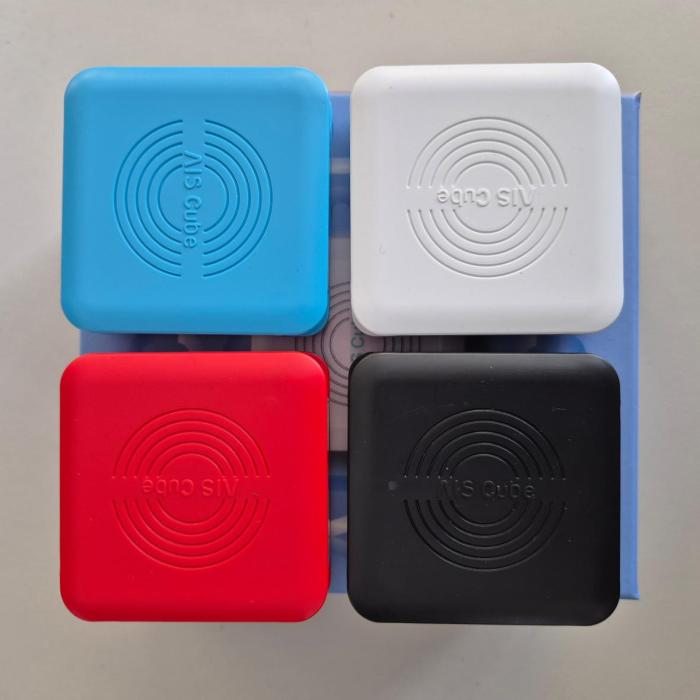

• AI-powered SDS can be provided by multiple colors like White, Red, Blue and Black. For Robots, it can be provided by PCB assembly type with a source code.
- Certification
-
- Award
-
- Shipping
-
- Lead Time30 ~ 180days
- Type of Freight AT
- Modes of Transport FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 100 Pieces
Product Summary
• By intelligently analyzing surrounding sounds, it instantly determines the direction, distance, and characteristics of sounds, providing real-time alerts via data or an intuitive icon-based display.
• The sensor can be seamlessly integrated into any kind of robot or vehicle, enhancing safety and awareness in blind spots and challenging weather conditions. It can also be carried by individuals with hearing loss, acting as a personal "sound guide" for improved situational awareness and navigation.
• This device empowers both autonomous systems and individuals with hearing impairments, creating a safer world for all.
Detailed Description
• AI-Powered Sound Determination Sensor redefines situational awareness by accurately determining the direction, distance, and characteristics of surrounding sounds, even in challenging conditions e.g., blind spots or inclement weather. This breakthrough is achieved through a proprietary "quadruple right-angle" acoustic sensing array and algorithm, combined with AI based recognition and classification capabilities.
• The sensor's exceptional hearing sensitivity of -36dBFS surpasses that of human ears, enabling it to detect and analyze a wide range of potential hazards, including collisions, sirens, braking sounds, motorbikes, horns, and more. Identified sounds appear on a monitor as intuitively recognizable icons, providing immediate actionable alerts and enhancing safety e.g., for autonomous robots, vehicles or individuals with hearing loss.
• The product's compact and modular design is comprised of three key components:
- Sound Detecting Block: Equipped with four built-in micro-electromechanical system sensors arranged in a proprietary quadruple attitude (square configuration) acoustic sensing structure, capturing sounds from all directions with remarkable precision.
- Sound Recognition Block: Employs AI algorithms to analyze the captured sounds, classifying their source and determining their direction, distance and characterics.
- Display Driver: Presents the processed sound information as clear icons on the monitor or sending datas, along with real-time noise level monitoring for comprehensive environmental awareness.
• Display on a smart phone and/or PC monitor
• Dimensions: 62 x 62 x 21 (mm)
• Color: White, Red, Blue, Black
• Power: 5V 3A DC by a smartphone charger
