- PID
- 3614902
Doosan Genset Assy and Parts
- Award
-
- Shipping
-
- Type of Freight MT
- Modes of Transport CFR,EXW,FOB
- Products Shipped From Busan
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 500 Pieces
Detailed Description

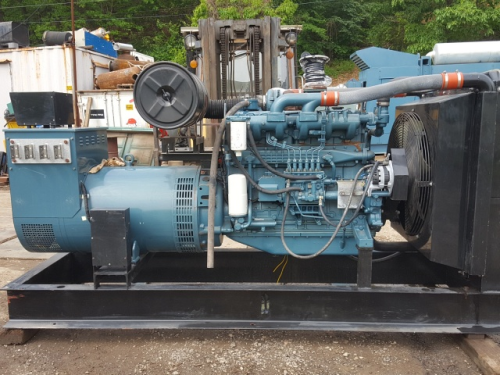

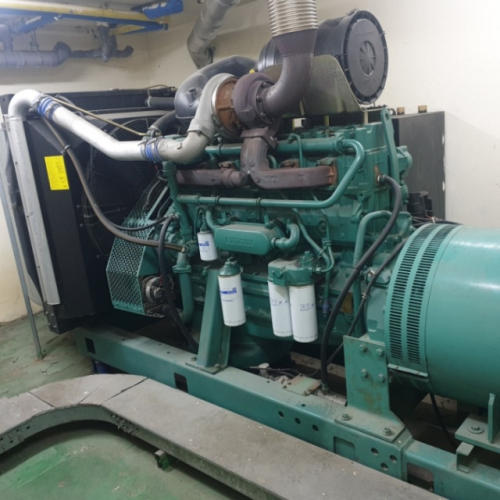

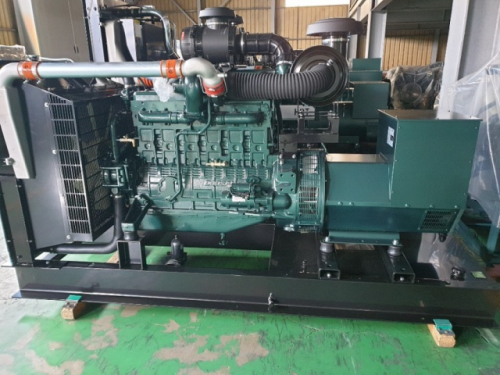

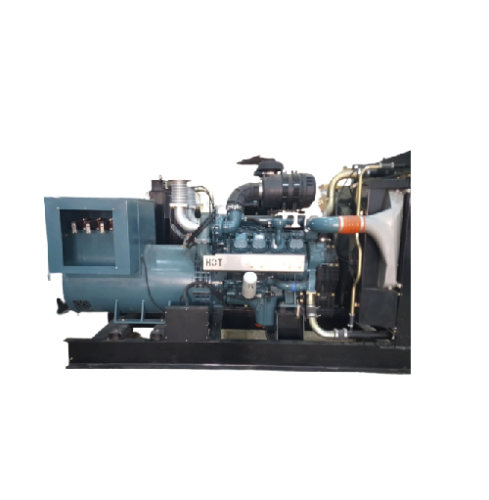

Doosan Gen-Set Assy and Parts
We are experts in engine part exportation.
We offer Gen-Set engines and parts according to the customers' needs.
We service the engines ourselves, so you can install it and use it with ease.
We can provide speedy delivery service worldwide, so do not hesistate to order.
Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts.Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts.Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts.Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts.Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts.
Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts.Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts.Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts.Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts.Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts.
| ※ HYUNDAI GENERATOR | |||||||||
| A) DAEWOO 1 | |||||||||
| SET MODEL | DWG60E | DWG90E | DWG130E | DWG170E | DWG175E | ||||
| Stand-by Power | KW | 60/50 | 90/75 | 130/104 | 170/145 | 175/ | |||
| KVA | 75/63 | 112/94 | 162/130 | 212/181 | 218/ | ||||
| Prime Power | KW | 56/46 | 82/64 | 118/94 | 154/132 | 159/ | |||
| KVA | 69/58 | 103/85 | 148/118 | 192/165 | 199/ | ||||
| Frequency | Hz | 60/50 | |||||||
| RPM | RPM | 1800/1500 | |||||||
| Pole, Phase, Wire | 4 Pole / 3 Phase / 4 Wire | ||||||||
| Insulation Class | H Class | ||||||||
| Power Factor | 0.8 | ||||||||
| Exciting System | Brushless Self Exciting | ||||||||
| Voltage | V | 220/127, 380/220, 440/254, 3300, 6600V | |||||||
| B) DAEWOO 2 | |||||||||
| SET MODEL | DWG200E | DWG275E | DWG300E | DWG330E | DWG360E | ||||
| Stand-by Power | KW | 200/178 | 275/249 | 300/266 | 330/292 | 360/329 | |||
| KVA | 250/223 | 343/311 | 375/333 | 413/365 | 450/411 | ||||
| Prime Power | KW | 182/158 | 250/211 | 273/241 | 300/265 | 327/299 | |||
| KVA | 228/198 | 313/264 | 341/301 | 375/331 | 409/374 | ||||
| Frequency | Hz | 60/50 | |||||||
| RPM | RPM | 1800/1500 | |||||||
| Pole, Phase, Wire | 4 Pole / 3 Phase / 4 Wire | ||||||||
| Insulation Class | H Class | ||||||||
| Power Factor | 0.8 | ||||||||
| Exciting System | Brushless Self Exciting | ||||||||
| Voltage | V | 220/127, 380/220, 440/254, 3300, 6600V | |||||||
| C) DAEWOO 3 | |||||||||
| SET MODEL | DWG400E | DWG450E | DWG500E | DWG550E | |||||
| Stand-by Power | KW | 400/378 | 450/375 | 500/456 | 550/495 | ||||
| KVA | 500/472 | 562/468 | 625/570 | 687/618 | |||||
| Prime Power | KW | 364/332 | 409/341 | 455/407 | 500/450 | ||||
| KVA | 455/415 | 511/426 | 569/534 | 625/562 | |||||
| Frequency | Hz | 60/50 | |||||||
| RPM | RPM | 1800/1500 | |||||||
| Pole, Phase, Wire | 4 Pole / 3 Phase / 4 Wire | ||||||||
| Insulation Class | H Class | ||||||||
| Power Factor | 0.8 | ||||||||
| Exciting System | Brushless Self Exciting | ||||||||
| Voltage | V | 220/127, 380/220, 440/254, 3300, 6600V | |||||||
| D) DAEWOO 4 | |||||||||
| SET MODEL | DWG610E | DWG660E | DWG700E | DWG750E | |||||
| Stand-by Power | KW | 610/567 | 660/ | 700/595 | 750/610 | ||||
| KVA | 762/662 | 825/ | 857/744 | 937/763 | |||||
| Prime Power | KW | 555/516 | 600/ | 637/542 | 682/555 | ||||
| KVA | 694/645 | 750/ | 797/678 | 852/694 | |||||
| Frequency | Hz | 60/50 | |||||||
| RPM | RPM | 1800/1500 | |||||||
| Pole, Phase, Wire | 4 Pole / 3 Phase / 4 Wire | ||||||||
| Insulation Class | H Class | ||||||||
| Power Factor | 0.8 | ||||||||
| Exciting System | Brushless Self Exciting | ||||||||
| Voltage | V | 220/127, 380/220, 440/254, 3300, 6600V | |||||||
| A) HYUNDAI 1 | |||||||||
| SET MODEL | DWG15H | DWG26H | DWG35H | DWG40H | DWG55H | DWG70H | DWG85H | DWG115H | |
| Stand-by Power | KW | 15/13 | 26/22 | 35/29 | 40/33 | 55/46 | 70/58 | 85/71 | 115/96 |
| KVA | 19/16 | 33/28 | 44/37 | 50/42 | 69/58 | 88/73 | 106/89 | 144/120 | |
| Prime Power | KW | 14/12 | 24/20 | 32/27 | 36/30 | 50/42 | 64/53 | 77/64 | 105/88 |
| KVA | 18/15 | 30/25 | 40/33 | 45/38 | 63/53 | 80/67 | 96/80 | 131/109 | |
| Frequency | Hz | 60/50 | |||||||
| RPM | RPM | 1800/1500 | |||||||
| Pole, Phase, Wire | 4 Pole / 3 Phase / 4 Wire | ||||||||
| Insulation Class | H Class | ||||||||
| Power Factor | 0.8 | ||||||||
| Exciting System | Brushless Self Exciting | ||||||||
| Bearing | Single Bearing | ||||||||
| Voltage | V | 220/127, 380/220, 440/254, 3300, 6600V | |||||||
| B) HYUNDAI 2 | |||||||||
| SET MODEL | DWG165H | DWG200H | DWG230H | DWG275H | DWG300H | DWG320H | DWG360H | ||
| Stand-by Power | KW | 165/138 | 200/167 | 230/192 | 275/229 | 300/250 | 320/- | 360/329 | |
| KVA | 206/172 | 250/208 | 288/240 | 344/287 | 375/313 | 400/- | 450/411 | ||
| Prime Power | KW | 150/125 | 182/152 | 209/174 | 250/208 | 273/228 | 291/- | 327/299 | |
| KVA | 188/157 | 228/190 | 261/218 | 313/261 | 341/284 | 364/- | 409/374 | ||
| Frequency | Hz | 60/50 | |||||||
| RPM | RPM | 1800/1500 | |||||||
| Pole, Phase, Wire | 4 Pole / 3 Phase / 4 Wire | ||||||||
| Insulation Class | H Class | ||||||||
| Power Factor | 0.8 | ||||||||
| Exciting System | Brushless Self Exciting | ||||||||
| Bearing | Single Bearing | ||||||||
| Voltage | V | 220/127, 380/220, 440/254, 3300, 6600V | |||||||
| A) CUMMINS | |||||||||
| SET MODEL | DWG800MI | DWG1000MI | DWG1250MI | DWG1500MI | DWG2000MI | ||||
| Stand-by Power | KW | 800/675 | 1000/905 | 1250/1115 | 1500/1400 | 2000/1780 | |||
| KVA | 1000/843 | 1250/1131 | 1562/1393 | 1875/1750 | 2500/2225 | ||||
| Prime Power | KW | 727/614 | 909/823 | 1136/1014 | 1364/1273 | 1818/1618 | |||
| KVA | 909/767 | 1136/1028 | 1420/1267 | 1704/1591 | 2272/2022 | ||||
| Frequency | Hz | 60/50 | |||||||
| RPM | RPM | 1800/1500 | |||||||
| Pole, Phase, Wire | 4 Pole / 3 Phase / 4 Wire | ||||||||
| Insulation Class | H Class | ||||||||
| Power Factor | 0.8 | ||||||||
| Exciting System | Brushless Self Exciting | ||||||||
| Bearing | Single Bearing | ||||||||
| Voltage | V | 220/127, 380/220, 440/254, 3300, 6600V | |||||||
| A) SAMSUNG | |||||||||
| SET MODEL | DWG300V | DWG360V | DWG400V | DWG450V | DWG500V | ||||
| Stand-by Power | KW | 300/288 | 360/330 | 400/362 | 450/411 | 500/447 | |||
| KVA | 375/360 | 450/412 | 500/452 | 562/514 | 625/559 | ||||
| Prime Power | KW | 273/262 | 327/300 | 364/329 | 409/374 | 455/434 | |||
| KVA | 341/327 | 409/375 | 455/411 | 511/467 | 568/542 | ||||
| Frequency | Hz | 60/50 | |||||||
| RPM | RPM | 1800/1500 | |||||||
| Pole, Phase, Wire | 4 Pole / 3 Phase / 4 Wire | ||||||||
| Insulation Class | H Class | ||||||||
| Power Factor | 0.8 | ||||||||
| Exciting System | Brushless Self Exciting | ||||||||
| Bearing | Single Bearing | ||||||||
| Voltage | V | 220/127, 380/220, 440/254, 3300, 6600V | |||||||
Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts.Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts.Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts.Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts.Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts. Korean genset engine parts. doosan genset engine parts.
