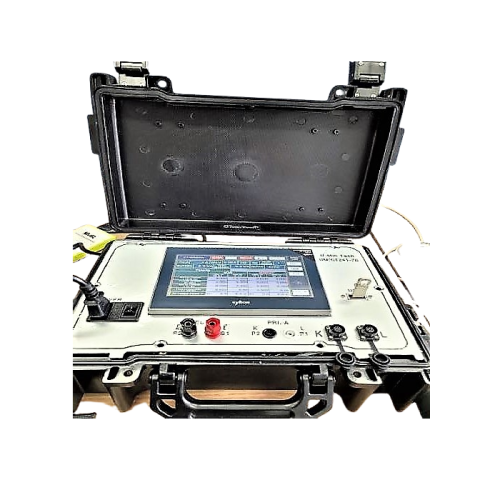

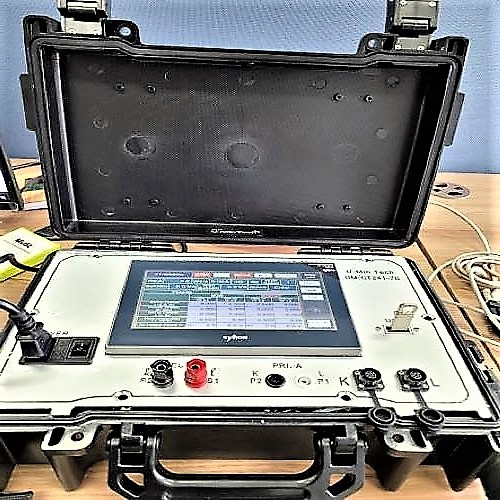

CT Ratio Phase Displacement Error Tester
$5,500.00 EA
MOF, CT Ratio & Phase Displacement Error Tester
- Certification
-
- Award
-
- Shipping
-
- Lead Time30 ~ 60days
- Type of Freight AT,MT
- Modes of Transport DAP,EXW,FCA
- Products Shipped From Busan
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 EA
Detailed Description
CT RATIO & PHASE DISPLACEMENT ERROR TESTER
[ TYPE : UM-CT241-7B ]
1. Voltage input to the secondary side of the current transformer, excitation current and voltage measurement
2. Polarity Test: Determination of Subtractive and Additive Polarity (Test)
3. Measurement of turn ratio and turn ratio error (Turn Ratio Error %: β)
4. Composite error εc calculation
5. Rated current In1.0=100% Rated burden 100% PF0.8 / 25% PF1.0 Calculate ratio error (%), phase angle (min)
6. Test range : PRI. 5A ~ 10000A / SEC. 5A, 1A, / BURDEN 2.5VA ~ 40VA
7. Error: Ratio error (%) ±0.01 ~ 0.25% / Phase angle (min) ± 0.1 ~ 5min
8. USB data memory
