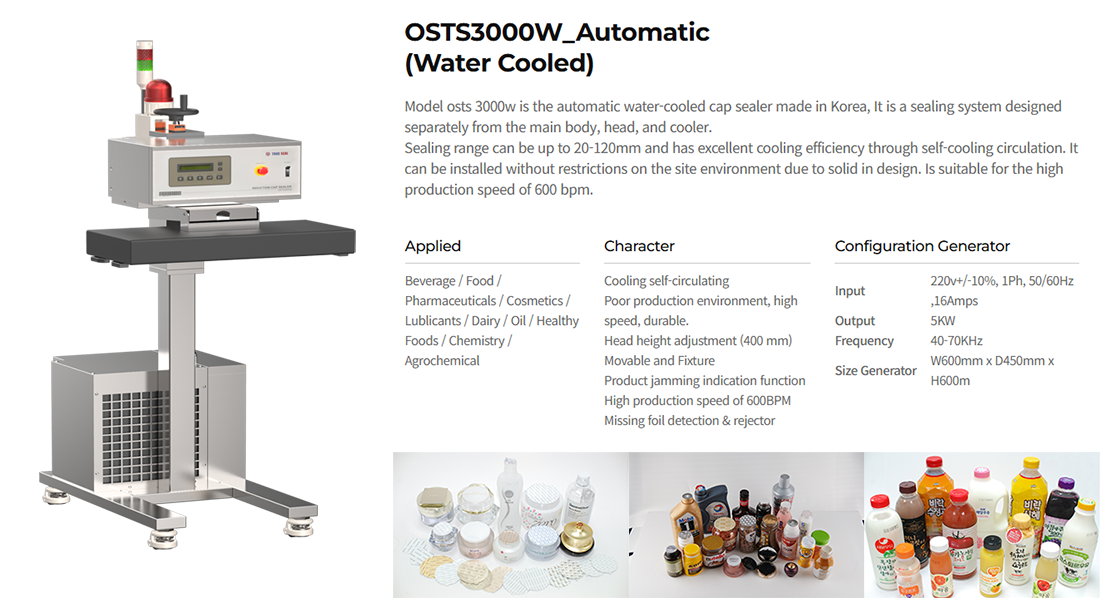

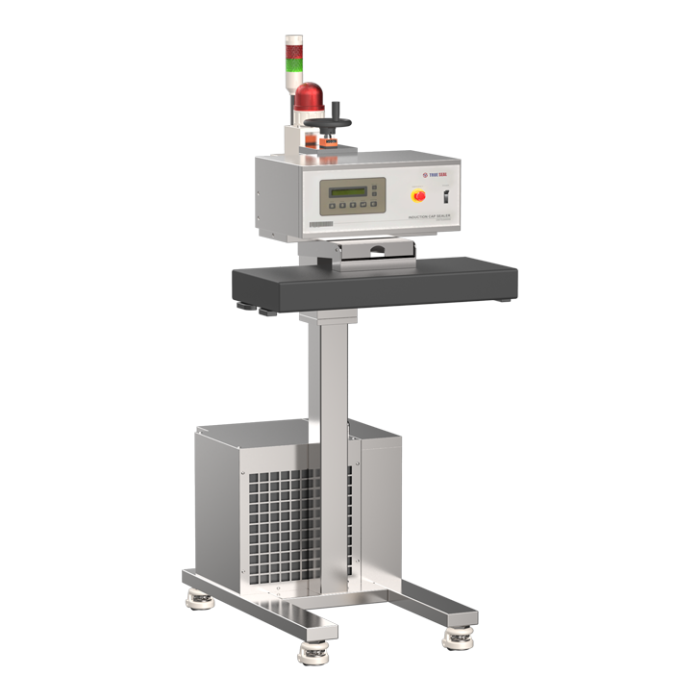

Induction Cap Sealer Model OSTS3000W (Automatic / Water Cooled)

The OSTS 3000W model is an automatic water-cooled induction cap sealer.
The body, head, and cooler are designed as independent, separate structures for easy installation, and it supports a wide sealing range of 20–120 mm.
It has excellent cooling efficiency through its own cooling circulation system, and its sturdy structure allows installation without any restrictions on the work environment.


Features

- Excellent durability structure

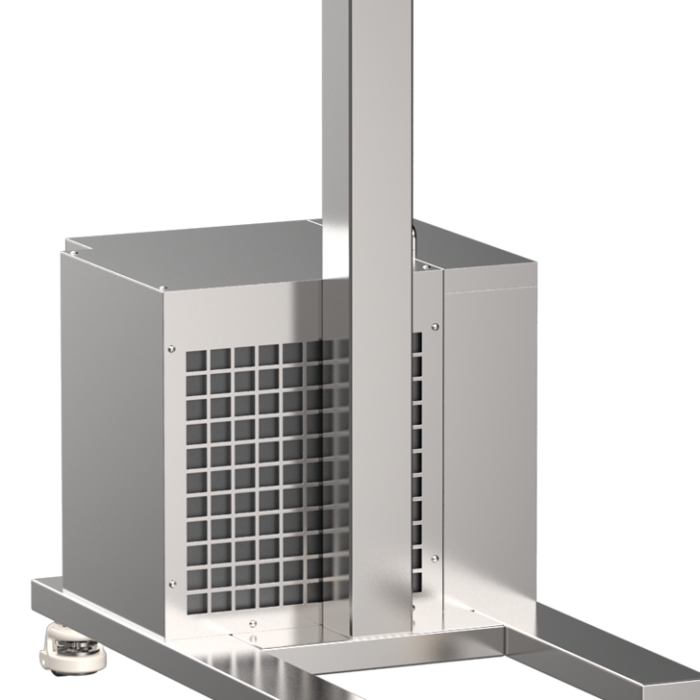

- Self-circulating cooling

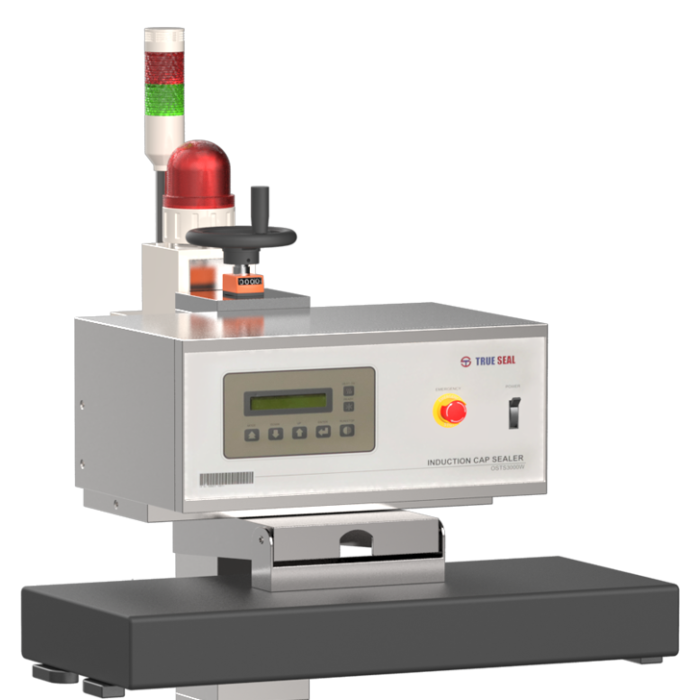

- Head height can be adjusted (up to 400 mm)
- Movable and fixed installation All possible
- Display function when sealing paper is not installed
- Supports high-speed and multi-variety production
- Installation structure without field environment restrictions

Benefits

Up to 200 bpm (bottles per minute)
Maintains stable sealing quality with self-cooling circulation
Excellent versatility to support various container heights and sizes
Stable operation even in harsh working environments
Flexible installation makes line changes and arrangements easy
Minimizes defect rates with automatic detection of missing sealing paper
High productivity optimized for high-speed and multi-variety lines

Specifications

- Output: 220v+/-10%, 1Ph, 50/60Hz, 16Amps
- Input: 5KW
- Frequency: 40-70KHz
- Dimensions: W.490 x D.880 x H.1,700mm
