Driver Status Monitoring(DSM) system with more advanced AI deep learning technology

Image data (driver's heart rate, facial orientation, facial expression, movement, eyelid condition, etc.) are collected to detect and alert careless behavior such as drowsy driving, smartphone use, and beverage consumption to ensure driver safety.

AI deep learning technology is overcoming its limitations.

More advanced driver status (DSM) monitoring system driver status information image data is collected with AI deep learning technology to detect and alert careless behavior to ensure driver safety.

AI deep learning technology enables high recognition rates in various environments

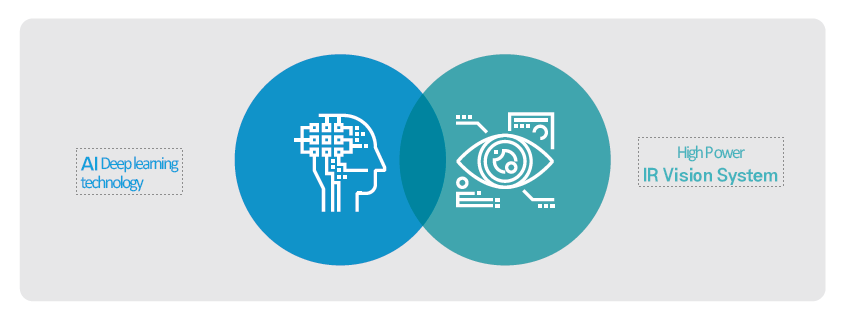

The optimal combination of AI deep learning technology and high-power IR Vision System protects the driver's safety by implementing high recognition rates even in wearing face masks and sunglasses, dark night/tunnel environments, and refractory environments.

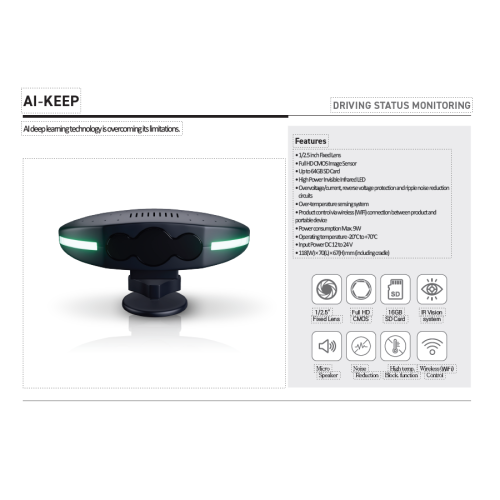

MAIN FEATURES

•     1/2.5 inch Fixed Lens
•     Full HD CMOS Image Sensor
•     Up to 64GB SD Card
•     High Power Invisible Infrared LED
•     Overvoltage/current, reverse voltage protection and ripple noise reduction circuits
•     Over-temperature sensing system
•     Product control via wireless (WiFi) connection between product and portable device
•     Power consumption Max. 9W
•     Operating temperature -20°C to +70°C
•     Input Power DC 12 to 24 V
•     118(W) × 70(L) × 67(H) mm (including cradle)
