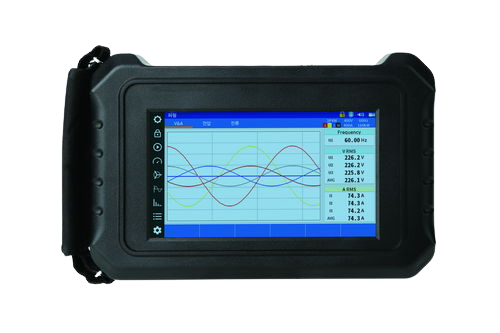

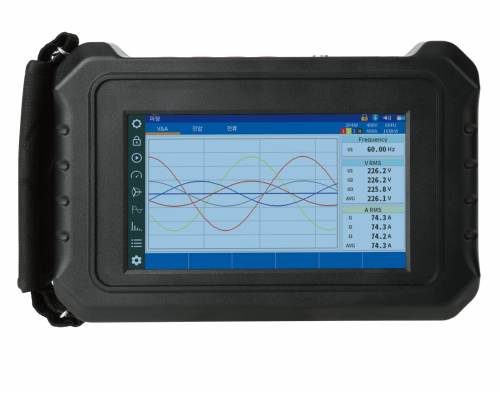

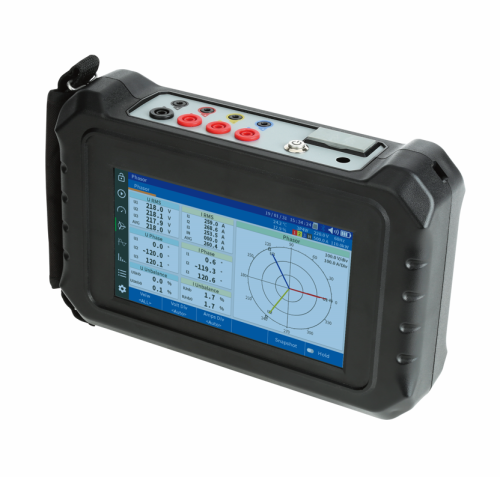

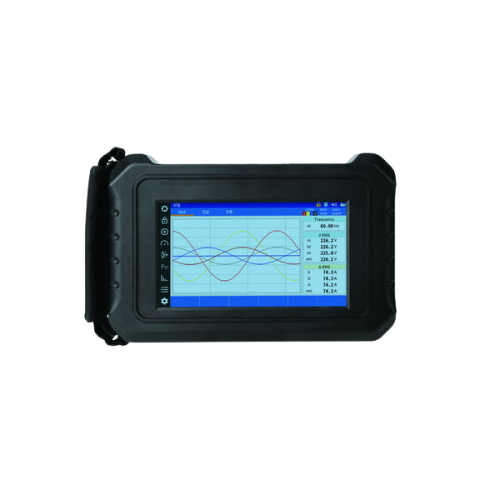

About Power Quality Analyzer TEKON570

The TEKON570 Power Quality Analyzer is a portable device that accurately measures, diagnoses, and analyzes power characteristics and parameters of power distribution and communication-related systems.

By incorporating a 7-inch wide touch screen into its lightweight design, TEKON570 power Quality analyzer maximizes user convenience, allowing the user to perform power quality logging and analysis.

The system allows you in the most effective and easiest manner to perform the measurement, data storage, analysis, and output via the 7“ wide LCD screen.

Functions For Measurement

1. Voltage & Current: TRMS, Peak, Crest Factor (4 channels)

2. Power (active, inactive, apparent)

3. Measurement of imbalance and flicker

4. Measurement of harmonics(up to 50th harmonic), THD measurement

5. Energy (active, inactive, generated, consumed)

6. Capturing and recording power events (shut-down, outage, increase, decrease)

7. Analysis of the quality of power regarding EN 50160

8. Measurement of temperature & humidity in the operating environment

9. Measurement of power factor (cosφ)

Accessories

[Standard]

- Test Lead

- Rogowski Coil (dia. 200mm)

- 12V/2.5A adaptor

- 7.2V/5.2Ah Li-ion battery

- USB cable

- Micro SD card (8GB)

- Portable bag

- PC S/W

- User’s manual

[Optional(Current Clamp)]

- Rogowski Coil(dia. 100mm, 200mm)

- T108(5A), T130(60A), T130BE(60A, ac/dc), T135BE(1000A, ac/dc), T168B(1000A)
