PID
3458893

NXT Rio GS23050CHQ

share

Request For Quotation

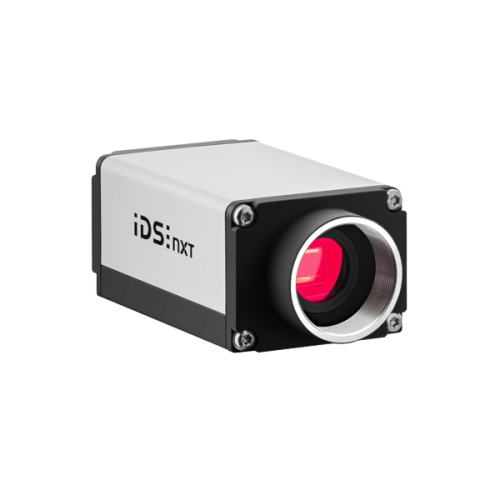

Powerful Embedded Vision Industrial Camera with In-House Developed AI Core
Award
Shipping
  • Lead Time100 ~ 200days
  • Modes of Transport EXW
Payment

140+ Global Payments, trusted and secure payment provided by PayVerse.

Learn More
Quantity
MOQ : 1 Pieces

Detailed Description

With IDS NXT we have created a compact embedded vision platform for industrial applications. By performing image processing tasks directly at the image source, IDS NXT cameras can autonomously generate results independent of a PC to directly trigger subsequent processes - this simplifies and accelerates workflow, ensures a lower network load and reduces energy consumption. With a REST (Representational State Transfer) web service and the OPC UA industrial protocol, they offer standardized, platform-independent interfaces that allow easy networking with other device classes without additional software or gateways. As autonomously operating vision sensors, IDS NXT cameras can therefore be ideally used in IoT (Internet of Things) as well as IIoT (Industrial Internet of Things) to support factory automation.



Name IDS NXT rio GS23050
Camera family IDS NXT rio
Interface Ethernet
Interface-Speed 1.00 Gbps
Sensor type CMOS
Sensor manufacturer Sony
Resolution (h x v) 2448 x 2048
Optical Area 8.446 mm x 7.066 mm
Shutter Global Shutter
Optical class 2/3"
Resolution 5.01 MPix
Pixel size 3.45 µm
IP code IP30
Product Life Cycle Series
