Detailed Description
SUNGIL ENGINEERING
Homepage : sungileng.com/_lang/en
It is a machine that enables branch pipe construction without interruption of the water supply.
"SMT-500" can drill from 350A to 600A. And the power uses an electric motor, and a hydraulic motor.
※ Please refer to the video on how to use it.
※ Please refer to the method of calculating the drilling distance in the catalog.
You must calculate the perforation distance and check whether perforation is possible.
SMT-500 specification
| DRILL 350A, 400A 500A, 600A
| STROKE 870mm
| MACHINE LENGTH 1500mm
|
| MACHINE WEIGHT 235kg
| POWER - Electric motor - Oil hydraulic motor
| DRILL PIPE TYPE- Cast-iron pipe - Steel pipe - PE pipe
|
SMT-500 photo
|

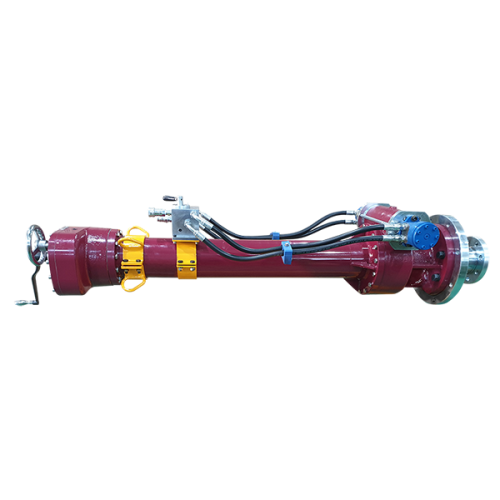

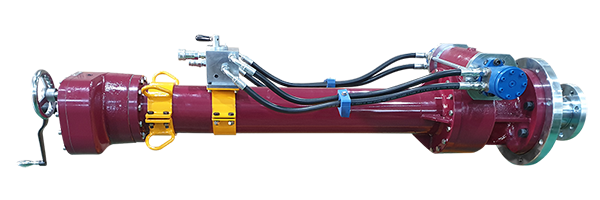

SMT - 500 with Oil hydraulic motor
|
|

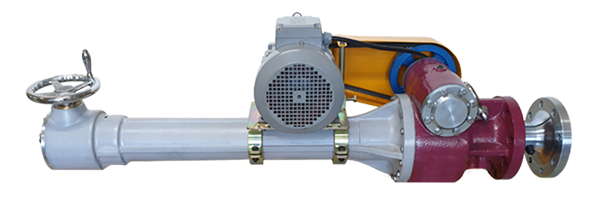

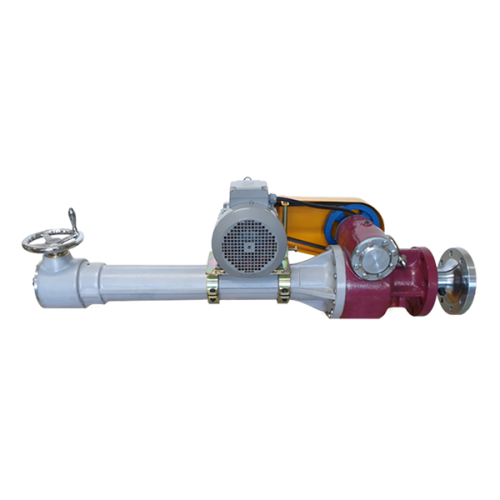

SMT - 500 with Electric motor |
