Detailed Description
SUNGIL ENGINEERING
Homepage : sungileng.com/_lang/en
It is a machine that enables branch pipe construction without interruption of the water supply.
"SMT-300" can drill from 80A to 300A. And the power uses a flexible hose (water pump engine), an electric motor, and a hydraulic motor. (200A~300A perforation is recommended)
※ Please refer to the video on how to use it.
※ Please refer to the method of calculating the drilling distance in the catalog.
You must calculate the perforation distance and check whether perforation is possible.
SMT-300 specification
| DRill 80A, 100A, 150A, 200A 250A, 300A
| STROKE 630mm
| MACHINE LENGTH 980mm
|
| MACHINE WEIGHT 70kg
| POWER - Electric motor - Oil hydraulic motor - Engine water pump
| DRILL PIPE TYPE - Cast-iron pipe - Steel pipe - PE pipe
|
SMT-300 photo
|

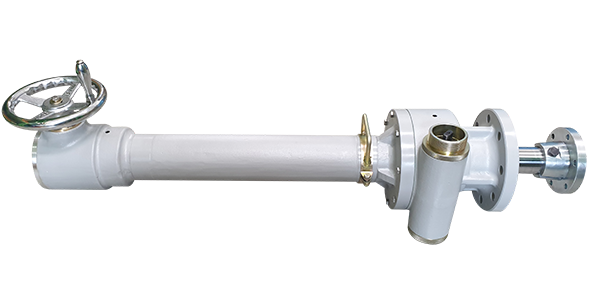

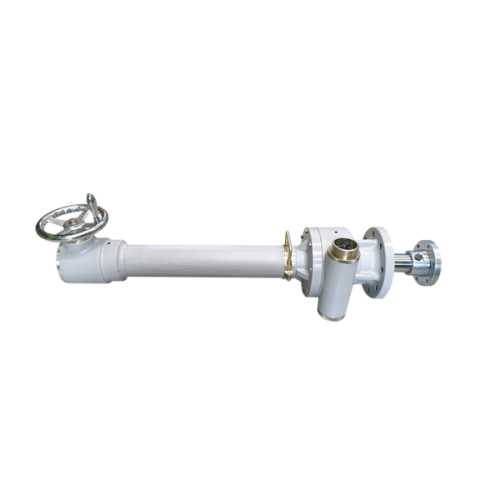

SMT-300 (Body)
|
|

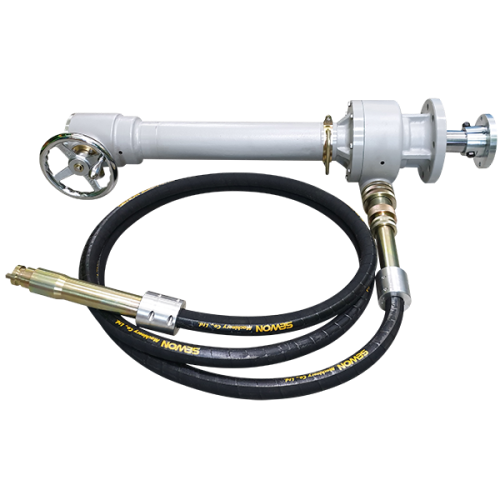

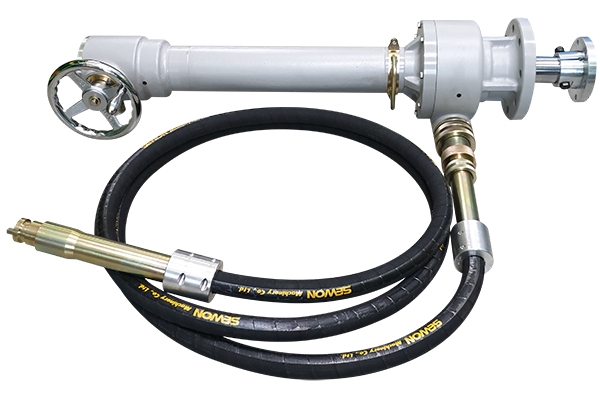

SMT-300 with Flexible hose
|
|

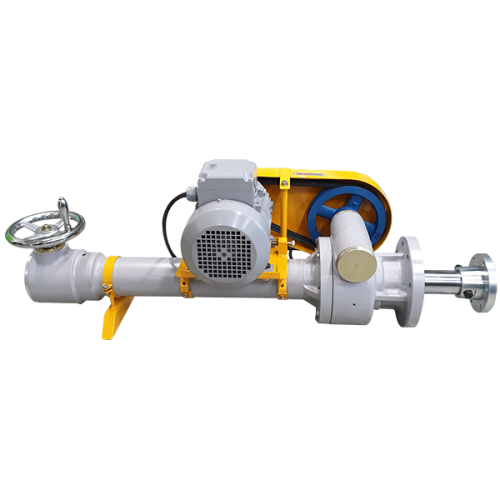

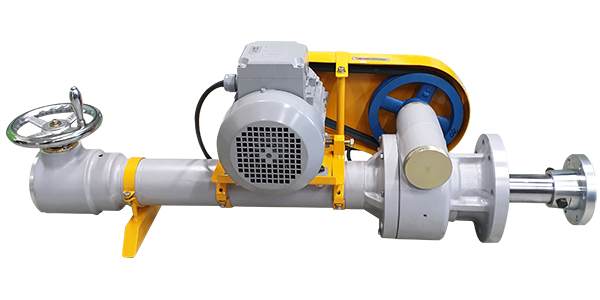

SMT-300 with 3-phase electric motor
|
|

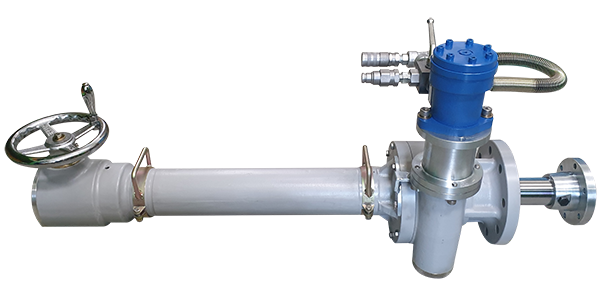

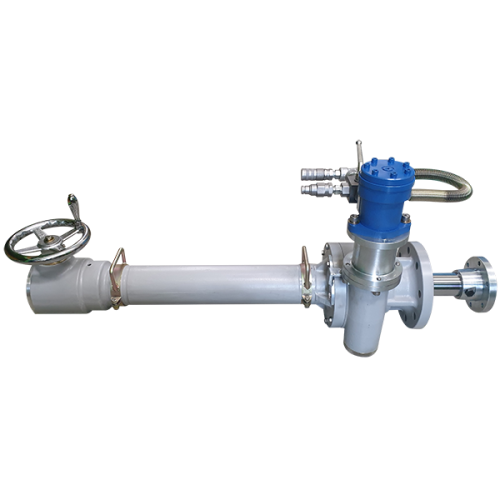

SMT-300 with Oil hydraulic motor
|
|
|
SMT-200 Drill and adapter
|

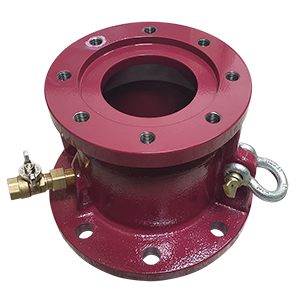

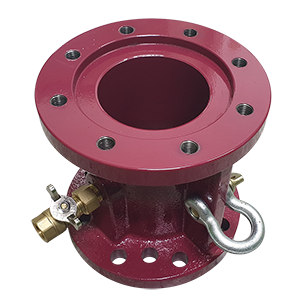

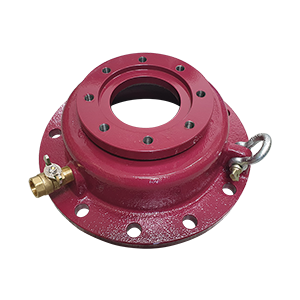

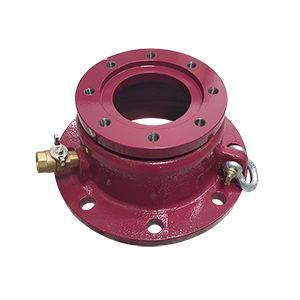

SMT-300 Adapter (80A, 100A)
|
SMT-300 Adapter (150A)
|
SMT-300 Adapter (200A)
|
SMT-300 Adapter (250A)
|
|
SMT-300 Adapter (300A)
|

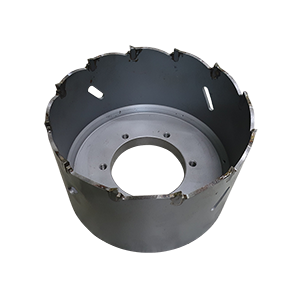

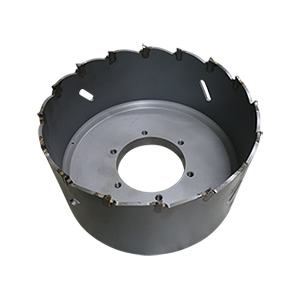

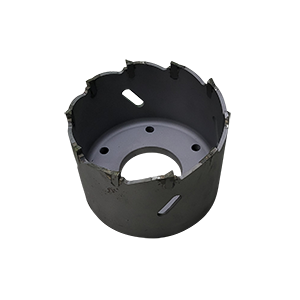

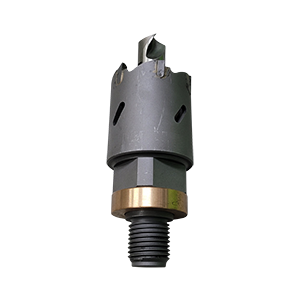

SMT-300 Cemented carbide Hole cutter (80A)
|

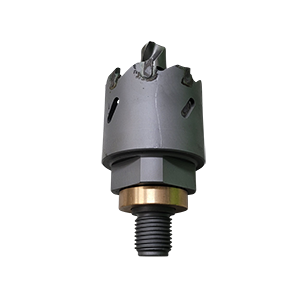

SMT-300 Cemented carbide Hole cutter (100A)
|

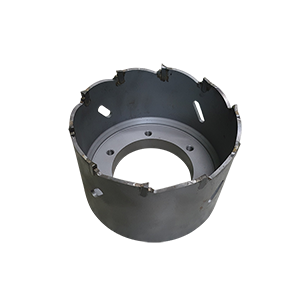

SMT-300 Cemented carbide Hole cutter (150A)
|
|
SMT-300 Cemented carbide Hole cutter (200A)
|
SMT-300 Cemented carbide Hole cutter (250A)
|
SMT-300 Cemented carbide Hole cutter (300A)
|

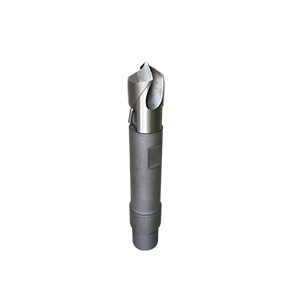

SMT-300 Center drill
|
