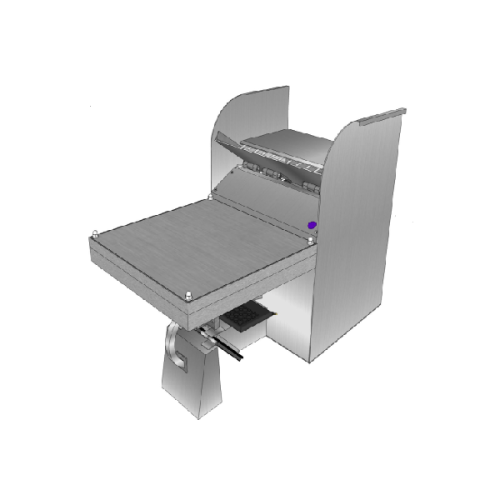

Sewage automatic car home solar system flow control device.

1. Overview.

This system not only allows the opening and closing of the opening and closing plate according to the water pressure and buoyancy of the sewage, but also measures the water quality, water level, and flow rate in the sewer in real time to physically open and close the opening and closing plate.

The opening and closing plates are passively controlled according to the water quality, water level, and flow rate inside the sewage tube to discharge rainwater into rivers or rivers, and sewage and initial rainwater into the superior soil room (fill facilities) in real time.

It is an automatic leak-free flow control device that can select and introduce sewage according to water quality.

It inflates the airbag and closes the floodgate with leverage, blocks rainwater inflow after closure, maximizing the efficiency of the sewage treatment plant, and automatically adjusts the leak-free flow rate.

It's a device.

* Sewage distributor to improve river water quality and reduce sewage treatment costs (automatic flow rate regulator)

* It operates without corrosion by transmitting power to the airbag, and also operates buoyancy, gravity, and flow without power.

* Excellent soil, storage tank, earthenware, non-point pollutant management, etc. can be used in various forms.



2. Characteristics.

Maximize the efficiency of the end-of-life treatment plant due to automatic control of sewage inflow.


(It opens when the sewage is reached, and closes when the set value is reached)


After crushing, water leakage agent (close the buoyancy gate of the connection pipe with an airbag)


It can be used in various forms, such as excellent soil room, storage tank, earthenware, non-point pollution source management, river backflow prevention, etc.


It is possible to manually adjust the inflow amount (interlink the throughput of the end treatment plant, etc.)


The operation method is simple and clear, making it easy to manage.


The airbag is manufactured to have a thickness of 20 mm and used semi-permanently (119 structure airbag adoption)



Integrated operation management is possible.



Adjustable opening time (adjustable opening time by setting the timer time)


Example) When a connection pipe opening command is input, it is opened according to a time setting of a predetermined timer.

(Even if the rain stops, install it in the valley water inflow section for a while)



3. Strengths.


It can be linked with all flow control devices-Modification of existing flow control devices is also possible.

(Installation of the upper flow rate control system, installation of a leak-free sewage flow rate control system under the superior soil chamber)



Since the overflow jaw can be removed, the problem caused by the overflow jaw can be removed (soil deposition)

It is operated powerless by flow rate and buoyancy, and only measured values such as water level and water quality can be transmitted and managed.(Reduced power consumption)



In the event of a power outage or a program error, the upper non-powered hydrological operation, the lower buoyancy hydrological operations.

Reduced sewage sludge and expanded treatment area at the end-of-life treatment plant.



Reduction of maintenance cost of the vehicle collection tube (dredging cost, damage caused by water pressure in case of rain)

First control and second control at the lower part of the superior soil chamber (same level as sewage tube), no malfunction due to blocking of inflow of various foreign substances after closure.

(If you control it only in the manhole connection pipe, it malfunctions due to the inflow of trash)

There's no inflow of rainwater after closing, so the flow rate is definitely adjusted flow rate.

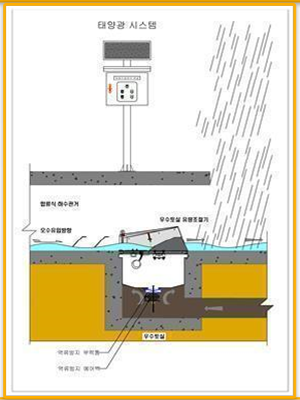

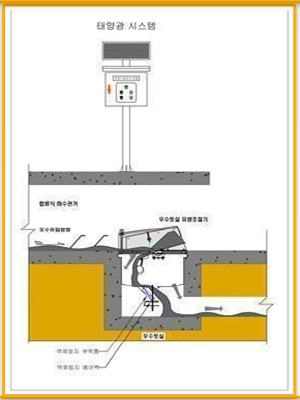

            During normal operation (open)                    During rainfall (closed)
