Large Fine Shredder for Waste Shredding
- Certification
-
- Award
-
- Shipping
-
- Lead Time150 ~ 210days
- Modes of Transport FOB
- Products Shipped From 부산항
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Units
Detailed Description

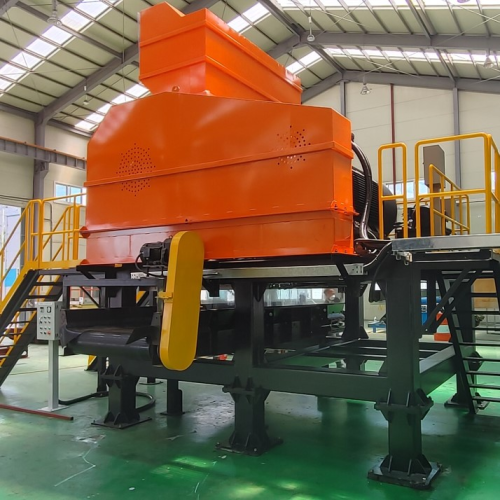

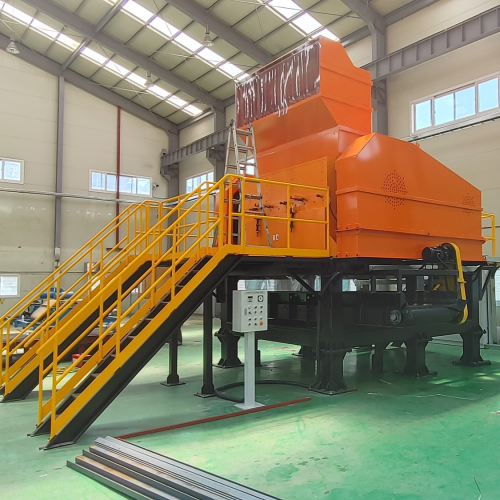

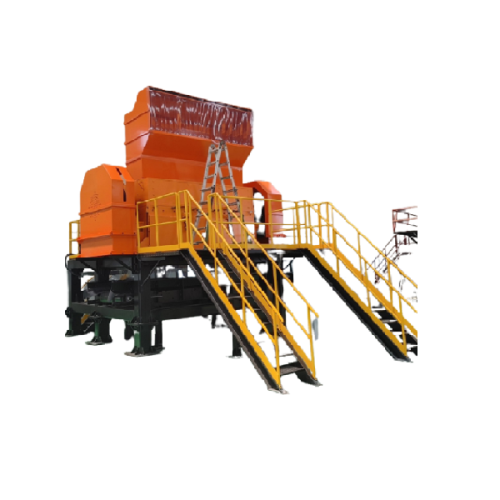

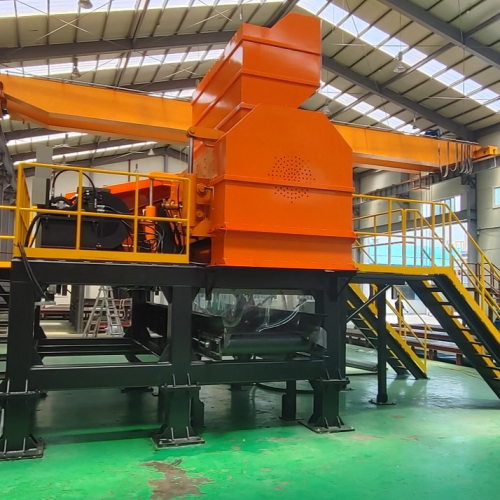

1. Large fine shredder for waste shredding
2. Type: 1-shaft, motor direct connection
3. Shredding shaft power: 375kW
4. Shredding size: Ø30 ~ 100mm
5. Maximum input amount: 15 tons/hour
(when input size is less than Ø60mm)
6. Minimum order : 1 set
7. Warranty period : 14 months from the date of shipment.
8. Detail specification
1) Dimension : L5,300mm x W4,030mm x H3,770mm
2) Driving motor : Electric A/C, 375kW, Soft starter
3) Roller
(1) Dimension : D700mm x L2,500mm
(2) Roller teeth : W74mm x L100mm x 50T, 125
(3) Rotation speed : 300~350 RPM
9. Advantage
1) Use of counter knife twice
2) Motor V-belt drive system ⇨ prevent motor failure due to overload
3) "W shape" rotor 5-row blade arrangement
4) Lower large door mounting ⇨ inspection through large doors that can be easily opened and closed by hand
5) Upper hopper ⇨ Button type opening and closing by hydraulic pressure
