Detailed Description
Characteristics
-LED Motion Status Display Function
-RS-485 Communication Capabilities (Option)
-Mov Fault Alarm Function (Option)
-Surge Counter Function (Option)
Technical Data (KSC IEC 61643-11)

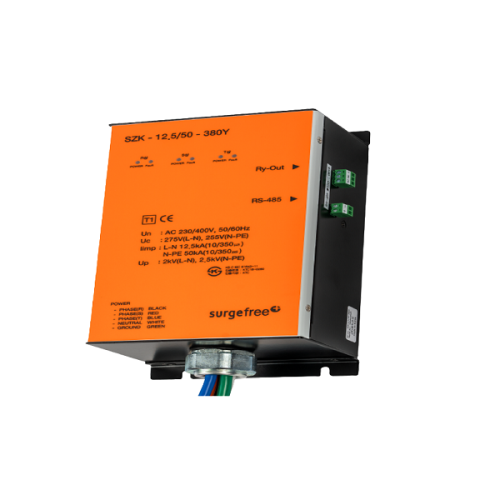

| Model | SZK-12.5/50-2205 | SZK-12.5/50-380Y |
| Electrical Properties | 1P2W | 3P4W |
| Maximum Continuous Usage Voltage Uc | 275V | 275V |
| Impulse discharge current (10/350uss) lymph (L-N/N-PE) | 12.5/50kA | 12.5/50kA |
| Nominal discharge current (8/20uss) In (L-N/N-PE) | 12.5/50kA | 12.5/50kA |
| Voltage Protection Level Up | <2kV | <2kV |
| Up(N-PE) | <2.5kV | <2.5kV |
| Response time tA (L-N/N-PE) | <25ns/100ns | <25ns/100ns |
| Rated Short Circuit Current ISCCR (L-N) | 25kA | 25kA |
| Mechanical Properties | |
| Heat Protection | Yes |
| Temperature range | -40·C~+80·C |
| Installation Method | 4XM4 Bolt |
| Coverage protection rating | IP20 |
| Exterior material | Steel 1.6mm |
| Solid Indication | Red LED (ON) |
| Remote Monitoring Contact | Yes |
| Connection conductor section area | L/N:10mm²,PE:16mm² |
SZK-12.5/50-XXX Installation
1. Preparation for installation
1) Disconnect the power of the breaker before installing the product.
2) Check the systematic voltage at the installation site.
3) Check the installation site system grounding method,and all grounding shall comply with the relevant regulations.
2. Installation method
1) Fix it near the target to protect SPD.
2) Cut the cable of the SPD to an appropriate length and process the terminal.
3) Connect the power terminal of the SPD to the load side of the breaker,and connect the ground terminal to the ground side.
4) After raising the breaker to supply power,check whether the power LED (Green) light is on or not on the fault LED (Red) light is not lit.
An SPD separator shall be installed on the load-side terminal of the three-phase four-wire branch breaker inside the distribution board or on the leaflet of the facility to be protected,and connected as shown in the run-off diagram above.
3. Precautions
1) When measuring voltage resistance and insulation resistance on a track,SPD must be separated from the track.(Performance of voltage resistance,insulation resistance,or other pressure tests with SPD connected causes failure)
2) Repairs or modifications of SPD arbitrarily can cause failure or malfunction.
