Anti UAVs Drone Defense Radar
- Certification
-
- Award
-
- Shipping
-
- Lead Time60 ~ 90days
- Modes of Transport FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Detailed Description

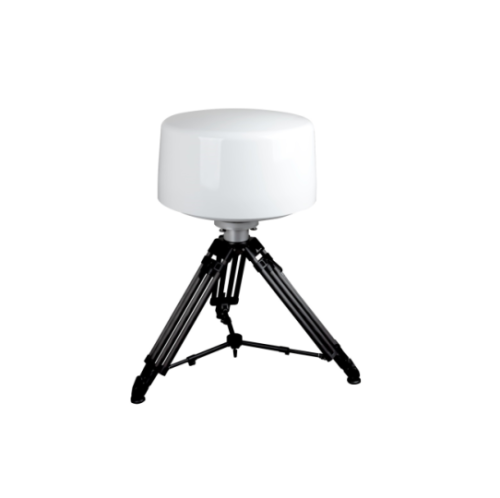

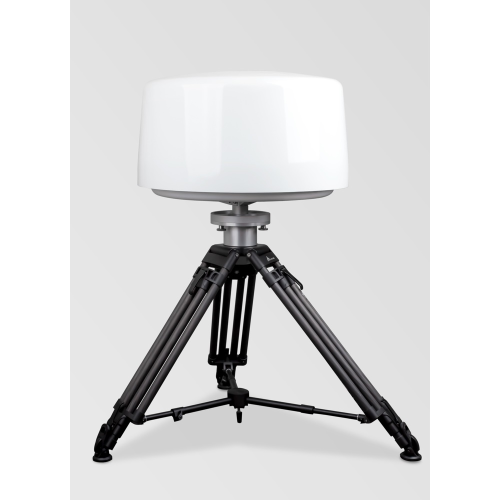

Counter-UAVs/Drone Defense Radar [Model No.: LR500]
LR500 is the key component of the Anti-UAVs (Unmanned Aerial Vehicles) and drone defense system.
Fast detection and early warning of threatening UAVs & drones.
Solution for major threats to national security: airports, gas/oil storage, power plants, military facilities, etc.
- Detection Range: 3km @ RCS: 0.01m2 (i.e. Phantom4 : DJI)
1.9mile @ RCS(Radar Cross-section): 0.107 ft2
- Angular Coverage: 360 deg. (Azimuth), ~55 deg. (Elevation)
- Type: 3D X-Band
- Classification: UAV/Drone, bird, man, ground vehicles, boat/vessel

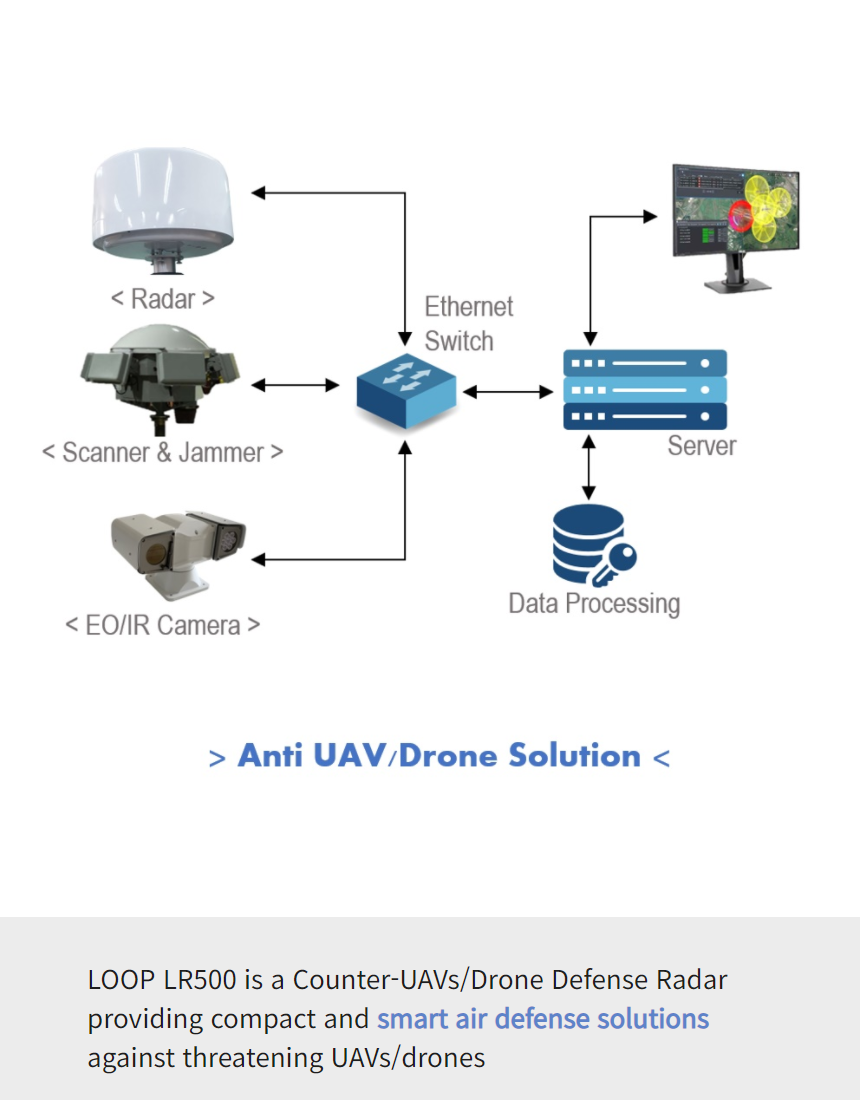

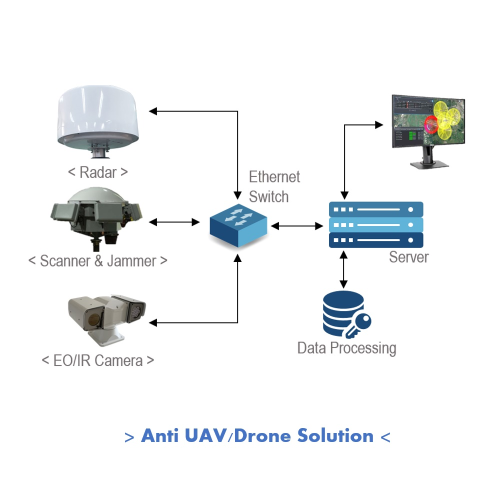

- Extended Interface: EO/IR Camera (ONVIF) + protocol from 3rd parties (RF scanner, jammer... )
