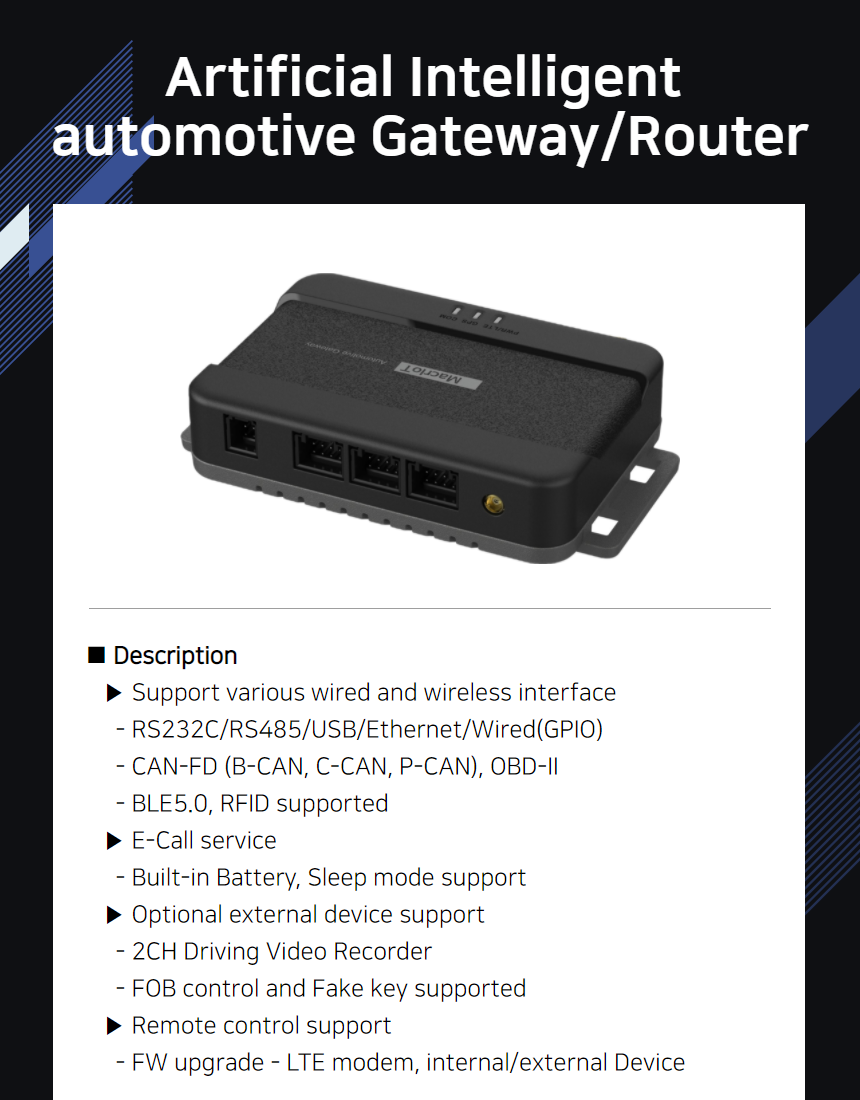

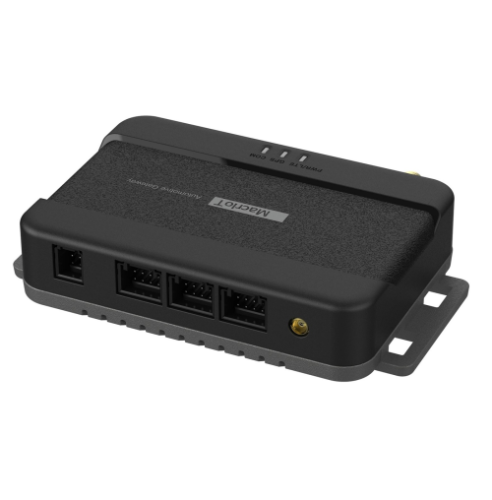

Artificial Intelligent Automotive Gateway

• LTE communication Automotive gateway based on loT

 As AIG-300 is an integrating automotive gateway, it can be used in various

 function devices such as from simple LTE Modem, LTE router to LTE gateway.

 It is loT device which is installed application expandability of loT service and

 it manages and controls various devices in vehicle by integrating connection.

• Multi-port interface

  AIG-300 is applying multi-port interface so that it is easy to connect to various devices in vehicle and also customize each connection device interface. As it is possible to apply various  wireless standards, it can execute LPWA gateway function.

· All-in-one LTE Communication

 As AIG-300 is the Multi-Carrier supported product, it supports Korea and Japanese telecommunication companies communication frequency bandwidth with the integral antenna. Because it is designed to be compatible to Cat.1, Cat.4, Cat.m1 and NB-loT which is LTE communication speed standards and to be  applied ESIM and USIM, it can be used selectively by customer's requirements.

• Compact Design Product

  AIG-300 is easy to install inside and outside of all environment as it is designed as a small size with optimized layout.

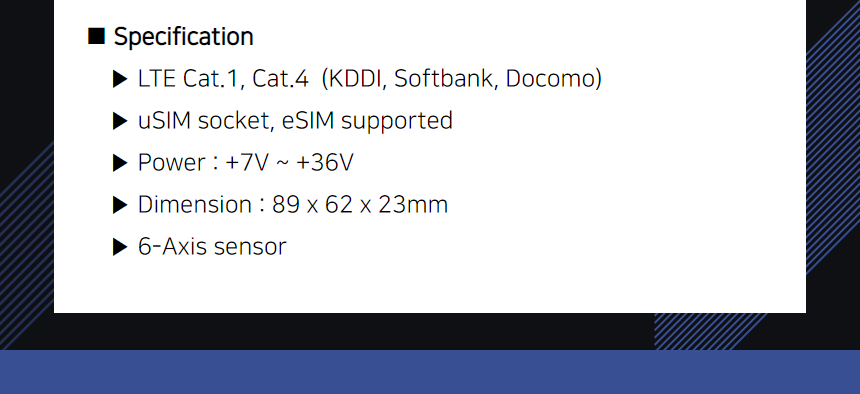

Spec

-SIZE : 89(L) x 59(W) x 21.3(H) mm  (Credit Card size)

-CPU  : Arm 32bit Cortex-A7 CPU , built-in Linux / Qualcomm Chip MDM9207

-LTE  : CAT.1 / CAT.4  / CAT.M1

-Battery :    700mAh (Litum-Ion PACK Battery ( Vr=3.7V, Vm=4.2V) )

-POWER :   +8V  ~ 64V

-GPS       : A-GPS , S-GPS

-6-AXIS

-FD CAN  : 3PORT   / OBD

-RS-232  : 3PORT

-RS-485  : 1PORT

-GPIO    :  1PORT

-USB     :  1PORT

-BLE

----------------------------------------------------------------------------------------------------------------------------------
