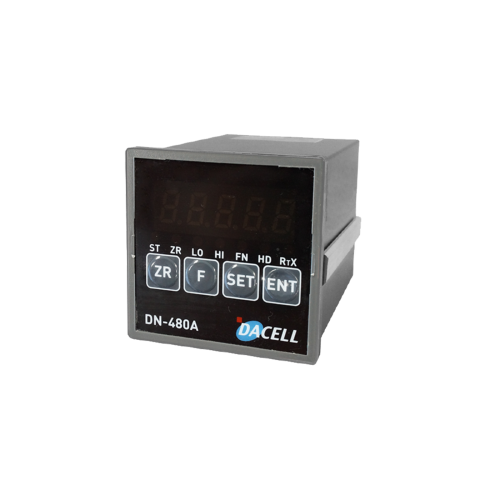

Digital Indicator DN480A
- Certification
-
- Award
-
- Shipping
-
- Lead Time1 ~ 20days
- Modes of Transport CFR,CIF,EXW,FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Pieces
Detailed Description
Isolation from external noise
Watch-dog function
Display resolution, up to 1/20,000
2pcs digital input terminal built in (Zero, Tare/Reset)
DC 24V power supply (without polarity)
Data back-up function
Full-automatic calibration method
Simulating calibration method (without span weight)
Option : Rs-422 / Rs-485 Rs-232 (extra) / 4~20mA or 0~10V output

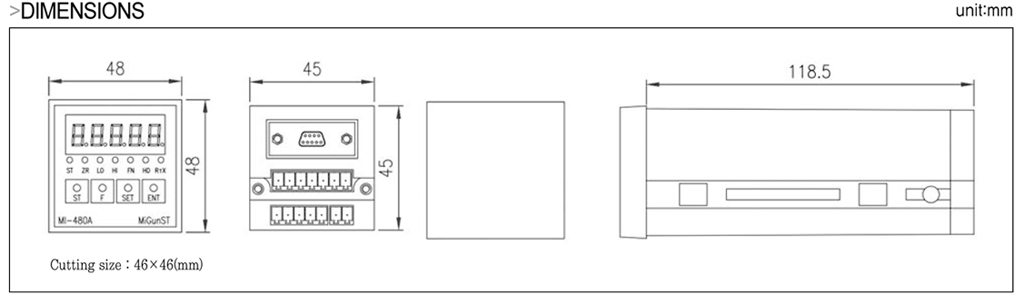

Small size (48*48*118mm)
| General Specification | |
| Input Sensitivity | 0.45㎶ / Digit |
| Load Cell Excitation | DC 5V |
| Max. Signal Input Voltage | Max.32mV |
| Temperature Coefficient | [Zero] ±20PPM/℃ / [Span] ±20PPM/℃ |
| Input Noise | ±0.6㎶ P.P |
| Input Impedance | Over 10㏁ |
| A/D Conversion Method | Sigma-Delta |
| A/D Resolution(Internal) | 260,000 Count(18bit) |
| A/D Sampling Rate | Max. 80times / Sec |
| Non-Linearity | 0.01% FS |
| Display Resolution(External) | 1/30,000 |
| Display Part | ||
| Display | Parts | Specification |
| Display | Main Display | 7Segments, 5 Digit RED LED Display |
| Size :12.7mm(H)×7.3mm(W) | ||
| Min. Division | ×1, ×2, ×5, ×10, ×20, ×50 | |
| Max. display value | +99,950 | |
| Under Zero value | "-" (Minus display) | |
| Status lamp | Zero, Stable, Low, High, OK, Hold, Comm. | RED LED Display(3Ø) |
| K e y | Function keys | Zero / F / Set / Enter |
| - Option | |
| Option No.1 | RS-422,RS485 |
| Option No.2 | 4~20mA (Analogue Output |
| Option No.3 | 0~10V (Analogue Output) |
|
|
|
