Video Input 32 IP
 Input Resolution 32ch Max 4MP
  (24ch 5MP,16ch 4K)
 Output 1 HDMI, 1 VGA, 2 BNC (1 HD, 1 SD)
 Output Resolution 4K, FHD, SXGA, XGA
Recording Speed 7.5fps/ch (4MP) /
  15fps (2MP)
 Resolution 32ch Max 4MP
  (24ch 5MP,16ch 4K)
Audio Input Depends on IP, 1 RCA
 Output 1 HD-MI, 1 RCA
Interface Senser In / Out 4 /1 - NC / NO
 USB 2 x USB 2.0
 PTZ / Keyboard 2 x RS485 - Terminal Block
 ATM /POS Ethernet POS
Network Interface 2 x Ethernet 10/100/1G
 Compression H.265, JPEG
 Speed 10fps (4MP), 20fps (2MP)
 Resolution Max. 4MP
System OS Embedded Linux (Built-in Flash Memory)
 Pre / Post-Alarm 5sec / 5sec~5min
 Recording Mode Continuous, Event, Schedule
 Data Search Smart, Panorama, Calendar, Multi Day / Time, Event, Go to Time
 Backup Interface USB, Network
 Backup Type Video (RMS, AVI), Capture (JPEG), Log List, Setup Data
 Alarm Action Buzzer, PTZ Preset, E-mail, Relay, Spot, Event Popup, Callback, FTP, Push
 User 15 Users (Admin, User1 ~ User14)
 Network Viewer Netus, VMS, Web Viewer, Mac Viewer, SmartEyes_Pro(iOS, Androld)
 ONVIF ONVIF Profile S
Storage Primary / Enternal 6 HDD, 4 eSATA

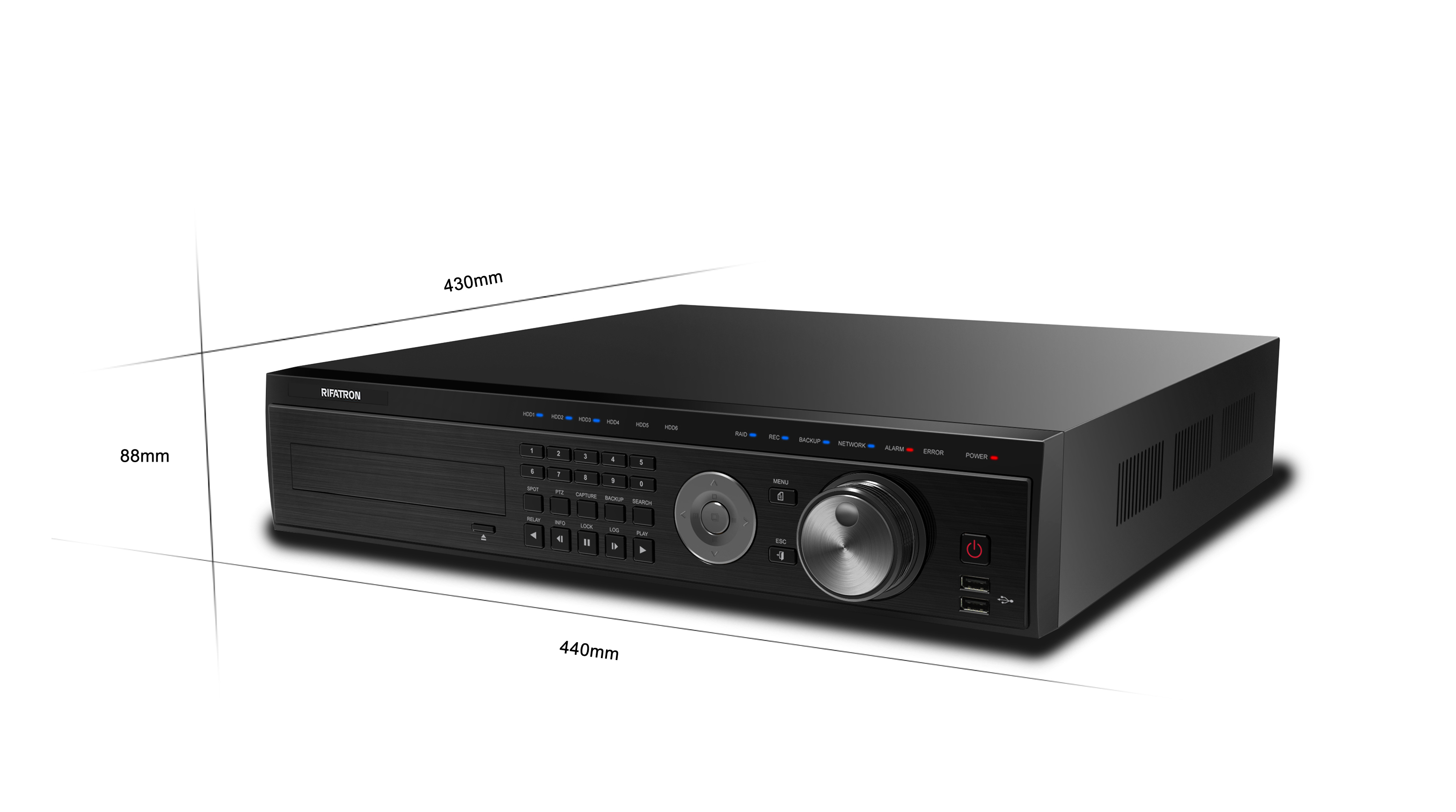

General Size 440 x 88 x 430 mm
 Weight(w/o HDD) 8kg
 Temp / Humidity 5 ~ 40 ℃ / 10% ~ 80%
 PoE 16 PoE
  IEEE 802.3at, Max. 150W
 Power Supply AC 100 ~ 250V, 50/60 Hz

 Power 230 Watts
 Consumption
