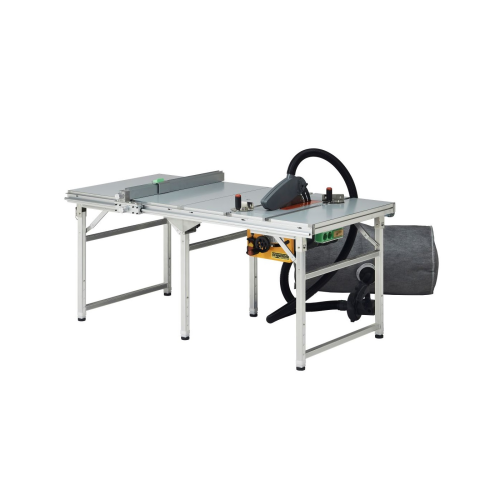

SCHNEIDER is the leading company in the supply of multipurpose and portable folding aluminum worktable saws. JUN ENGINEERING is a company that delivers with utmost commitment.

JUN ENGINEERING has launched the SCHNEIDER Table Saw,

which is German for a tailor or for someone who cuts things.

- Invented the world’s first safety push stick for fence guides; essential when cutting thin pieces.

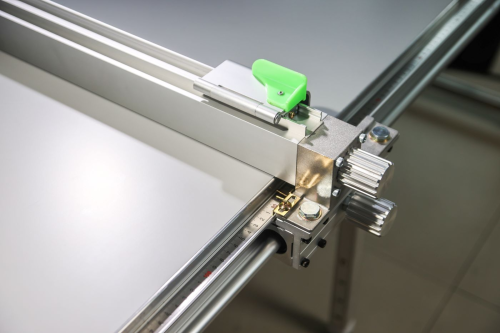

- Smooth fence guide movement by installing the unit bearing.

- Adjust height of work table to the desired level.

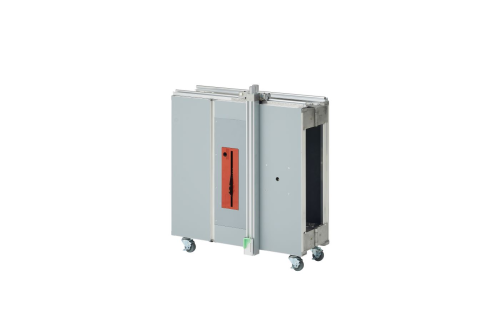

- The unit can be folded without disassembly, and includes wheels for easy transport.


Specifications

• SCHNEIDER Work Table

Material: Aluminum
Worktable: 1700mm x 800mm x 750~900mm
Fence Guide: 1300~1900mm
Cutting Length: 1230mm (*When using an extension table: 1,810mm)
Weight: 31.8kg

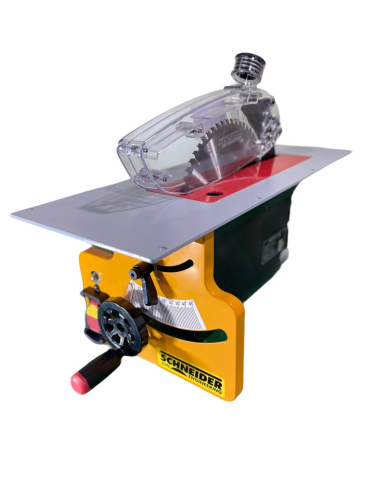

• SCHNEIDER Saw Blade Machine

Rated Voltage: 200~240v / 50~60Hz
Power Supply: S1 1800w / S6 25% 2000w
RPM: 4200 min
Machine Bench Size: 223 x 600mm
Blade: Ø254 x Ø25.4 x 2.2mm
Max depth of cut 90°: 82mm
Max depth of cut 45°: 62mm
Noise emission: LPA: dB(A) / LwA: dB(A) / K=3: dB(A)
Dust outlet: Saw Machine Hose Ø45mm / Safety Guard Hose Ø36mm
Weight: 11.5kg

• SCHNEIDER Dust Collector/Blower

Rated Voltage: 200~240v / 50~60Hz
Rated Power: 500w
Idling Speed: 14,000 rpm
Wind Pressure: 8,000 Pa
Vibration: 2.8m/s2
Insulation Rate: Class 2 (IEC)
Air Volume: 0~2.8 m3/min
Noise Emission: 89 dBA
Weight: 3.5kg
