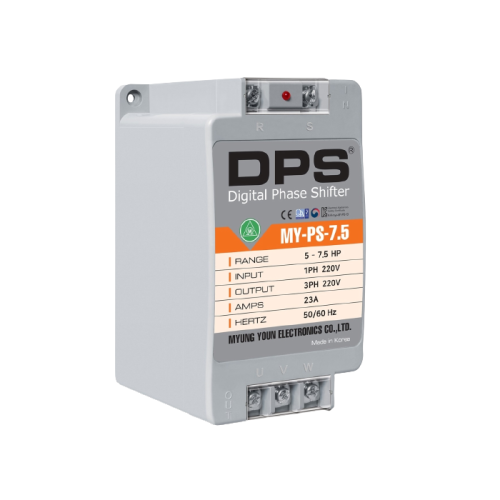

A. Detail information

1. Capacity : Suitable for 5HP motor(3.7KW, 15 amps)

2. Frequency : 50/60 Hz

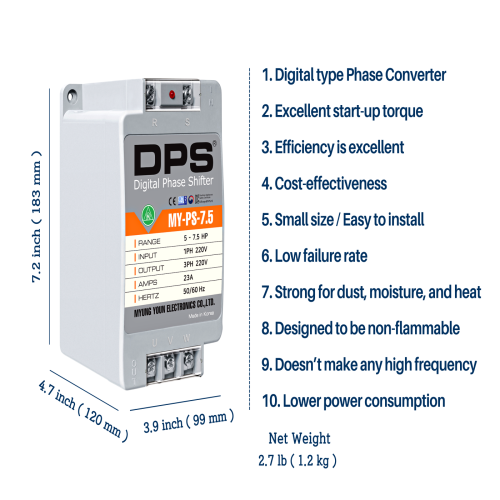

3. Dimension(mm) : 182x98x125(WxLxH)

4. Mounting holes : 5Ø

5. Net Weight : 1.1kg

6. Voltage of input and output : 200V - 240V

B. Features

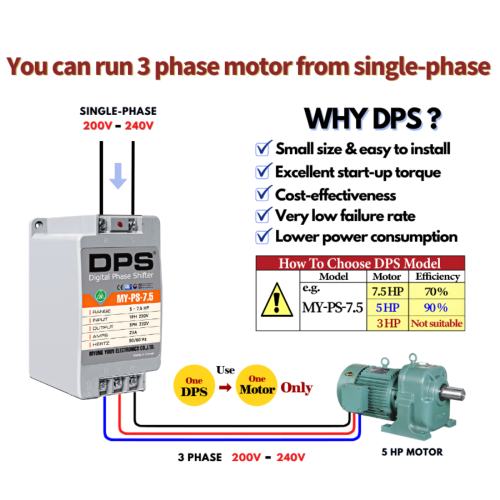

1. Drive 3 phase motor with 1 phase

2. The failure rate was even lower frequency operation

3. Excellent start-up torque

4. The size is small & easy to install

5. Semi-permanent lifetime

6. Energy saving effect

7. Stable in humid, dust, vibration and impact

8. 3 phase motors can be used at your home

* Features of 3 phase motor

 Compared with 1 Phase Motor

 => Low failure rate, Small size, High efficiency, Affordable price

C. Notices

1. The product uses only a 3 phase 220v motor.

2. Use only a motor which suits the capacity range of this product. (1:1)

3. If the motor overheats, check whether the current is correct as shown on the motor nameplate. (Within 85% of rated)

4. When checking the D.P.S. voltage only, two-phase voltage is output, and three-phase voltage are output when the motor is running.

5. If you use a motor for a large load condition, use the D.P.S product with one rating higher. Do not use it with a higher than one rating. (This may cause motor failure)

6. Motor brake must be of single phase only.(A brake for 3 phase does not work)

7. For control cables, use U.W cable only.(Electromagnetic switches, brake, magnet, etc.)

D. Specifications

1. Application range : 3 phase 220v motor type

2. Rated voltage : 3 phase 220v ±  10%

3. How to convert : Relay control circuit for three-phase driving

4. Ambient temperature : -10 ~ 50°C

5. Enclosure : Open type(IP54)

6. Insulation resistance : 100MΩ or higher based on 500VDC MEGA

7. Withstanding voltage : Within 85% of motor rated current

E. Application

- All products driven by 3 phase motors

- All motors for industrial and domestic purpose

- High pressure washer

- Hoists

- Compressors

- Conveyor motors

- Agitators

- Food processing machines

- Hydraulic motors

- Document cutter

- Meat slicers

- Agricultural machines

- Woodworking machines

- Portable air conditioners

- Machines for pumping

- Blowers

- Ceramics machines

- Fan motors

- Portable packaging machines

- Cutters, etc.

 * These products can be connected for use quickly and easily everywhere.

F. Instances of D.P.S.

- Conventional 1 phase motors which have been used at home and abroad have problems that centrifugal force switch contacts wear at start-up, fires occur due to sparks, and production cost increases compared to 3 phase motors.

Digital phase converter is a device to supplement such problems in a perfect way, and had a compact size for easy installation, and a wide application in the machines requiring strong start-up torque. In addition, 3 phase motors can be driven at home.
