High Pressure Multi-Turbine Pump
Request For Quotation

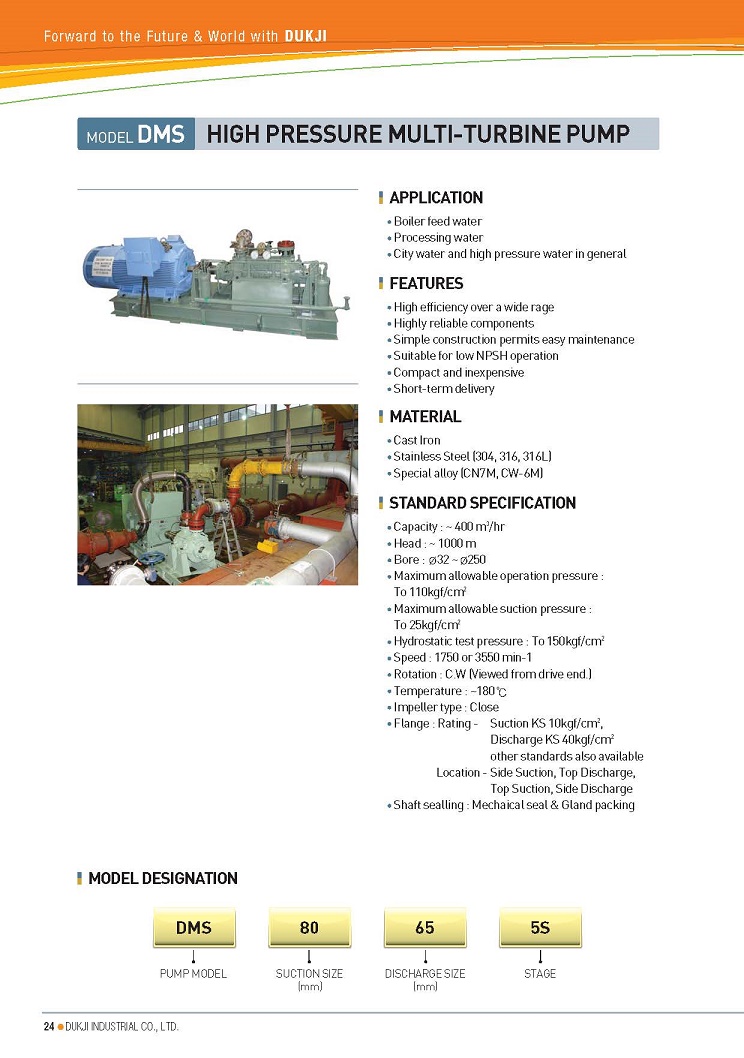

High Pressure Multi-Turbine Pump / Multi Stage Pump / Boiler Pump
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
Detailed Description
Model Name: DMS
Impeller Type: Close
Shaft Sealing: Mechanical Seal & Gland Packing
Features
- High efficiency over a wide range
- Highly reliable components
- Simple construction permits easy maintenance
- Suitable for low NPSH operation
- Compact and inexpensive
Material
- Cast Iron
- Stainless Steel (304, 316, 316L)
- Special Alloy (CN7M, CW-6M)

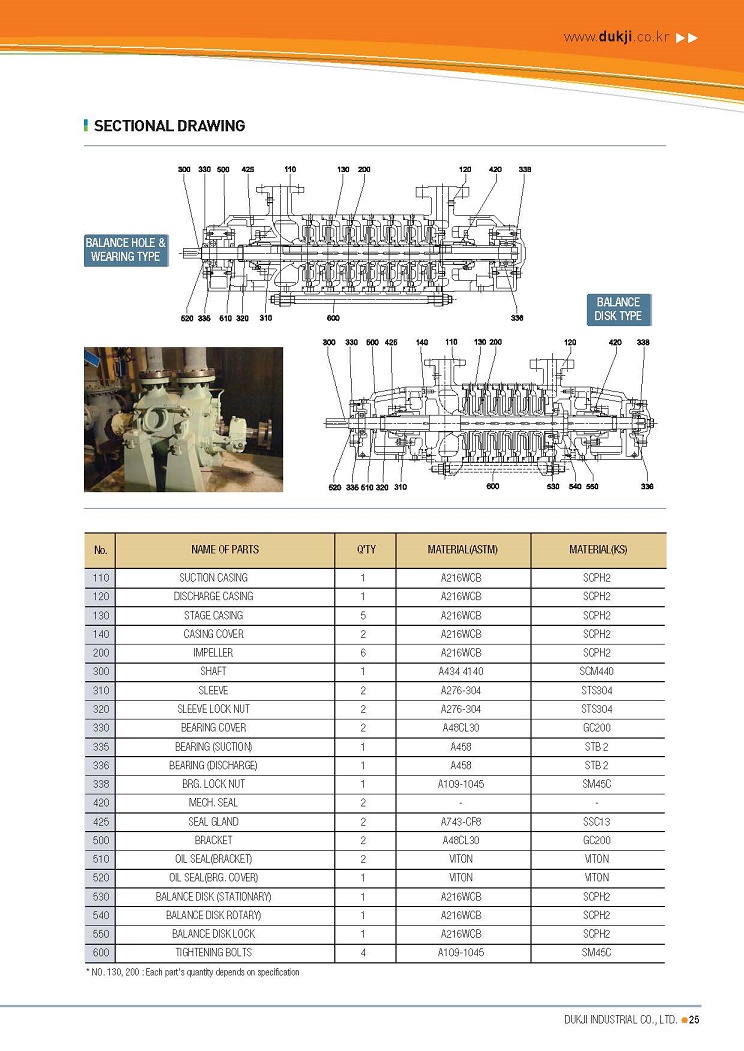

Sectional Drawing
