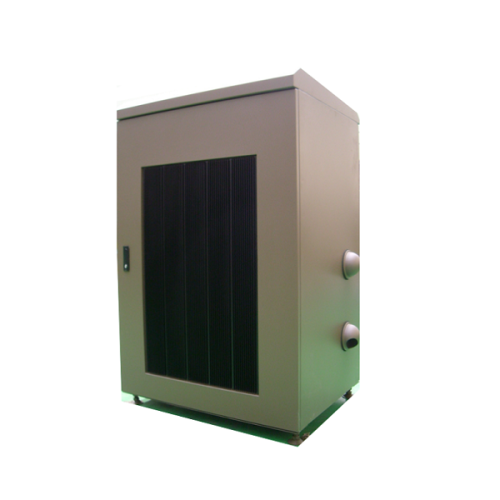

An energy-saving and intelligent eco-friendly dehumidification system is a dry dehumidification unit made of an enclosed outdoor enclosure.

It has excellent dehumidification and fundamentally blocks the condensation of stored objects.

With the natural cooling system technology (Passive Cooling System), it is possible to maintain the proper temperature (20 ~ 40 ℃)

by exchanging internal heat with external air. As a result, the dehumidification and control system can be prevented from malfunctioning,

and can be operated stably and efficiently. Also, a remote monitoring system (RMS) is installed to enable wireless remote security monitoring

and control. In addition, there is no risk of water leakage and freezing due to the absence of water pipes for water circulation,

without using refrigerants, which are environmentally harmful substances, for cooling inside the enclosure.

Anti-static, flame-retardant, over-heating prevention, automatic return function in case of power failure and electricity,

thermostat temperature relay is installed, forcibly shuts off the heater by attaching a thermostat relay, and a spark killer automatically

stops operation when an overload is detected inside the dehumidifier. Functionality, etc. This product is safe.

Certificate of conformity (EMC) for broadcasting and communication equipment. And so on.

A passive cooling system is a medium to transfer heat organically by using the difference of gravity

and density of natural energy (cold and warm heat), and it is the technology to embody no-power

or low-power air-conditioning system by using phase change material. This technology not only saves the cost of air-conditioning

by reducing the amount of used energy significantly but also protects the environment.

The passive cooling system is expanding from living goods to communication, power-plant, military, and so forth,

and it is used more broadly in the advanced countries such as Italy, Germany, United States, and so forth

where environmental protection and energy-saving are a part of living. Ultra power-saving

the passive cooling system is designed to suck in the cool and humid air inside the magazine through the dew condensation prevention system

(dry dehumidification system) installed outside the magazine and make it into dry air before re-supplying it into the magazine

so that the moisture in the air is reduced and proper humidity is maintained. On the other hand,

through sealed outdoor rack is hot because of the heat generation of the dry dehumidification unit itself and the solar radiation,

it has the function of a passive cooling system to maintain a proper temperature (20 - 35 ℃) to prevent system malfunction

through heat exchange with outside air so that dehumidifier and the controlling system can operate stably and effectively

along with remote surveillance controlling function. For the rack, IP54 (water-proof, moisture-proof) standard is applied.

It is the international standard protection grade satisfying IEC (International Electro-technical Commission) 's EN60529 / IEC 529,

which is the same as the standard of NEMA (National Electrical Manufacturers Association). For the internal equipment,

machinery management regulation 98/37 / EEC appropriate for Europe CE approval, low voltage management regulation 73/23 /

EEC (fixed version of 93/68 / EEC), EMC management regulation 89/336 / EEC (fixed version) of 92/31 / EEC and 93/68 / EEC) are applied.

An energy-saving and intelligent eco-friendly dehumidification system is a dry dehumidification unit made of an enclosed outdoor enclosure.

It has excellent dehumidification and fundamentally blocks the condensation of stored objects.

With the natural cooling system technology (Passive Cooling System), it is possible to maintain the proper temperature (20 ~ 40 ℃)

by exchanging internal heat with external air. As a result, the dehumidification and control system can be prevented from malfunctioning,

and can be operated stably and efficiently. Also, a remote monitoring system (RMS) is installed to enable wireless remote security monitoring

and control. In addition, there is no risk of water leakage and freezing due to the absence of water pipes for water circulation,

without using refrigerants, which are environmentally harmful substances, for cooling inside the enclosure.

Anti-static, flame-retardant, over-heating prevention, automatic return function in case of power failure and electricity,

thermostat temperature relay is installed, forcibly shuts off the heater by attaching a thermostat relay, and a spark killer automatically

stops operation when an overload is detected inside the dehumidifier. Functionality, etc. This product is safe.

Certificate of conformity (EMC) for broadcasting and communication equipment. And so on.

A passive cooling system is a medium to transfer heat organically by using the difference of gravity

and density of natural energy (cold and warm heat), and it is the technology to embody no-power

or low-power air-conditioning system by using phase change material. This technology not only saves the cost of air-conditioning

by reducing the amount of used energy significantly but also protects the environment.

The passive cooling system is expanding from living goods to communication, power-plant, military, and so forth,

and it is used more broadly in the advanced countries such as Italy, Germany, United States, and so forth

where environmental protection and energy-saving are a part of living. Ultra power-saving

the passive cooling system is designed to suck in the cool and humid air inside the magazine through the dew condensation prevention system

(dry dehumidification system) installed outside the magazine and make it into dry air before re-supplying it into the magazine

so that the moisture in the air is reduced and proper humidity is maintained. On the other hand,

through sealed outdoor rack is hot because of the heat generation of the dry dehumidification unit itself and the solar radiation,

it has the function of a passive cooling system to maintain a proper temperature (20 - 35 ℃) to prevent system malfunction

through heat exchange with outside air so that dehumidifier and the controlling system can operate stably and effectively

along with remote surveillance controlling function. For the rack, IP54 (water-proof, moisture-proof) standard is applied.

It is the international standard protection grade satisfying IEC (International Electro-technical Commission) 's EN60529 / IEC 529,

which is the same as the standard of NEMA (National Electrical Manufacturers Association). For the internal equipment,

machinery management regulation 98/37 / EEC appropriate for Europe CE approval, low voltage management regulation 73/23 /

EEC (fixed version of 93/68 / EEC), EMC management regulation 89/336 / EEC (fixed version) of 92/31 / EEC and 93/68 / EEC) are applied.

PCM Desiccant Dehumidifier Specification











    Item Classification Unit EM270ST EMT800ST EMT1400ST EM1350ST
    Process Air
    (처리측 공기) Air Flow m3/h 270 800 1400 1350
    Motor Power kW 0.36 0.55 1.1 1.1
    Available Static Pressure Pa 200 300 300 300
    Reactivation Air
    (재생측 공기) Air Flow m3/h 99 155 254 490
    Motor Power kW 0 0.37 0.37 0.75
    Available Static Pressure Pa 200 300 300 300
    RMS Function
     Control & Monitoring
    Communication Port
     Ethernet 4 port, RS-485 for sensor, RS-232 1Port for console
    Components
     LCD Display, Edit button, LED lamp
    Reactivation Heater Type
     Electric Electric Electric Electric
    Heater Power kW 2.7 4.2 6.9 13.5
    Temp increase across Heater ℃ 95 95 95 95
    General Dimension LxWxH 900 x 600 x 1200 1000 x 800 x 1500 1000 x 800 x 1600 1100 x 800 x 1700
    Total Power kW 3.06 5.12 8.37 15.35
    Weight kg Approx 200 Approx 380 Approx 400 Approx 450
    Power Source
     380V / 60hz / 3ph 380V / 60hz / 3ph 380V / 60hz / 3ph 380V / 60hz / 3ph
    PCM W 175J /1g 175J /1g 175J /1g 175J /1g
    Painting
     P-BR0591-S0, DM US military color, PT2014S 70㎛
Casing Materail
     SUS304 1.6t
    Control Panel
     Horizontal sliding
    Temp& Humidity sensor Temp.  -40~+100℃
    Humidity RH0~100%
    Comm. RS-485 (2W)
    Temp. Range ℃ -20 ~ +40 -20 ~ +40 -20 ~ +40 -20 ~ +40
    Drive Motor Power W 10 10 10 10
    Noise Level unducted dBA 79 79 80 83
    Rotor size
     Φ240 x 300t Φ454 x 200t Φ454 x 300t Φ454 x 400t
