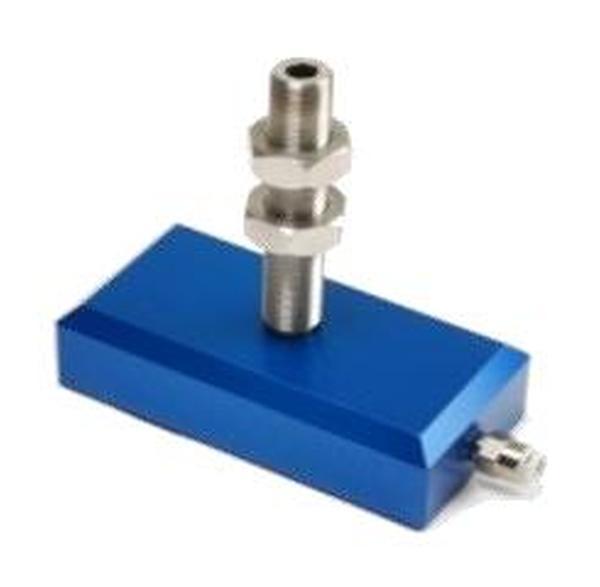

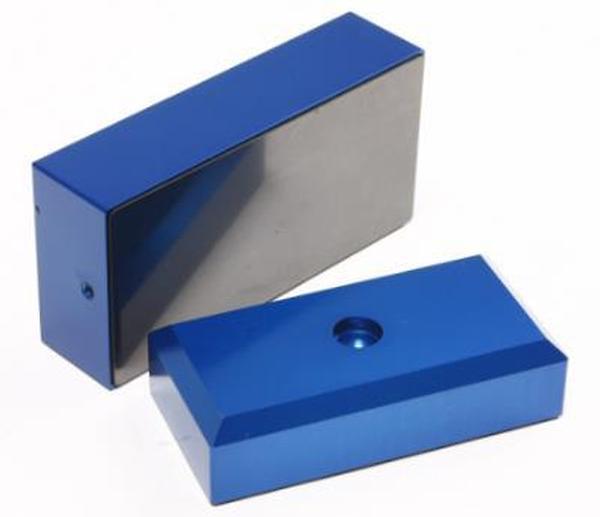

Rectangular Flat Air Bearing

It is of utmost importance to avoid misalignment of bearings when mounting bearings,

and make sure that the mounting load is not applied through the side plate of the bearing.

The force must be applied to the surface of the bearing itself.

Rectangular air bearings maintain high speed and acceleration with stable flight height accuracy, providing nano-level precision.

In the event of a loss of air supply, the air is slowly diffused by the porous medium, minimizing the possibility of surface damage,

making it inherently impact resistant.

Rectangular air bearings are designed to deliver high loads while maximizing the bearing surface area of the guide.

For some linear motion applications, rectangular air bearings provide a more efficient bearing surface.
