SWITCHBOARD Catalogue

Main switchboards are not only recognized as useful means of power source protection but also highlighted as central means for controlling power.
Specializing in the manufacture of marine electrical equipment, KTE has so far developed various products adapted for the users’ needs on the basis of our long year expertise and the latest technology.

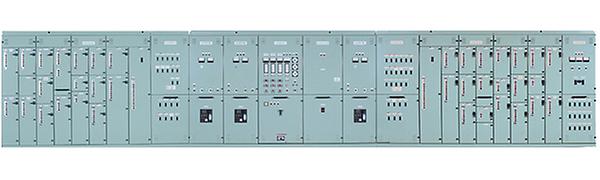

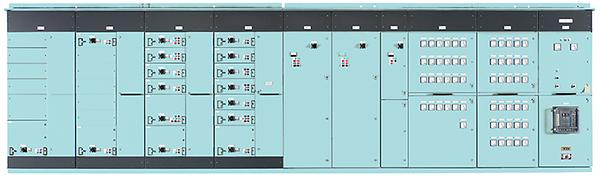

We would like to introduce our trusted marine use switchboards, which meet the rules and regulations of the classification societies of various countries such as ABS, BV, CCS, DNV, GL, LR, NK and KR.

Features

Long life span and reliability
KTE Low Voltage switchboards are adaptable to all possible ship conditions as the most reliable components have been chosen on the basis of over 36 year accumulated experiences.
Excellent anti-corrosive coating, baked melamine finish and orderly device arrangement make the switchboards more reliable.
Best suited arrangement
Almost all type of Low Voltage switchboards have already been delivered in large quantities. Which means that system satisfies various user requirements and are ready for immediate applications. and the results of many tank tests enabled outstanding progress in low noise and reduction in vibration.
Rigid construction and safety
The switchboards are sufficiently drip-proof and durable against vibration, moisture, heat and shock.
From design stage of the products, KTE thoroughly reflects all the safety rules and regulations of international standards and classification societies to the switchboards.
Rules and regulations
KTE has acquired Type Approval Certificate for Low Voltage Switchgear system from Germanischer Lloyd.
KTE maritime switchboards also meet the rules and regulations of the classification societies of various countries and industial standards.

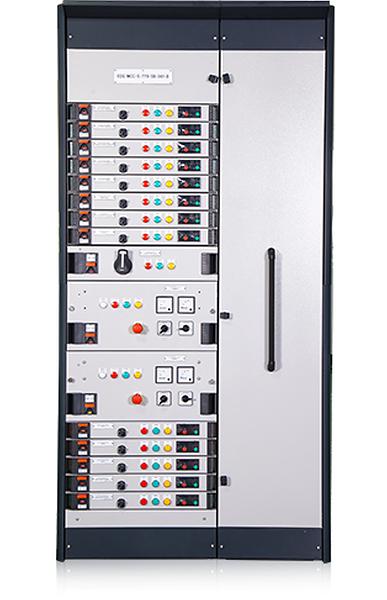

KMCC-80A Switchboard & MCC Overview

KMCC-80A is a withdrawable low voltage switchboard up to 5000A in accordance with IEC 61439-1 standards.
The system provides motor control and power distribution functionality. KMCC-80A is a compact, flexible and reliable Low Voltage solution for applications where the supply of energy is vital for your business process. In line with form 3b and 4b, the withdrawable units can be exchanged without having to disconnect power and/or control cabling.
