1. Introduction

WCDMA/LTE Dual Band Home Repeater is a reapeter to enhance signal strength for small and medium sized shadow areas such as buildings. Due to its Auto Gain Control and Isolation check function, easy installation is possible without test equipment or a technician. This product can automatically shut down when it detects an isolation problem.

Additionally, Dual Band Home Repeater can be simply connected to a PC through its mini-USB port, and dedicated GUI software is provided. Service antenna can possibly be extended with extra cable. Customers can enjoy enhanced dual-band coverage at the lowest price.

Dualband Home Repeater" has followings key features & performances:

•   Supports LTE 1800 & WCDMA 1800 Standards Simultaneously

•   60dB Gain, +10dBm Output / Band

•   External Donor Antenna & Built-in Service Antenna

•   Easy Installation by Built-in AGC, Isolation Check & Auto Shutdown feature

•   Uplink Sleep Mode reduce the BTS Noise Floor

•   Divided External Service Antenna Port (Optional)

•   Fancy Cosmetic Design Fit with Clean Home Interior

2. Applications

1) Small & Medium Office Buildings

2) Shopping Centers

3) Parking Lots

4) SOHO

5) Home

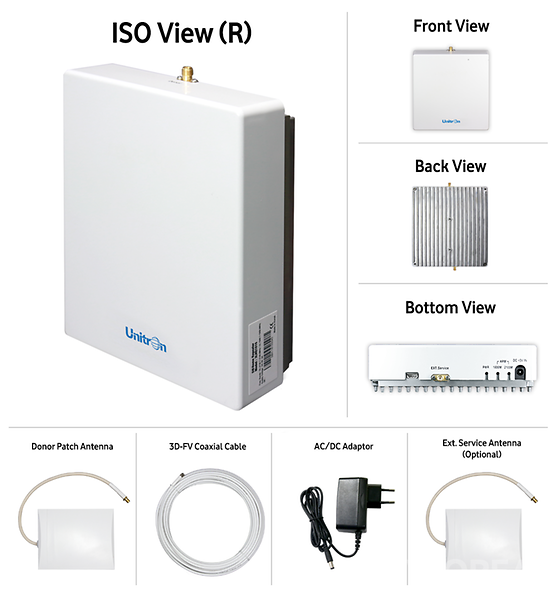

3. Kit consist of:

1) DB Repeater with Wall Mount Bracket

2) Donor Patch Antenna

3) 3D-FV Coaxial Cable 10m

4) AC/DC Adaptor

5) External Service Antenna (Optional)
