Detailed Description

■ Description

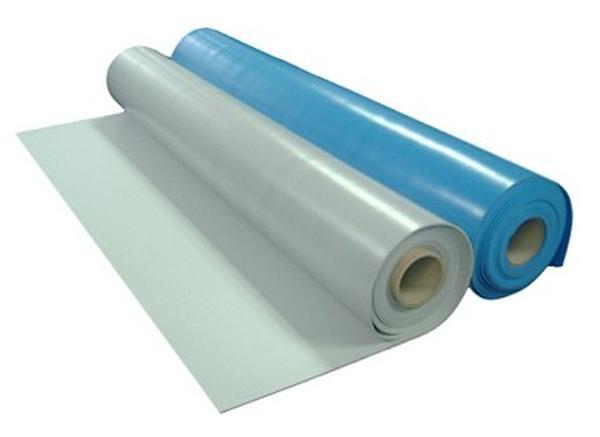

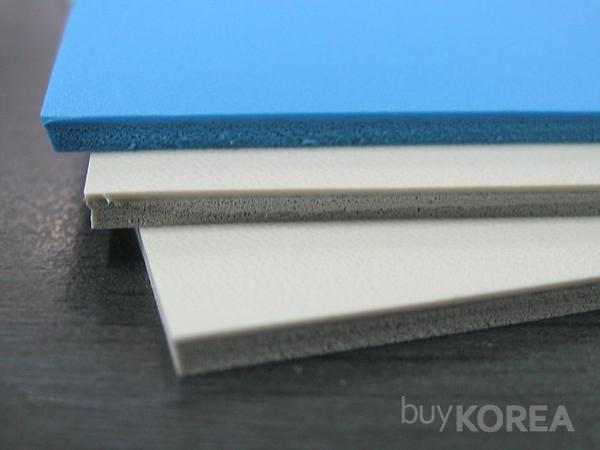

This made up of three layer vinyl material mat provides outstanding electrical and physical properties. The top layer, sleek and sturdy surface, makes the worker easy to handle various sizes of components and easy to keep clean, also have good static-dissipative property. The middle layer that is highly conductive provides a faster discharge path to ground. And the cushioned dissipative bottom layer provides excellent protection against physical damage.

■ Specification
Construction	Heat fused vinyl composite
Thickness	0.125" (3mm)
Texture	Smooth embossed surface
Hardness	45 shore "A", per ASTM-D 412
Heat Resistance	-20F to 140F continuous
Chemical Resistance	Resistance to degradation by inorganic acids,
	organic acids, reducing agents, aliphatic hydrocarbons,
	mineral oil, aldehydes, and amines

■ Features and Benefits

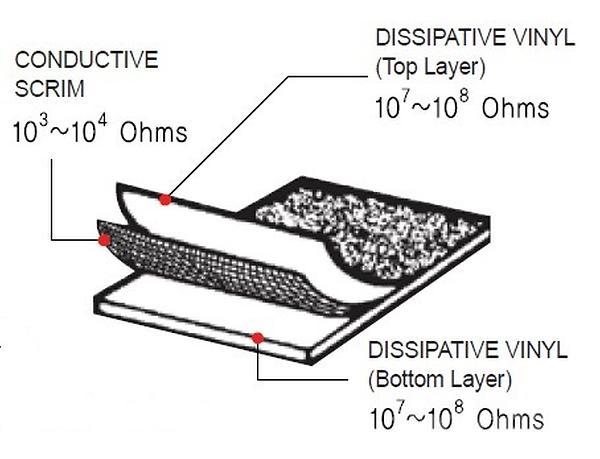

● Heat fused vinyl composite with top and bottom dissipative vinyl layers / conductive grid mesh inner layer
Resists delamination ; reduces unintended alternative ground paths.
Compatible for use with continuous monitors.
Meets ESD worksurface requirements of ASTMN F-150.

● Conductive grid mesh inner layer
Provides consistent, reliable and defined grounding path, compatible with continuous monitors.

● Static dissipative cushioned vinyl bottom layer
Provides energy absorption components susceptible to physical shock like disk drives

● Abrasion resistant top layer
Smooth surface is easy to clean and maintain.

● Non-humidity dependence
Provides consistent electrical performance regardless of ambient humidity.

● Dimensionally stable
Minimal shrinkage and curling
