Tinned annealed stranded copper, Semi-rigid PVC,AL Mylar-025

Request For Quotation

KRMTU Core Cable 8C x 18 AWG(0.75SQ)
1r quantity : 300m

Certification

Award

Shipping

Payment: 140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More

Detailed Description

Detailed Specifications&Technical Data

product name: KRMTU Core Cable 8C x18 AWG(0.75SQ)

Rapid Moving Cable for Industrial Robot and High Speed Cable Veyor

◀ Application

1. It is an internal wiring cable for industrial robots and is used for signal transmission to heavy moving parts and high speed cable bearings.

2.Cable for torsion and bending of industrial robots, used for arm internal wiring or high speed cable bear

◀ Quallty

1.Superior flexibility and flexibility using ultra-fine conductors and special insulation materials

2.Teflon with low coefficient of friction is used for insulation and it is excellent in reliability for long time operation

3. It has low hardenability to heat and is very strong against physical collision due to high elasticity of insulator.

4.Special urethane (TPU) is applied to the shise sieve, and it is excellent in cold resistance, oil resistance and abrasion resistance.

5.It has excellent bending property by applying special machining method based on the examination of the hardness.

6.The maximum lifetime was realized by varying the method of superfine conductor twisted wire configuration.

◀ Certlflcatlon Summary

Item	characterlstlc	Servlce Data of allowable current [A]-1C 2W
Operating Voltage	300[V]	DIP:3V	40[˚]	50[˚]	60[˚]	70[˚]
Operating Tempereature	-40[˚]~+105[˚]	2m	9.5	9.5	9.5	9.5
Flame retardance	UL VW-1,CSA FT2 PASS	5m	9.5	9.5	9.5	7.1
test voltage	3000[V/minute]	10m	7.1	6.1	5.0	3.5
Min,bending radius	92mm fixed installation 8mm	20m	3.5	3.0	2.5	1.8

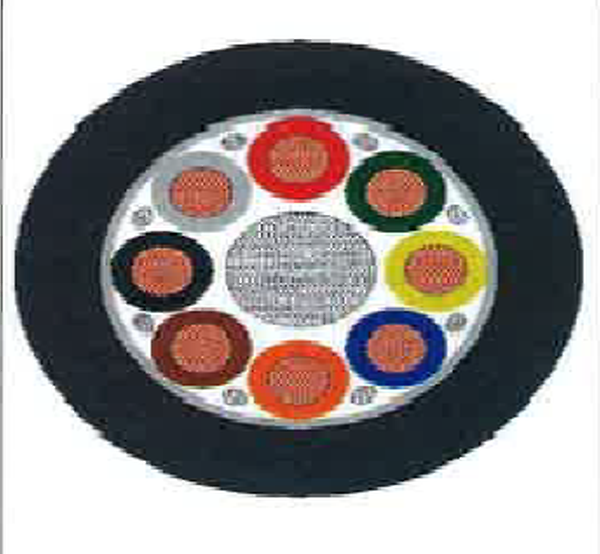

◀ Product features

▣COnductor - Tinned annealed strnd copper

▣Insulation - Fluorinated Ethylene Propylene [FEP]

▣Inner Shield EPTFE_100

▣Sheath - Thermoplastic Poly Urethane [TPU]
