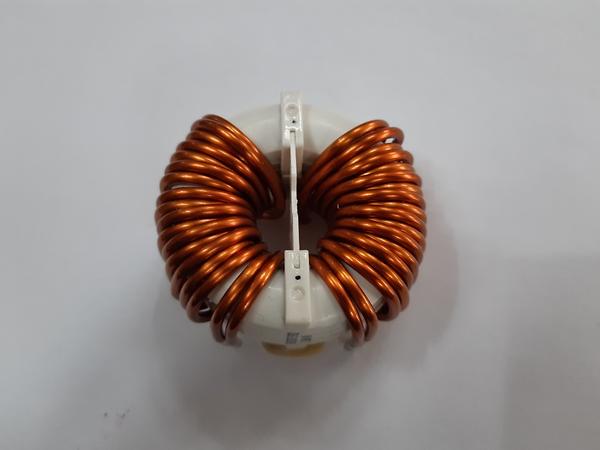

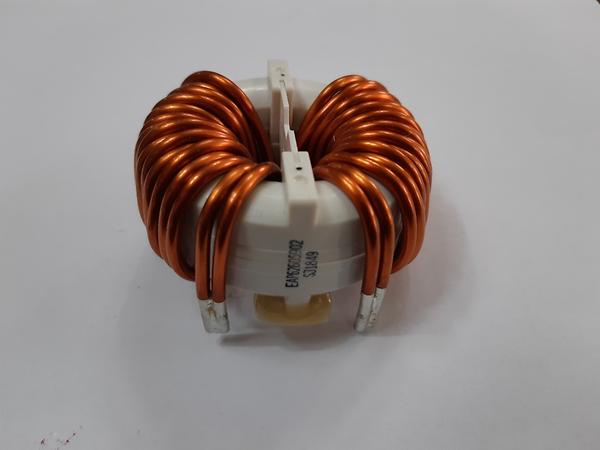

FERRITE, OR49, LINE FILTER, Common Mode Choke
Request For Quotation
LINE Filter is the part used to pass the signal current and remove the COMMON MODE noise. Generally used to improve EMI of high-speed digital interfaces.
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
Detailed Description
LINE Filter is the part used to pass the signal current and remove the COMMON MODE noise. Generally used to improve EMI of high-speed digital interfaces such as USB and HDMI.
|
CLOSURE |
TERMINAL |
ELECTRICAL CHARACTERISTICS |
TOLERANCE |
CONDITION |
||
|
START |
FINISH |
|||||
|
INDUCTANCE |
1 |
2 |
1.3 |
mH |
+50%,-12% |
HP-4284A LCR-METER at 16 KHz, 1.0 Vrms |
|
4 |
3 |
1.3 |
mH |
+50%,-12% |
||
|
DIFFERENCE INDUCTANCE |
L1 |
L2 |
0.5 |
mH |
MAX |
|
|
DC RESISTANCE |
1 |
2 |
0.01 |
Ω |
MAX |
DC MILLI- OHM METER GOM-802 |
|
4 |
3 |
0.01 |
Ω |
MAX |
||
