GAP Panel

[Product Description]

GAPn

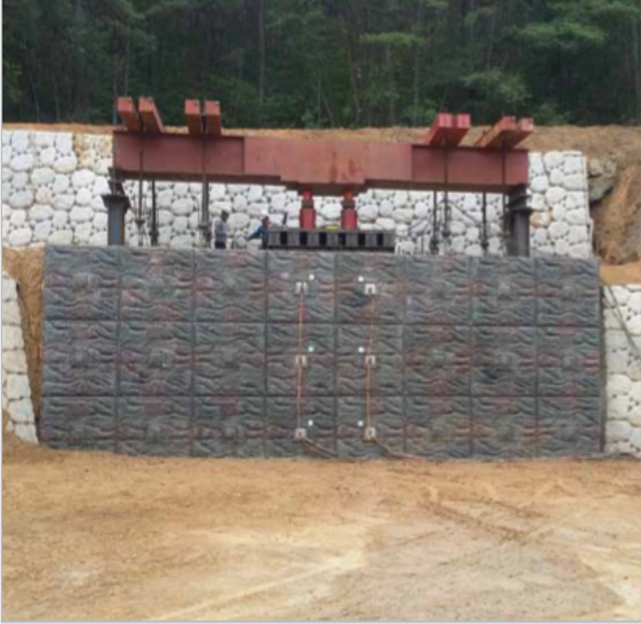

• The GAPn (Ground Adhered Panel-nail type) is a precast concrete panel used for cutting-slope retaining wall adhered to In-situ ground.

• It is a structure that can rotate between panels, and made lightweight by optimizing panel thickness.

Field of application

• In the form of directly attaching the panels to the in-situ ground, minimize environmental damage due to reduction of earth-volume.

• Simplification of construction and integration of panel and In-situ ground improve stability of slope.

• Excellent view due to applying natural rock type panel.

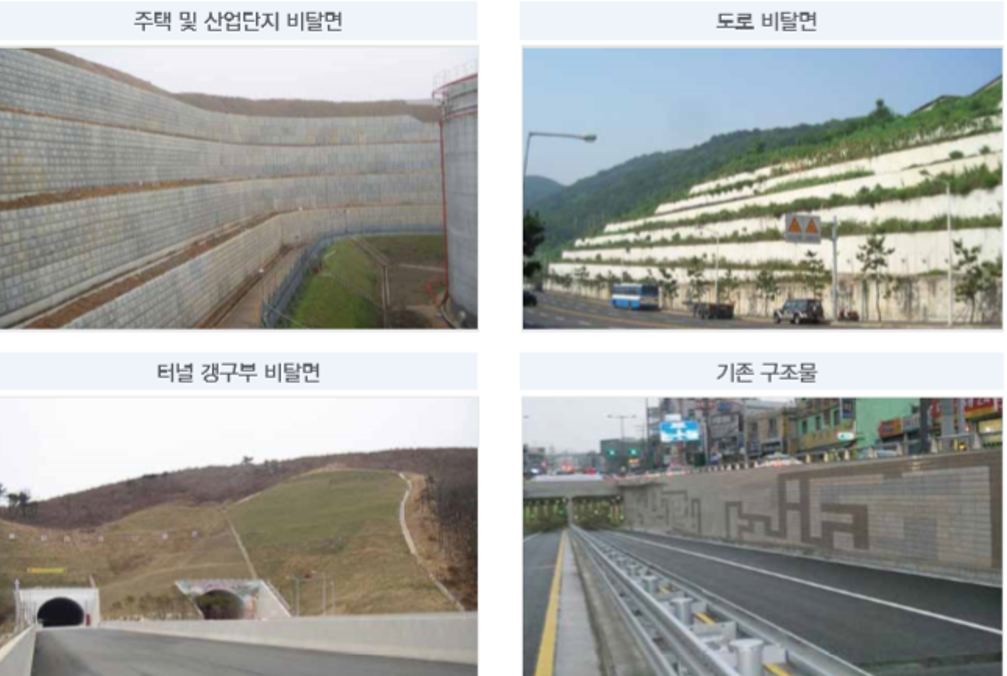

• It is applicable to the cut-off part retaining wall construction method which requires efficient use of land due to the limitation of the ground boundary while minimizing damage to the natural environment during construction of industrial complexes, roads, tunnels, etc.

• Standard : 1500mm×1200mm×139mm

• Weight : 460kg

• Rotate angle between panels: Front 30° ~ Rear 41°

• Front pattern : Natural rock type

• Construction method : In the form of directly attaching the panels to the in-situ ground
