Detailed Description
DGM PM 5.0 Series
- Small size and high power
- Choose metal gear or mold gear inside assembly
- Insulation level B
- Include “Clutch”
- Special Type is possible
■ Specification (Geared Motor)
|
Model |
Rated Voltage [VDC] |
Gear Ratio |
No Load |
Stall Torque [Kgf.cm] |
Detent Torque [Kgf.cm] |
Rotation |
Environment |
|
|
Speed [rpm] |
Current [mA] |
|||||||
|
DGM-PM(5.0) |
5.0 |
222:1 |
52.6 |
120 (Max) |
4.5 (Min) |
2.0 (Max) |
CW/CCW |
-20℃~50℃ |
- The above specification written by 11670rpm standard, We have manufactured them according to the rated 12000rpm.
- Only when impressing, the product transmit power because of including clutch.
- Furthermore, It is possible to change specification by user request.

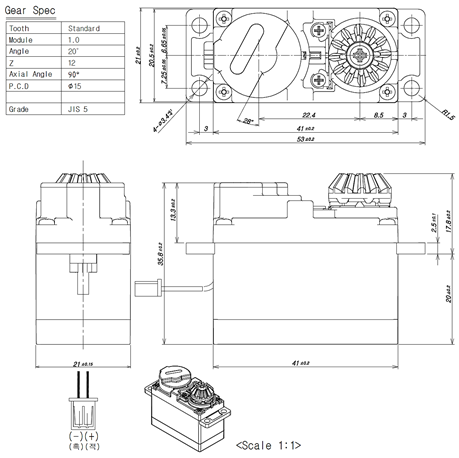

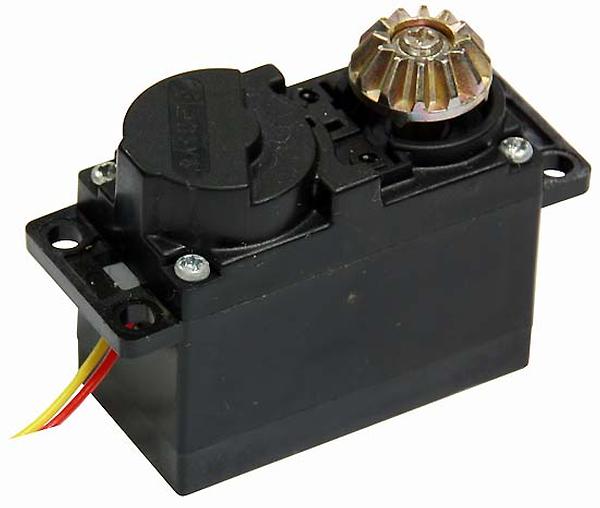

■ Gear Type “A”

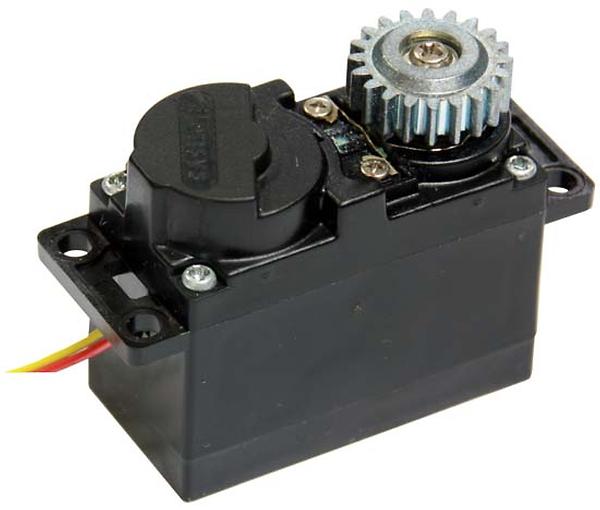

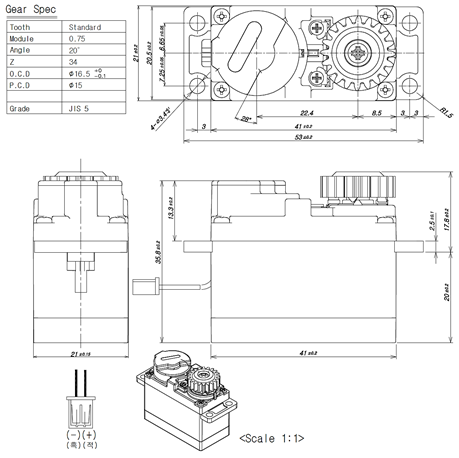

■ Gear Type “B”
